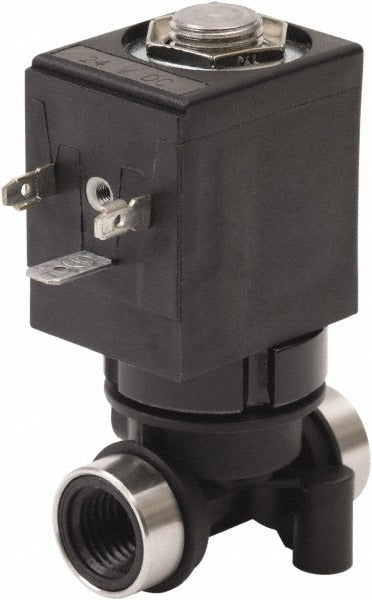

Spartan Scientific 6200-050-AAC7C Solenoid Valve 3/8 in

Product Description

The SPARTAN SCIENTIFIC 6200-050-AAC7C is a 2-way, 2-position normally closed solenoid valve designed for fluid control applications in HVAC, plumbing, and industrial process systems. The valve body is constructed from glass filled nylon with a Viton seal, making it suitable for use with a range of compatible media. It operates on 120 volts AC and features a DIN spade connector with coil, allowing straightforward electrical hookup in panel or field-wired installations. With a maximum working pressure of 250 psi and a Cv factor of 0.315, this valve is well matched for moderate-flow control tasks requiring reliable on/off switching.

This solenoid valve is suited for residential and light commercial applications where automated fluid shutoff or flow control is required. Typical installations include HVAC condensate management, water treatment, and process piping where a normally closed, electrically actuated valve is specified. The 3/8 inch port size accommodates standard small-bore piping and tubing configurations common in these system types. Licensed plumbers, HVAC technicians, and industrial maintenance professionals are the primary installers of this valve type.

Key Features

• 2-way, 2-position normally closed configuration — valve closes automatically when de-energized
• 3/8 inch port size for standard small-bore piping connections
• 120 volt AC operation with DIN spade with connector coil type
• Glass filled nylon body provides lightweight corrosion resistance
• Viton seal material for compatibility with a broad range of fluids
• Maximum working pressure of 250 psi with a Cv factor of 0.315
• No manual override — electrical actuation only

Compatibility

Designed as an OEM-style replacement or direct-install solenoid valve for systems requiring a 3/8 inch port, normally closed, 120 volt AC, 2-way valve with a DIN spade coil connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes, including IPC and IFGC requirements where relevant. Shut off fluid supply and de-energize the circuit before beginning installation or service. Verify that the media, pressure, and temperature conditions of the system fall within the valve's rated specifications before placing the valve in service. No manual override is present on this valve, so an alternate isolation method should be in place before cutting power during servicing.
