Spacepak AC-TKFS-5 Plenum Take-off Kit 2-5 Ton Wcsp-j

Product Description

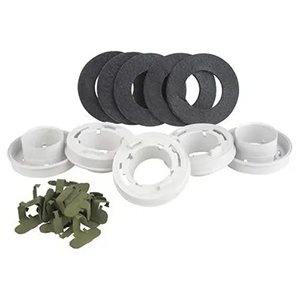

The SPACEPAK AC-TKFS-5 is a plenum take-off kit designed for use with central hydronic coil and fan coil unit installations. Sold in a pack of five assemblies, this kit provides the transition connections needed to route conditioned air from the plenum into the distribution system. It is sized to serve 2 to 5 ton fan coil units, making it a practical component for residential and light commercial hydronic air systems. Licensed HVAC technicians performing hydronic fan coil installations will find this kit supports proper airflow takeoff geometry from the plenum body to the supply runs.

This kit is specifically used with the SPACEPAK WCSP-J Central Hydronic Coil and compatible 2 to 5 ton fan coil units. It is appropriate for hydronic forced-air systems where chilled or heated water circulates through a coil and a blower distributes conditioned air through a plenum and duct network. Typical installations include residential whole-home hydronic systems and small commercial applications requiring multiple supply takeoffs from a central air handler plenum.

Key Features

• Five plenum take-off assemblies included per pack
• Designed for 2 to 5 ton fan coil unit capacity range
• Compatible with SPACEPAK WCSP-J Central Hydronic Coil
• Supports proper airflow distribution from plenum to supply ductwork
• OEM-matched geometry for consistent fitment on designated fan coil units

Compatibility

Designed for use with the SPACEPAK WCSP-J Central Hydronic Coil and 2 to 5 ton fan coil units as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with hydronic air handling systems. Shut down the air handler and isolate the hydronic loop before beginning plenum work. Verify that each take-off assembly is fully seated and sealed to prevent air bypass. Follow local mechanical codes and manufacturer installation instructions for proper placement and fastening.

Technical Specifications

• Item Type: Plenum Take-Off Kit
• Compatible Unit: Central Hydronic Coil, 2 to 5 Ton Fan Coil Unit
• Compatible Model: WCSP-J
• Quantity per Pack: 5

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: AC-TKFS-5
