Spacepak ac-iklt-5 Air Distribution Installation Kit

Product Description

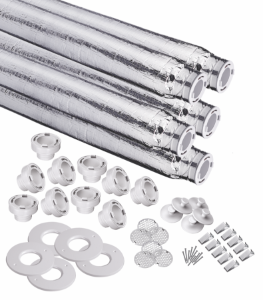

The SPACEPAK ac-iklt-5 is an air distribution installation kit designed for high-velocity HVAC systems. It contains the hardware needed to complete five outlet connections in a SpacePak air distribution assembly. The kit ships with sound-attenuating tubes, kwik connect fittings, balancing orifice sets, terminator plates, and winter supply air shut-offs. Licensed HVAC technicians working on high-velocity small-duct systems will find all five-outlet connection components consolidated in one package, reducing job-site sourcing time and ensuring component compatibility across the outlet assembly.

This kit is intended for use in residential and light commercial high-velocity, small-duct central air systems. It supports new installations and retrofit applications where five outlet connections are being completed simultaneously. The balancing orifice sets included cover 15 percent, 35 percent, and 50 percent flow rates, allowing the technician to tune airflow at each outlet to match the design load for each conditioned space. Winter supply air shut-offs are included to allow seasonal closure of individual outlets when needed.

Key Features

• Covers five complete outlet connections in a single kit
• Sound-attenuating tubes with kwik connects reduce noise transmission at each outlet
• Three-rate balancing orifice sets (15 percent, 35 percent, 50 percent) allow precise airflow balancing per outlet
• Terminator plates include clips and screws for secure, finished installation
• Winter supply air shut-offs enable seasonal outlet closure without system modification
• Consolidates matched components to ensure fitment consistency across all five outlets

Compatibility

Designed as an OEM-style installation kit for SPACEPAK high-velocity, small-duct air distribution systems requiring five outlet connections.

Installation Notes

Installation should be performed by a qualified HVAC technician familiar with high-velocity small-duct system design and airflow balancing procedures. Power down the air handler and confirm the system is de-energized before making any duct or outlet connections. Balancing orifices must be selected based on the system design specifications for each outlet zone — do not select orifice size by guesswork. Follow the manufacturer installation instructions and applicable mechanical codes for duct termination and outlet placement.

Technical Specifications

• Outlet Quantity: 5
• Sound-Attenuating Tubes: 5
• Kwik Connects: 10
• Balancing Orifice Sets: 2 sets per kit (15 percent, 35 percent, 50 percent flow rates)
• Terminator Plates: 5 (with clips and screws)
• Winter Supply Air Shut-offs: 5

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: ac-iklt-5
