Spacepak ac-iklt-2 Installation Kit 2 Outlets

Product Description

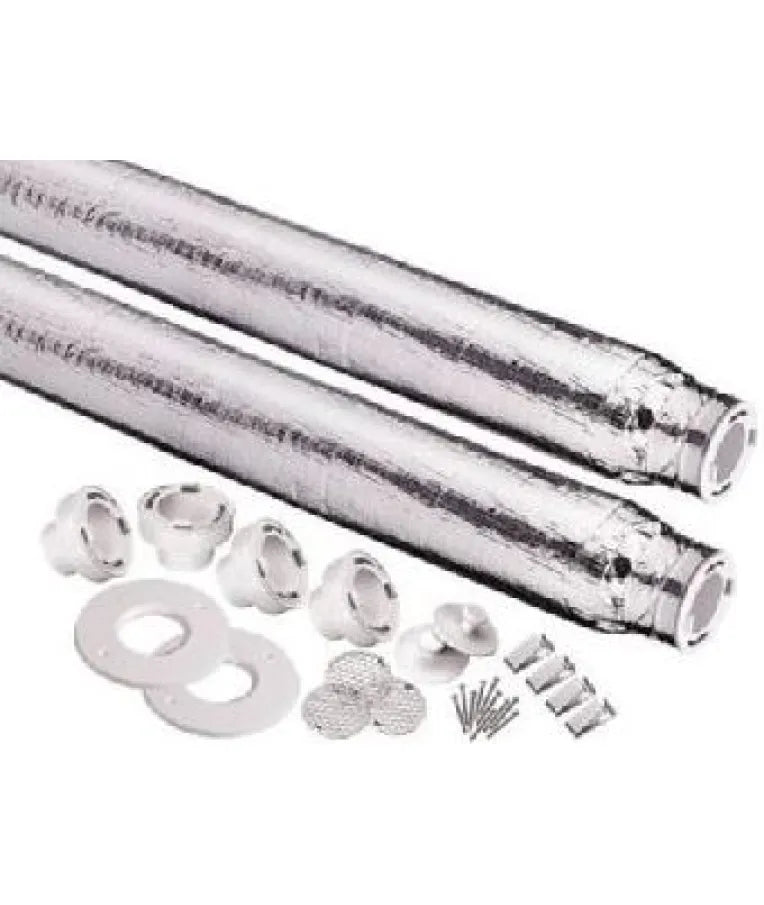

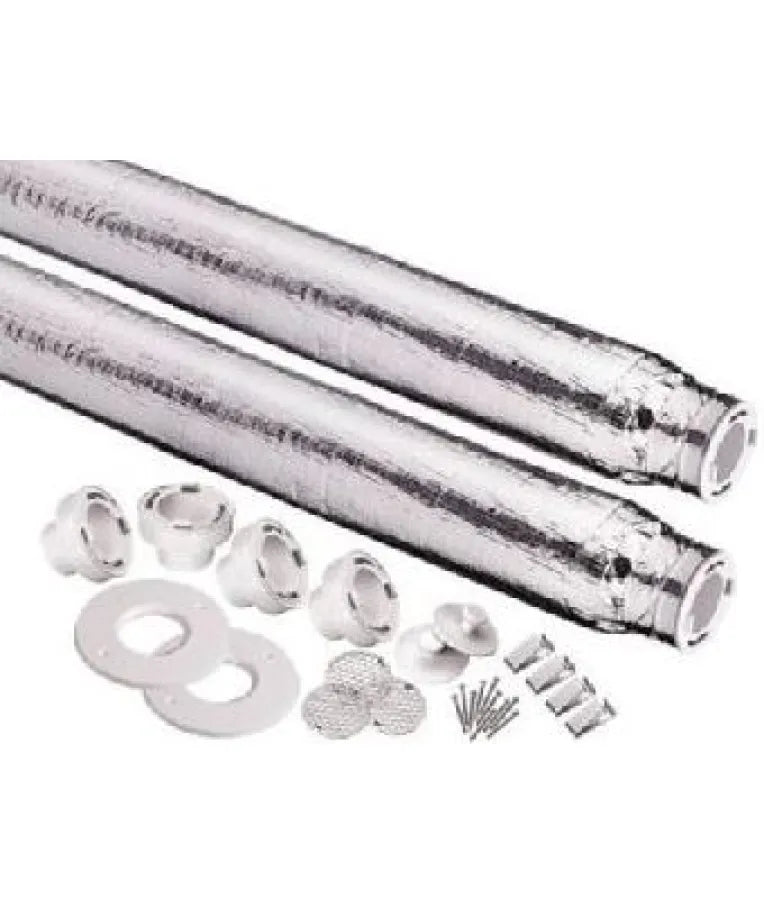

The SPACEPAK ac-iklt-2 is a 2-outlet installation kit designed for high-velocity mini-duct air distribution systems. The kit supplies the hardware needed to connect supply air outlets to a SPACEPAK plenum, including sound attenuating tubes with Kwik Connects for low-noise delivery, terminator plates with mounting hardware, winter supply air shut-offs, and a balancing orifice set for airflow tuning. Licensed HVAC technicians typically install this kit during new system commissioning or when adding outlet runs to an existing high-velocity system. All components ship together to simplify staging on the job site.

This installation kit is intended for use with SPACEPAK high-velocity air distribution systems across all duct system types. The 2-outlet configuration suits residential or light commercial applications where two supply points are being added or replaced. The included balancing orifices allow the technician to set airflow at 15 percent, 35 percent, or 50 percent to match the system design. Winter shut-offs allow individual outlets to be closed during the heating season when cooling supply is not needed, maintaining system balance without removing components.

Key Features

• 2-outlet kit covers both supply connections in a single package
• Sound attenuating tubes with Kwik Connects reduce airborne noise at the outlet
• Balancing orifice set includes 15 percent, 35 percent, and 50 percent orifices for precise airflow adjustment
• Terminator plates ship with clips and screws for complete installation without sourcing additional hardware
• Winter supply air shut-offs allow individual outlet closure during the heating season
• Compatible with all duct system types within the SPACEPAK SZSP series

Compatibility

Designed for use with SPACEPAK SZSP series high-velocity air distribution systems and compatible with all duct system types as stated by the manufacturer.

Installation Notes

This kit is installed by a licensed HVAC technician as part of a SPACEPAK high-velocity system outlet rough-in or retrofit. De-energize the air handler and close the supply plenum before connecting or disconnecting any outlet tubing. Verify airflow balance using the supplied orifices per the system design specifications before finalizing the installation. Follow all applicable mechanical codes for duct connection and outlet placement.

Technical Specifications

• Number of Outlets: 2
• Balancing Orifice Options: 15 percent, 35 percent, 50 percent
• Compatible Duct System Types: All
• Country of Origin: United States

Standard Information

• Brand: SPACEPAK
• Manufacturer Part Number: ac-iklt-2
