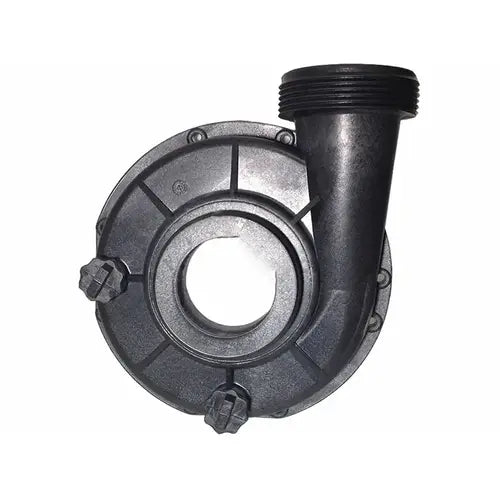

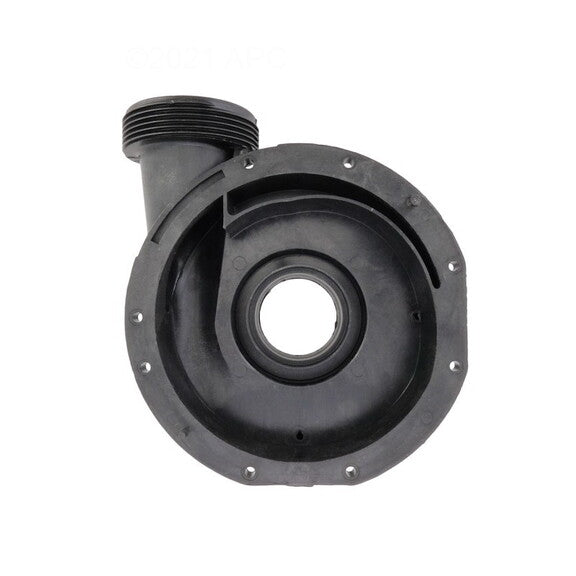

SPA PARTS SD6500-288 Sundance Spas Theramax 2.5 HP Pump Front Housing with Dual Drain Plugs

Product Description

The SPA PARTS SD6500-288 is a front housing for Theramax pumps in Sundance and Jacuzzi spas. This housing is made from durable plastic and is designed for compatibility with TheraFlo and TheraMax pump models. The unit includes a two-inch male buttress thread (mbt) for both the suction and discharge connections. Mounting the volute to the seal plate is achieved using eight screws. It is suitable for pumps rated at 2.5 HP and comes equipped with dual drain plugs for added convenience.

• Designed for use with Theramax pumps.
• Features two-inch male buttress thread (mbt) connections for both suction and discharge.
• Compatible with Sundance and Jacuzzi spas.

Product Highlights

Product Information

Standard Information

• Brand: SPA PARTS
• For Use With: Theramax pumps

Technical Specifications

• Material Type: Plastic
• Model: TheraFlo, TheraMax
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2 inches
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2 inches
• Volute to Seal Plate Mounting Type: 8 screws
• Volute With Seal: No
• Spa Brands: Sundance, Jacuzzi
• Alternate Part Numbers: SD6500-288
• HP: 2.5 HP
• Item: Front housing with drain Plug
