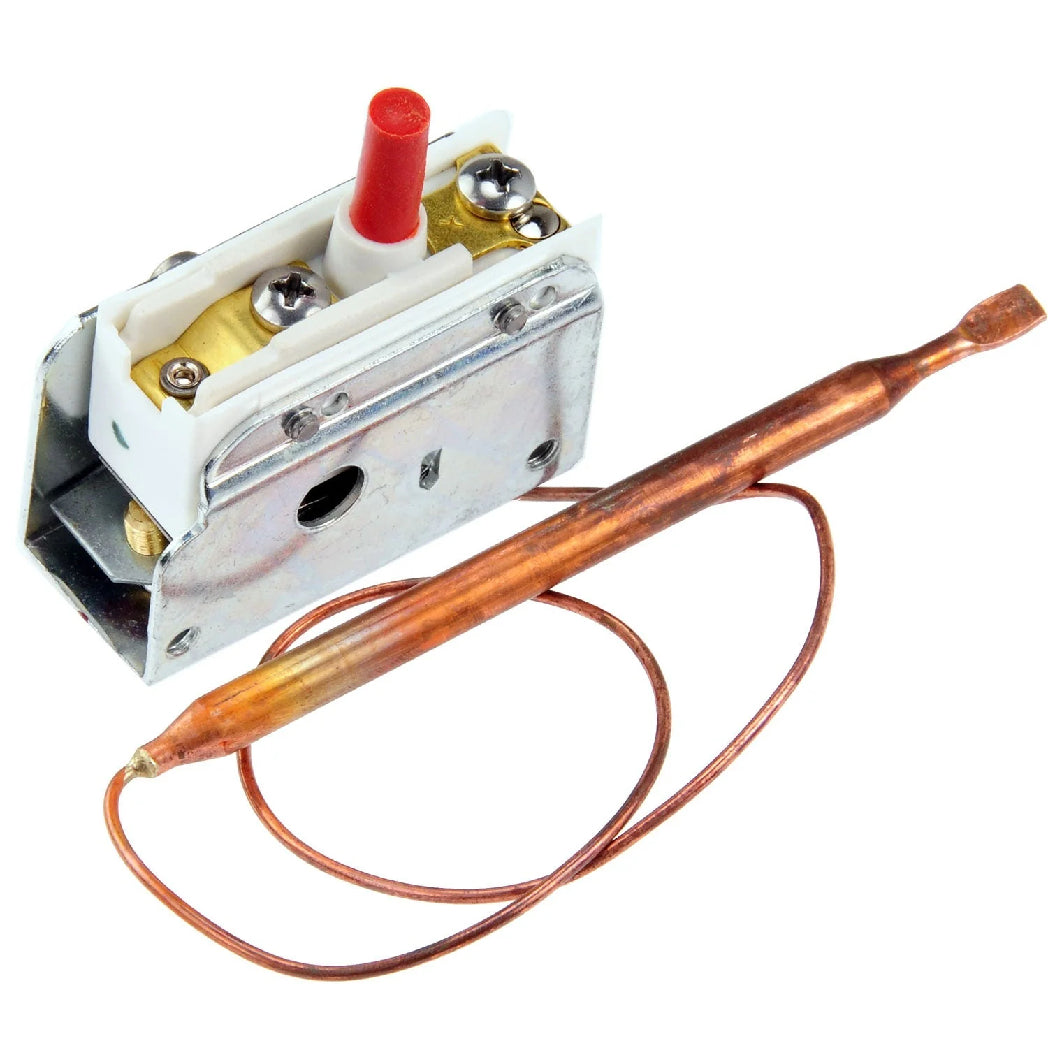

SPA PARTS 275-2662-00 High Limit Switch

Product Description

The SPA PARTS 275-2662-00 is a high limit switch designed for use in spa pools, hot tubs, and swimming pools. This device operates as a single pole single throw (SPST) thermostat and features two terminals for easy connection. It has a manual reset functionality for enhanced safety. The switch includes a bulb that has a diameter of 0.25 inches and a length of 3.70 inches, connected via a twelve-inch capillary tube. It manages temperatures up to 121 degrees Fahrenheit and supports an amperage of 25 Amps. This product is compatible with equipment from Eaton.

• Features a bulb diameter of 0.25 inches and a twelve-inch capillary tube.
• Functions as a SPST thermostat with a maximum amperage of 25 Amps.
• Designed specifically for spa pools, hot tubs, and swimming pools, ensuring safe temperature control.

Product Highlights

This high limit switch is essential for maintaining safe operating conditions in various water heating systems.

Product Information

Standard Information

• Part Number: 275-2662-00
• Brand: SPA PARTS

Technical Specifications

• Bulb Length: 3.70 inches
• Bulb Diameter: 0.25 inches
• Capillary Tube Length: 12 inches
• Terminals: SPST 2-terminals
• Max Temperature: 121 degrees Fahrenheit
• Dimensions: 4 inches L x 4 inches W x 2 inches D
• Weight: 0.24 lbs
• Amperage Rating: 25 Amps
• Warranty: 1 Year
