Spa Electrics T1 L12 R1 GMP Retro T1 universal retrofit light 8W (1.5 inches thread) T1 L12 R1 WMP

Product Description

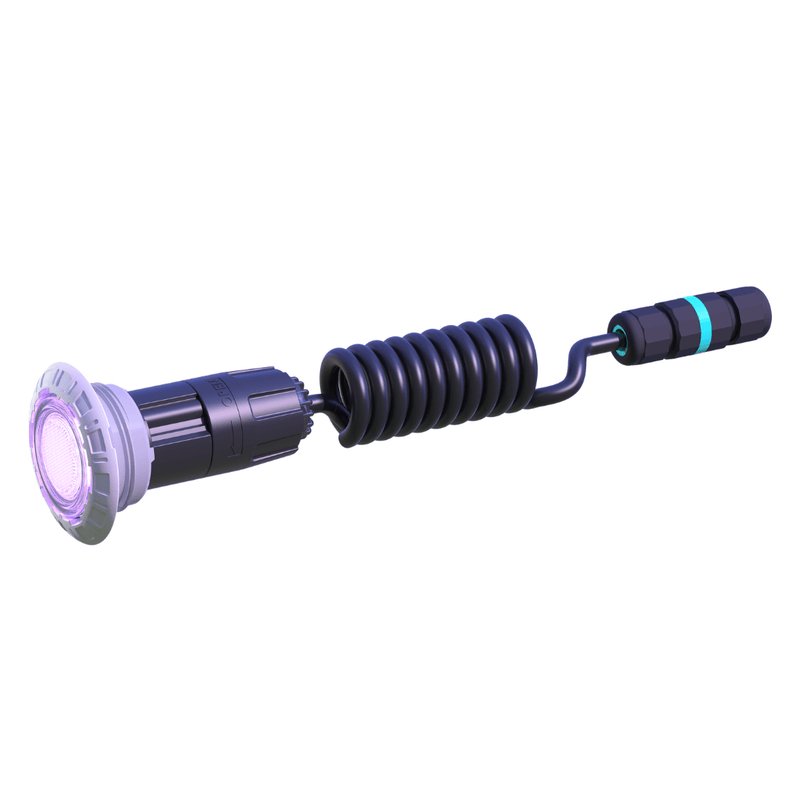

Spa Electrics T1 L12 R1 GMP is a retrofit LED niche light for 1.5-inch threaded pool and spa fittings. It uses a ceramic LED light engine (Multi Plus color option) and consumes 8 W at 10.5–13 V AC. The kit includes small concrete and large vinyl/fiberglass rims, a 1.5-inch thread, and a 0.5 ft cable with joiner. The fixture is IPX8 rated, wall-switch operable, and compatible with major pool controllers.

• Ceramic LED light engine (Multi Plus color option); 8 W power consumption; 10.5–13 V AC input

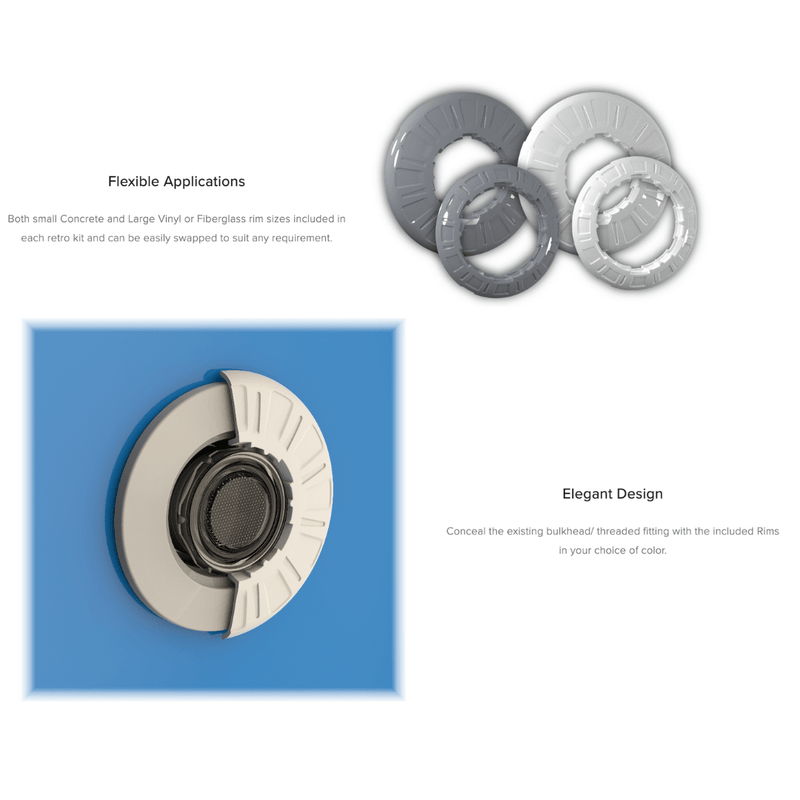

• Includes small concrete and large vinyl/fiberglass rims, 1.5" thread and 0.5 ft cable with joiner
• IPX8 rated for submerged use; wall-switch operation; compatible with major pool controllers (Hayward Omnilogic, Pentair IntelliTouch/EasyTouch, Zodiac/Jandy RS, Zodiac TRi, Spa Electrics LiT YARD 2)

Product Highlights

Retrofit LED light for 1.5-inch threaded fittings; requires 12V AC UL-listed transformer (LVX Series recommended); operating temperature 41 F to 104 F.

Product Information

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: T1 L12 R1 GMP

Technical Specifications

• Brand: Spa Electrics
• MPN: T1 L12 R1 GMP
• Light Source: Ceramic LED light engine (Multi Plus color option)
• Power Consumption: 8 W
• Input Voltage: 10.5 - 13 V AC
• IP Rating: IPX8
• Installation Types: Concrete, fiberglass, and vinyl
• Operation: Wall-switch operation
• Compatibility: Spa Electrics LiT YARD 2; Hayward Omnilogic; Pentair IntelliTouch/EasyTouch; Zodiac/Jandy RS (REV R - Current); Zodiac TRi
• Ambient Operating Temperature: 41 F to 104 F
• Transformer Requirement: Requires 12V AC UL-listed transformer (LVX Series recommended)
• Kit Contents: RETRO T1 Multi Plus DB light, 2x rims (small concrete and large vinyl/fiberglass), 1.5" thread, 0.5 ft cable with joiner
• Available Trims: White or Gray
• Thread Size: 1.5 inch
• Cable Length: 0.5 ft
