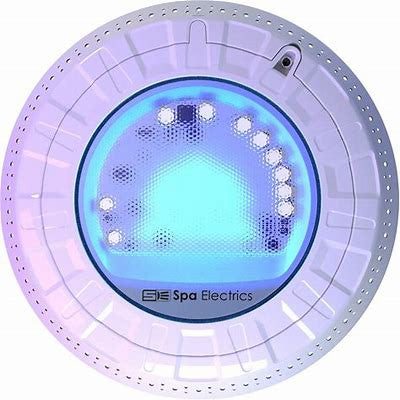

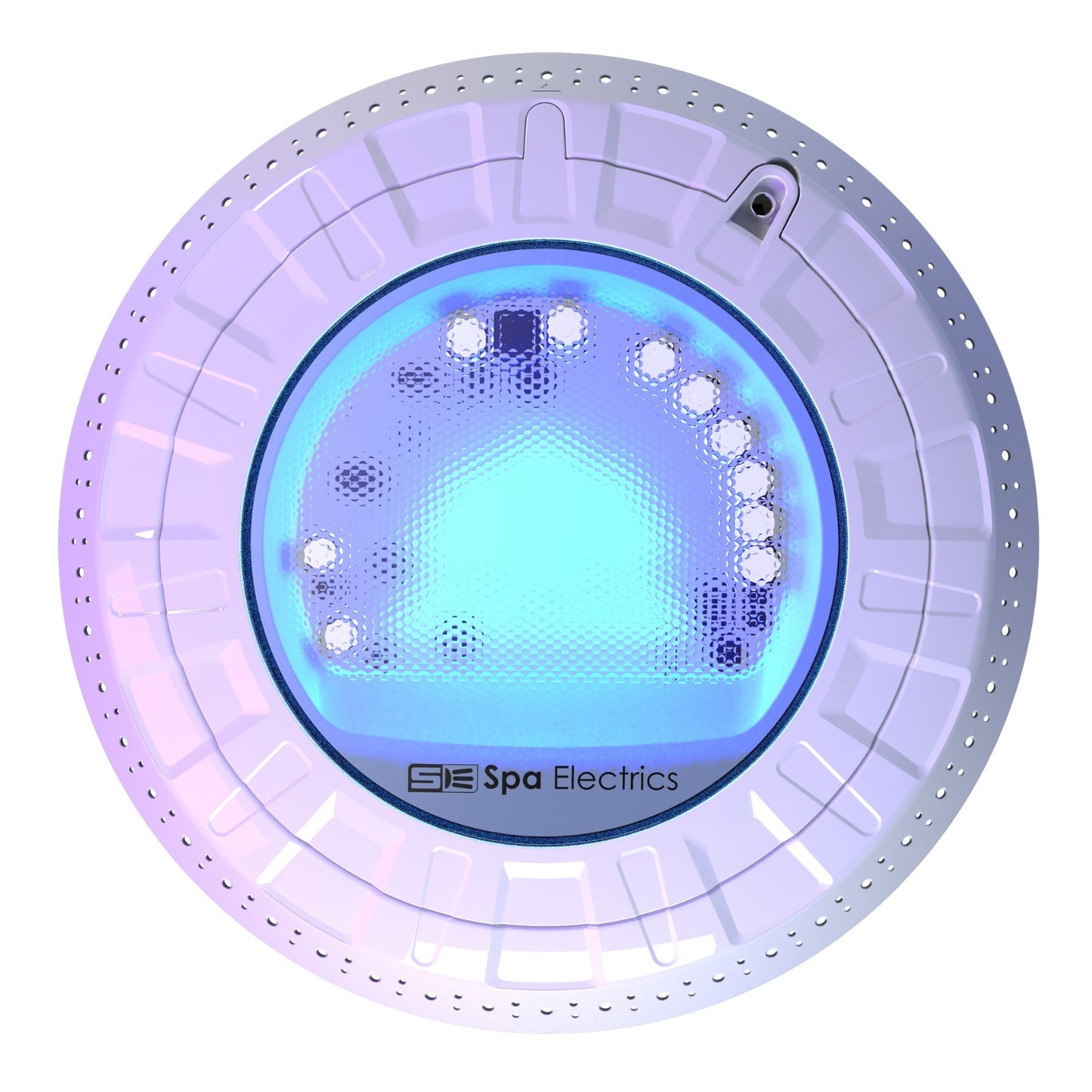

Spa Electrics R8C L12 R1 WW4 Retro 8 LED Retrofit Kit 45W (8-inch) R8C L12 R1 WW4

Product Description

Spa Electrics R8C L12 R1 WW4 is a retrofit LED kit that supplies a 45W LED module for 8-inch underwater pool niches and includes an 8-inch niche adapter, plug seal assembly kit, and trim ring. The module operates at 10.5�13V AC, produces about 3200 lumens at 4000K, and carries an IPX8 ingress protection rating. It is intended for large-format 8-inch concrete niches (ID 7.4�8.1 in).

• 45W LED module, input voltage 10.5�13 V AC, approximately 3200 lumens, 4000 K color temperature
• Includes 8-inch niche adapter, plug seal assembly kit, and trim ring; fits 8-inch concrete niches (ID 7.4�8.1 in)
• IPX8 waterproof rating, UL listed quick-connect plug, CAM-LOCK universal adaptor and external heat-sink/water-cooled design

Product Highlights

8-inch retrofit LED kit, 45 W, ~3200 lm, 10.5�13 V AC, IPX8 ingress protection

Product Information

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: R8C L12 R1 WW4
• Country of Origin: Australia

Technical Specifications

• Brand: Spa Electrics
• MPN: R8C L12 R1 WW4
• Product Name: Retro 8 LED retrofit kit
• Input Voltage: 10.5�13 V AC
• Wattage: 45 W
• Lumens: 3200 lm (approx.)
• Color Temperature: 4000 K (also available: 3000 K, Blue, Multi Plus RGB+W)
• Light Source: Ceramic Light Engine (LED)
• Ingress Protection: IPX8
• Suitable For: 8-inch concrete niches (ID 7.4�8.1 in)

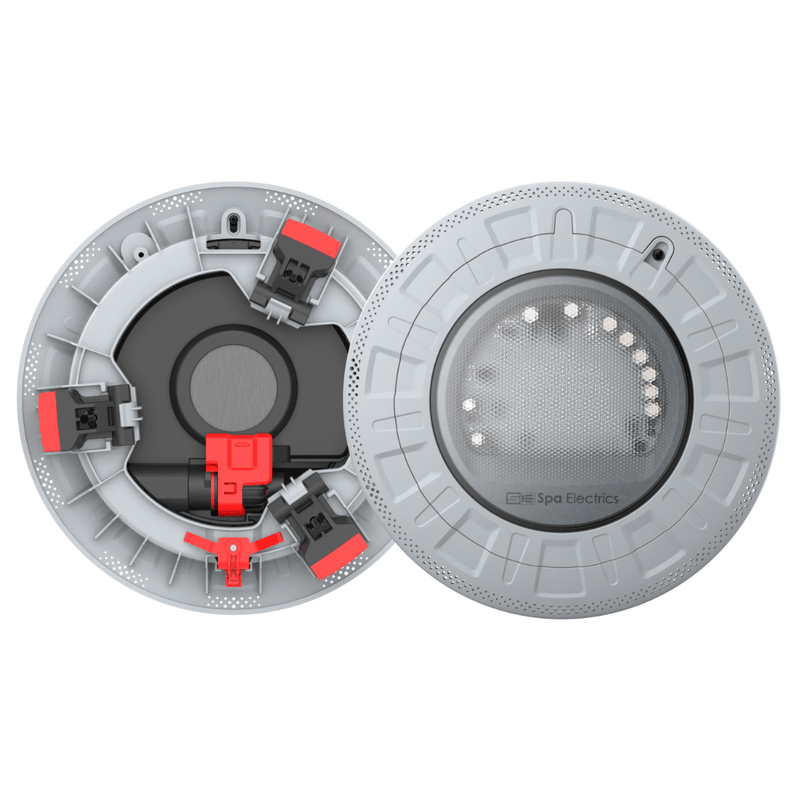

• Included Components: Retro 8 LED module, 8-inch niche adapter, plug seal assembly kit, trim ring
• Cable Compatibility: Up to 12 AWG
• Installation Type: Concrete (vinyl pools require separate vinyl trim kit)
• Ambient Operating Temperature: 41 �F to 104 �F
• Transformer Requirement: Requires 12 VAC UL-listed transformer

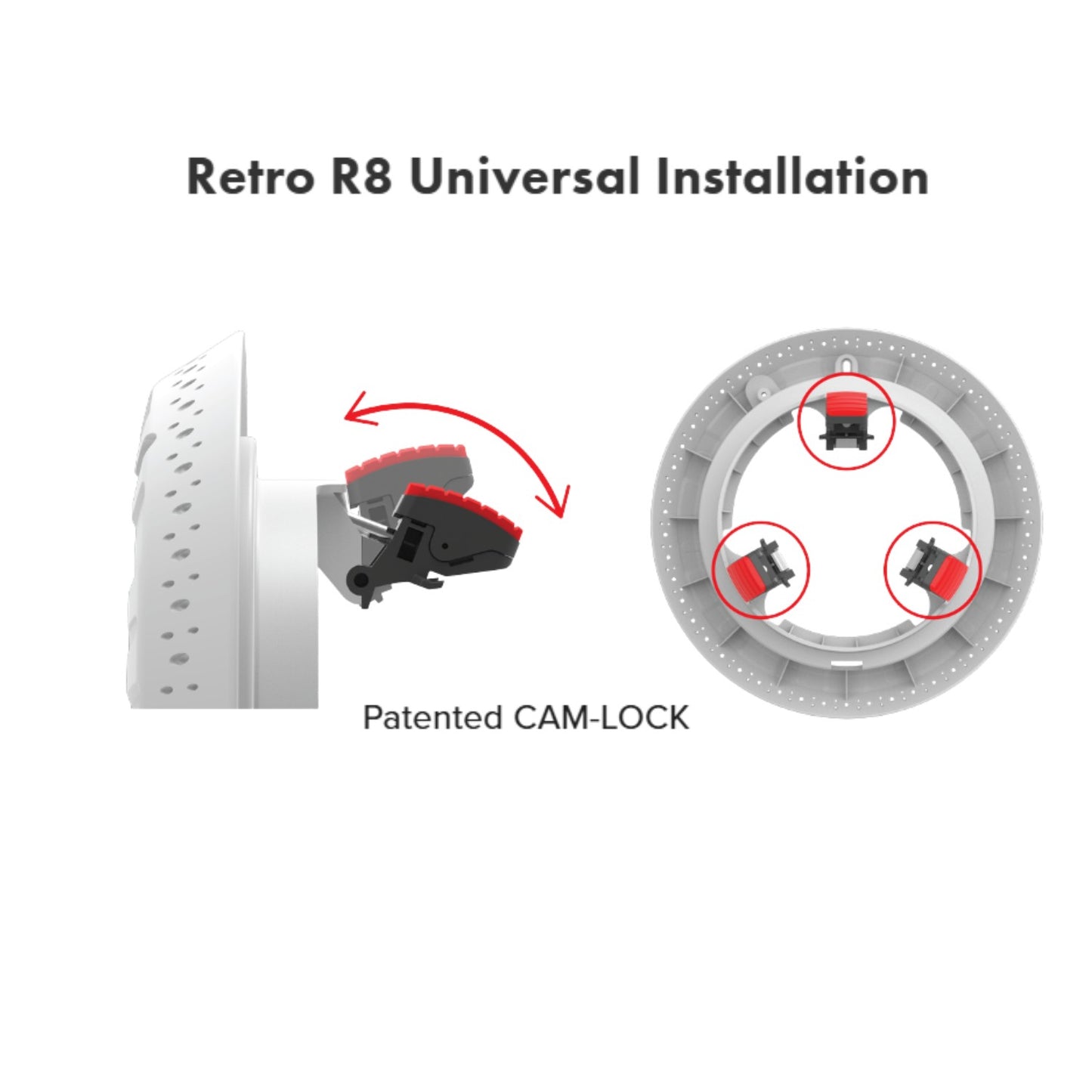

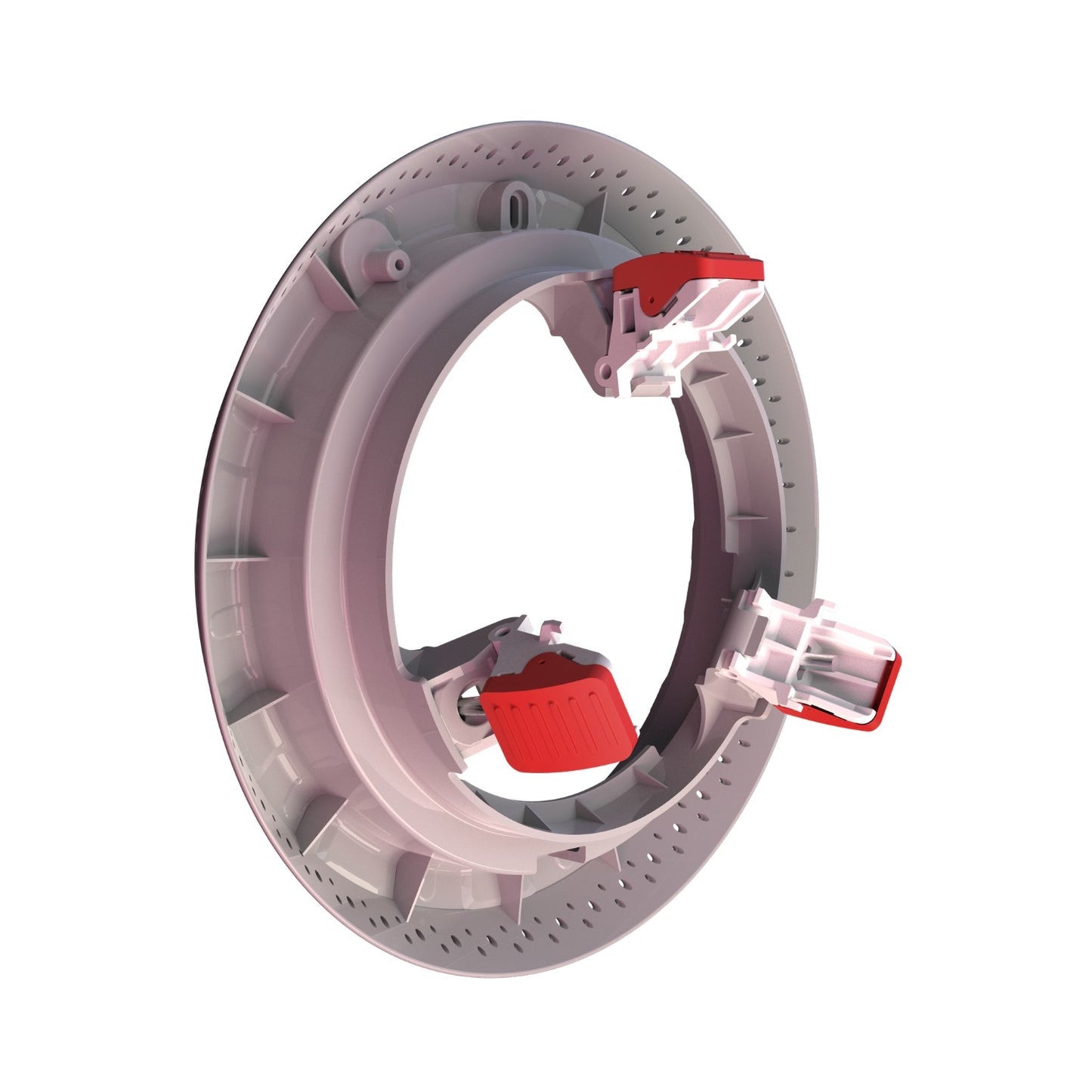

• Mounting / Adaptor: Universal adaptor with CAM-LOCKs; supports hook tab and front-facing screw installation
• Certifications: UL listed (quick-connect plug)
