Spa Electrics R8c L12 R1 Wmp Retro 8 Inch Led Pool Light

Product Description

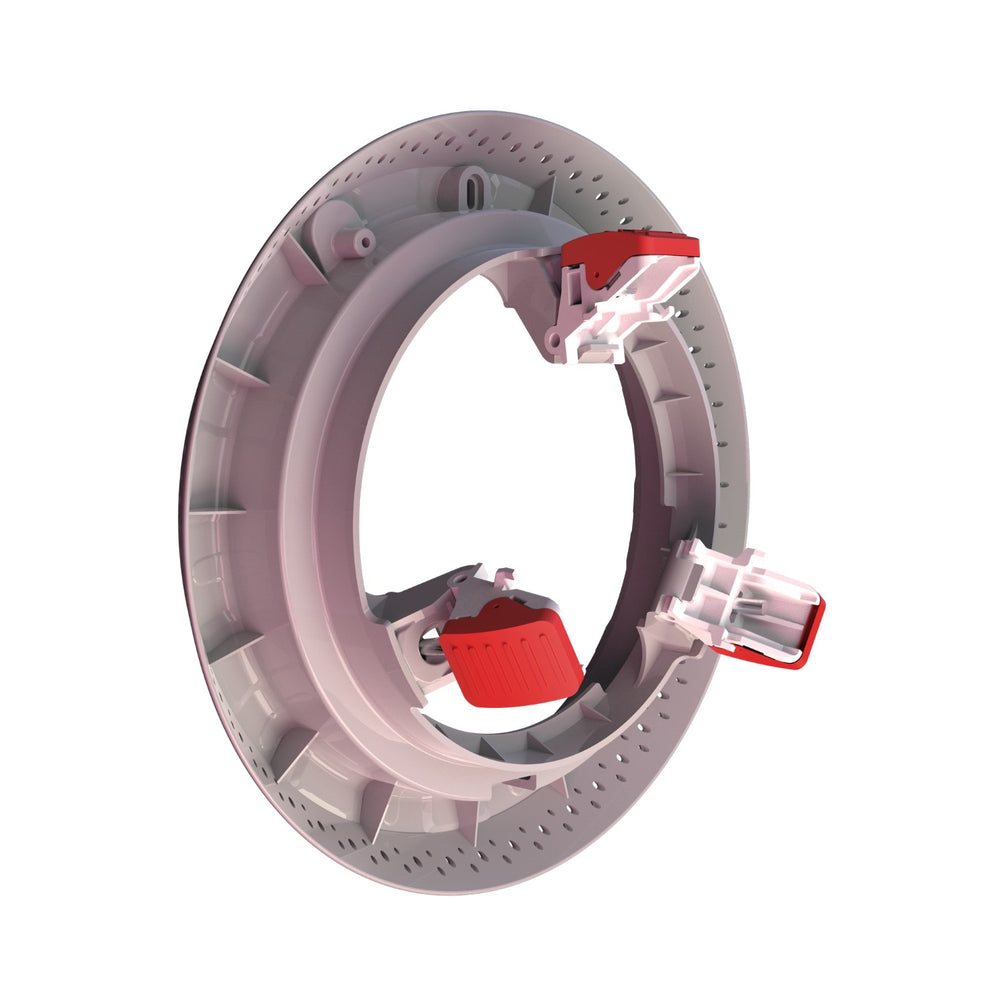

The SPA ELECTRICS r8c l12 r1 wmp is a high-power LED retrofit light assembly designed for large-format underwater pool niches. Running at 10.5 to 13 volts AC and drawing 45 watts, it delivers 3200 lumens through an RGB+W LED array capable of producing both full-color and white light output. The kit includes an 8-inch niche adapter, plug and seal assembly, and white rim, giving pool service technicians everything needed to complete a retrofit in a single concrete niche. It carries an IPX8 ingress protection rating, confirming it is suitable for continuous submersion.

This assembly is intended for residential and commercial pool applications where an existing large-format concrete niche requires a modern LED upgrade. The niche adapter fits concrete niches with an interior diameter between 7.4 and 8.1 inches. The Multi-Plus LED configuration supports dynamic color modes through the RGB+W array, making it a practical replacement for aging incandescent or halogen underwater fixtures. Installation is performed by a licensed pool or electrical contractor familiar with low-voltage underwater lighting systems.

Key Features

• RGB+W LED array provides multi-color and white light output from a single fixture
• 3200 lumens output suitable for large-format niche applications
• 45W power draw at 10.5 to 13 volts AC low-voltage operation
• IPX8-rated for continuous underwater submersion

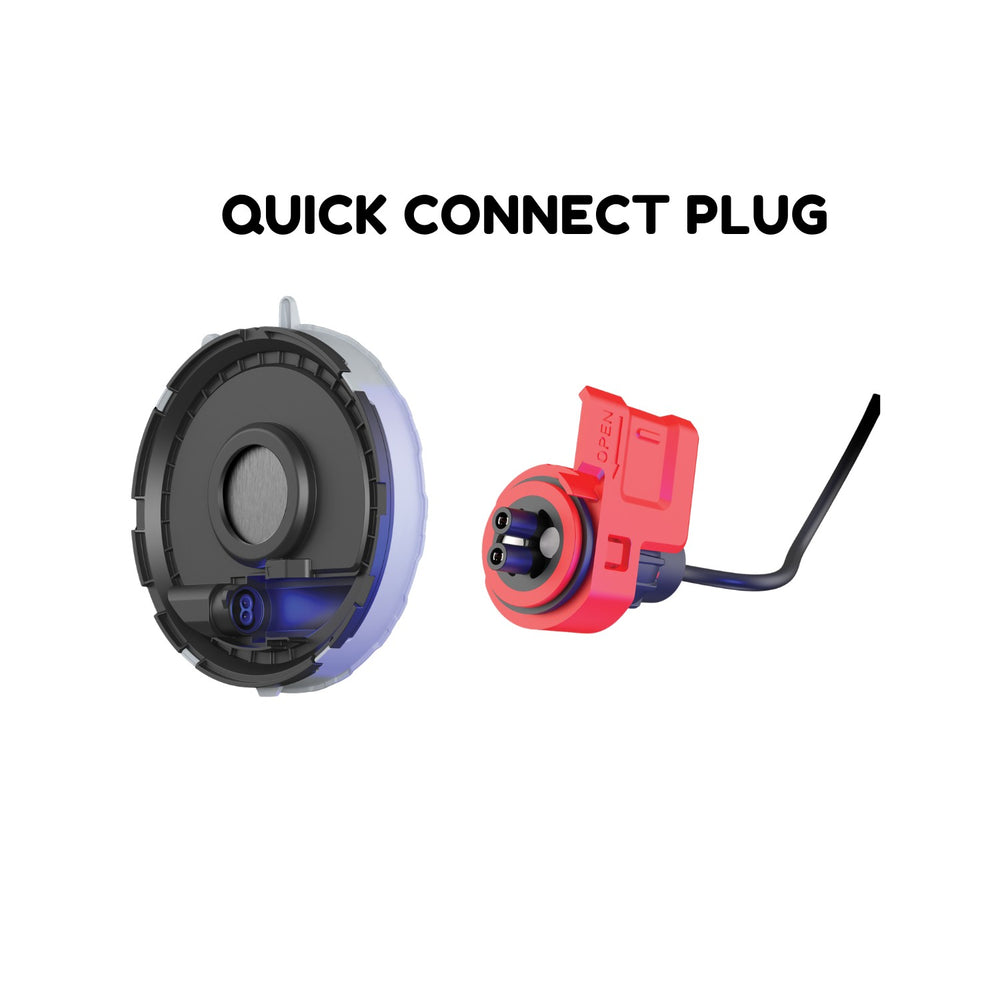

• Kit includes niche adapter, plug and seal assembly, and white rim for a complete retrofit
• Fits concrete niches with interior diameters from 7.4 to 8.1 inches

Compatibility

Designed as an OEM-style retrofit solution for 8-inch concrete pool niches with an interior diameter of 7.4 to 8.1 inches. No specific third-party model compatibility data was provided by the manufacturer for this listing.

Installation Notes

Installation must be performed by a licensed electrician or pool contractor in accordance with local electrical codes and NEC Article 680 requirements for underwater pool lighting. Always de-energize the transformer and verify zero voltage at the niche before beginning any work. The plug and seal assembly must be fully seated and watertight before returning the fixture to service. Do not operate the fixture outside the specified voltage range of 10.5 to 13 volts AC.

Technical Specifications

• Voltage: 10.5 to 13 volts AC
• Wattage: 45W
• Lumens: 3200 lm
• LED Array: RGB+W
• LED Color Mode: Multi-Plus
• Ingress Protection: IPX8
• Compatible Niche Interior Diameter: 7.4 to 8.1 inches
• Niche Size: 8 inches

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: r8c l12 r1 wmp
