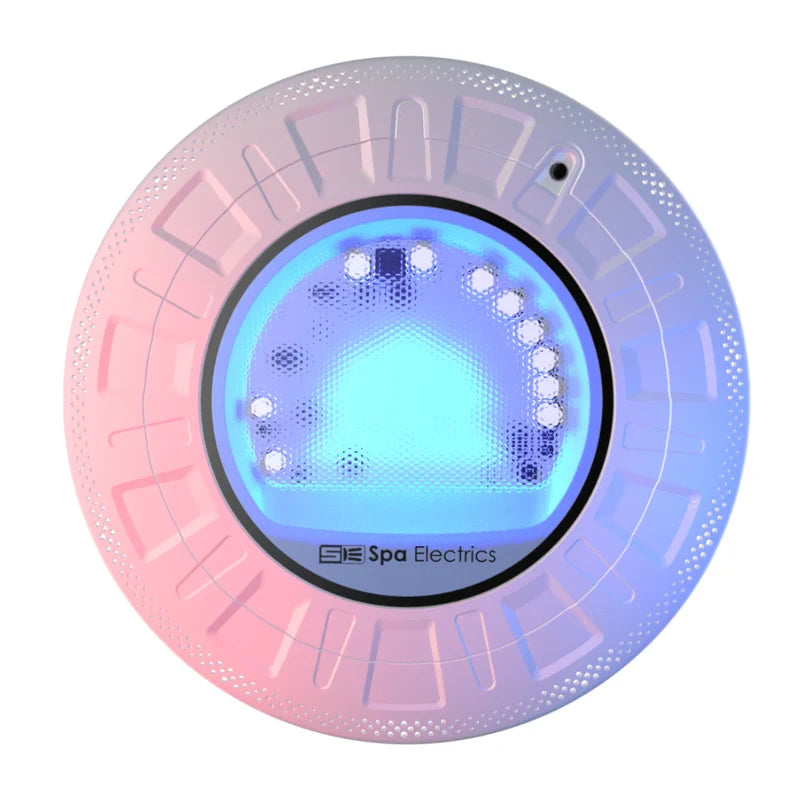

Spa Electrics R10h L12 R1 Wmp Led Pool Light 12V 45W

Product Description

The SPA ELECTRICS r10h l12 r1 wmp is a MultiPlus RGBW LED retrofit pool light designed to replace existing underwater fixtures in 10-inch niches without cutting new concrete or fiberglass. Running on 12 volts AC and drawing approximately 45 watts, it delivers roughly 3,200 lumens of full-color plus white output. The engine cycles through the full RGBW spectrum, making it a functional replacement for aging incandescent or single-color LED fixtures. Licensed electricians and pool service technicians handle installation in compliance with NEC Article 680 requirements for underwater pool lighting.

This fixture is built for universal retro-fit applications in residential and light commercial in-ground pools. It fits 10-inch niches found in concrete, fiberglass, and vinyl pool construction. The kit ships with a white 10-inch adaptor ring and a plug-seal assembly, which are the primary components needed to seat the new fixture in the existing niche without additional hardware purchases. Compatible predecessor part numbers referenced at point of sale include R10C and R10H L12 R1 WMP variants.

Key Features

• MultiPlus RGBW engine delivers full color plus dedicated white output from a single fixture
• Approximately 3,200 lumens output at 45 watts for strong underwater visibility
• 12V AC operation compatible with standard low-voltage pool light transformers
• Includes white 10-inch adaptor ring and plug-seal assembly kit — no separate hardware order required
• Universal retro-fit design fits 10-inch niches in concrete, fiberglass, and vinyl pools
• 3-year manufacturer warranty

Compatibility

Designed as a universal retro-fit replacement for 10-inch underwater pool light niches in concrete, fiberglass, and vinyl pools. Input references R10C and R10H as compatible or predecessor niche designations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 680 governing underwater pool lighting. The pool circulation system and all power to the existing light circuit must be shut off and locked out before removing the old fixture. Verify the existing niche depth and conduit sealing condition before seating the new adaptor ring. Do not energize the fixture outside of water.

Technical Specifications

• Light Engine: MultiPlus RGBW (full color plus white)
• Voltage: 12V AC
• Power Draw: 45 watts (approximate)
• Brightness: 3,200 lumens (approximate)
• Niche Size: 10 inches
• Rim Color: White
• Compatible Pool Types: Concrete, Fiberglass, Vinyl
• Includes: White 10-inch adaptor, plug-seal assembly kit
• Warranty: 3 years

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: r10h l12 r1 wmp
