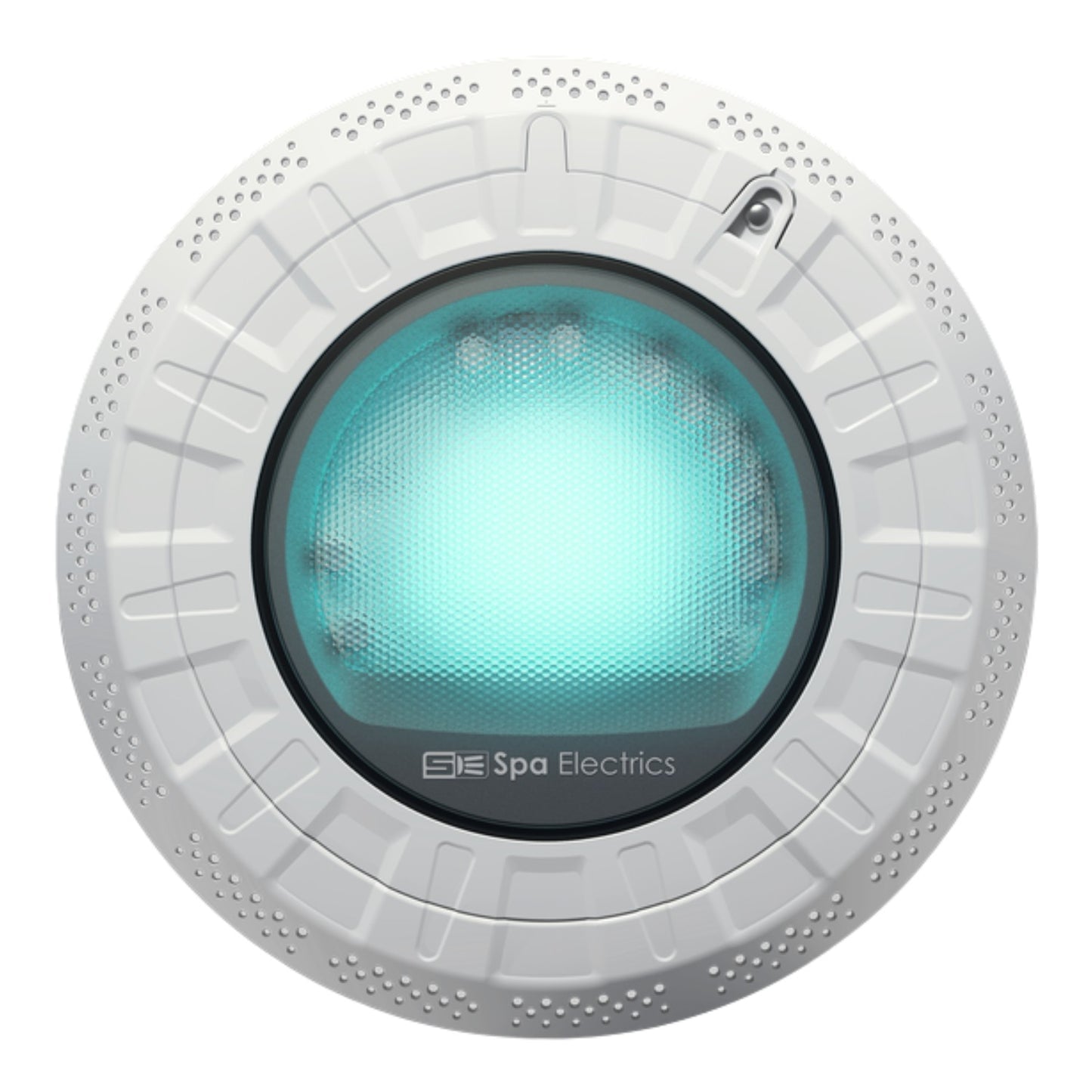

Spa Electrics R10H L12 R1 GW3 Retro 10 R10 LED Light Kit 45W (10-inch) R10H L12 R1 GW3

Product Description

Spa Electrics R10H L12 R1 GW3 is a 45W retrofit LED light kit for 10-inch Hayward twist-lock niches that operates at 10.5�13 V AC and is rated IPX8 for underwater use. The unit uses a ceramic light engine with an external heat sink and produces approximately 3200 lumens at 3000K. It includes a Hayward niche adapter, plug seal assembly and trim ring, and uses a UL-listed quick connect plug for low-voltage installations.

• Operates at 10.5�13 V AC, 45W power consumption; requires 12VAC UL-listed transformer
• Ceramic light engine with external heat sink, ~3200 lumens at 3000K, IPX8 rated

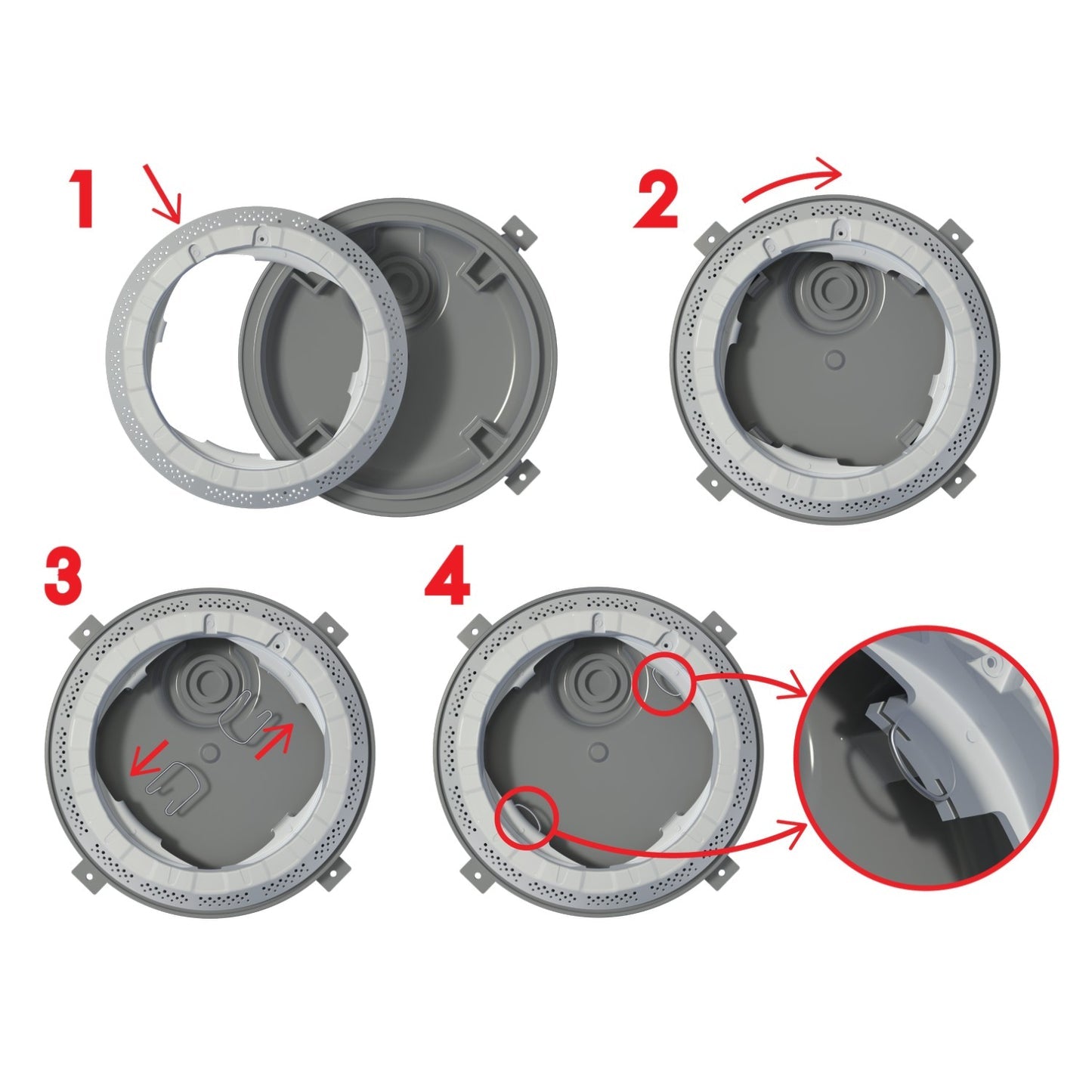

• Includes 10" Hayward twist-lock niche adapter, plug seal assembly kit, trim ring; UL-listed quick connect

Product Highlights

10-inch Hayward retrofit LED light kit, low-voltage 45W, IPX8 underwater rated

Product Information

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: R10H L12 R1 GW3

Technical Specifications

• Brand: Spa Electrics
• Manufacturer Part Number: R10H L12 R1 GW3
• Model: R10HL12R1GW3
• SKU: PST-R10HL12R1GW3
• Input Voltage: 10.5~13V AC
• Power Consumption: 45W
• IP Rating: IPX8
• Light Source: Ceramic light engine (LED)
• Lumens: 3200 lm
• Color Temperature: 3000K
• Compatible Niche Size: 10" Hayward twist-lock niches
• Niche Compatibility: All major brand niches including American, Anthony, CHD, Hayward, Hydrel, Jandy, PacFab, Paragon, Pentair, Purex, Sta-Rite, Swimquip
• Cable Compatibility: Up to 12 AWG
• Installation Types: Concrete / Vinyl
• Operating Temperature: 41 �F to 104 �F
• Transformer Requirement: Requires 12VAC UL-listed transformer
• Connector: UL-listed quick connect plug
• Cooling: External heat sink

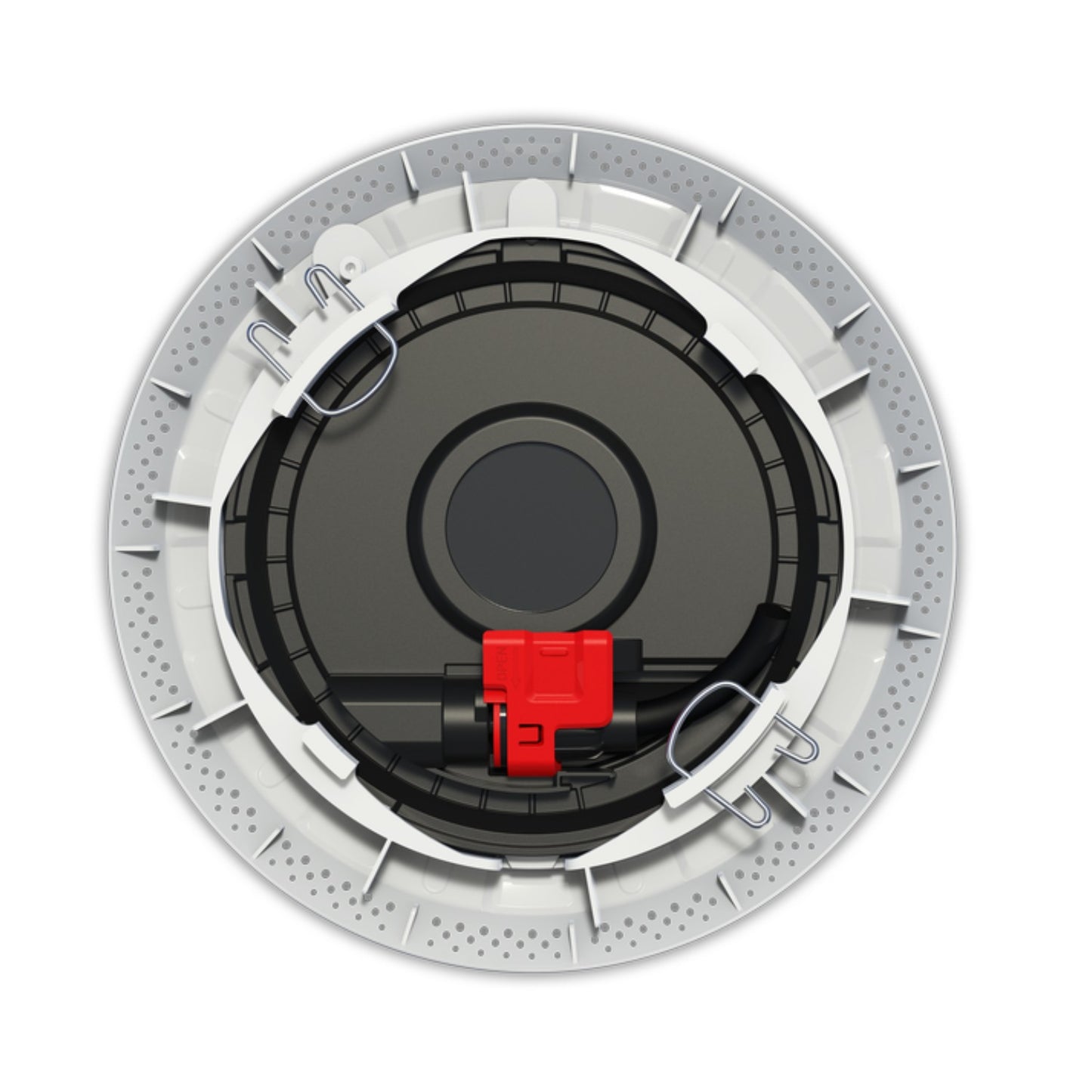

• Includes: Retro 10" Light; 10" Hayward Twist Lock Niche Adapter; Plug Seal Assembly Kit; Trim Ring
