Spa Electrics r10al12r1wmp Retro 10 in Led Pool Light Kit

Product Description

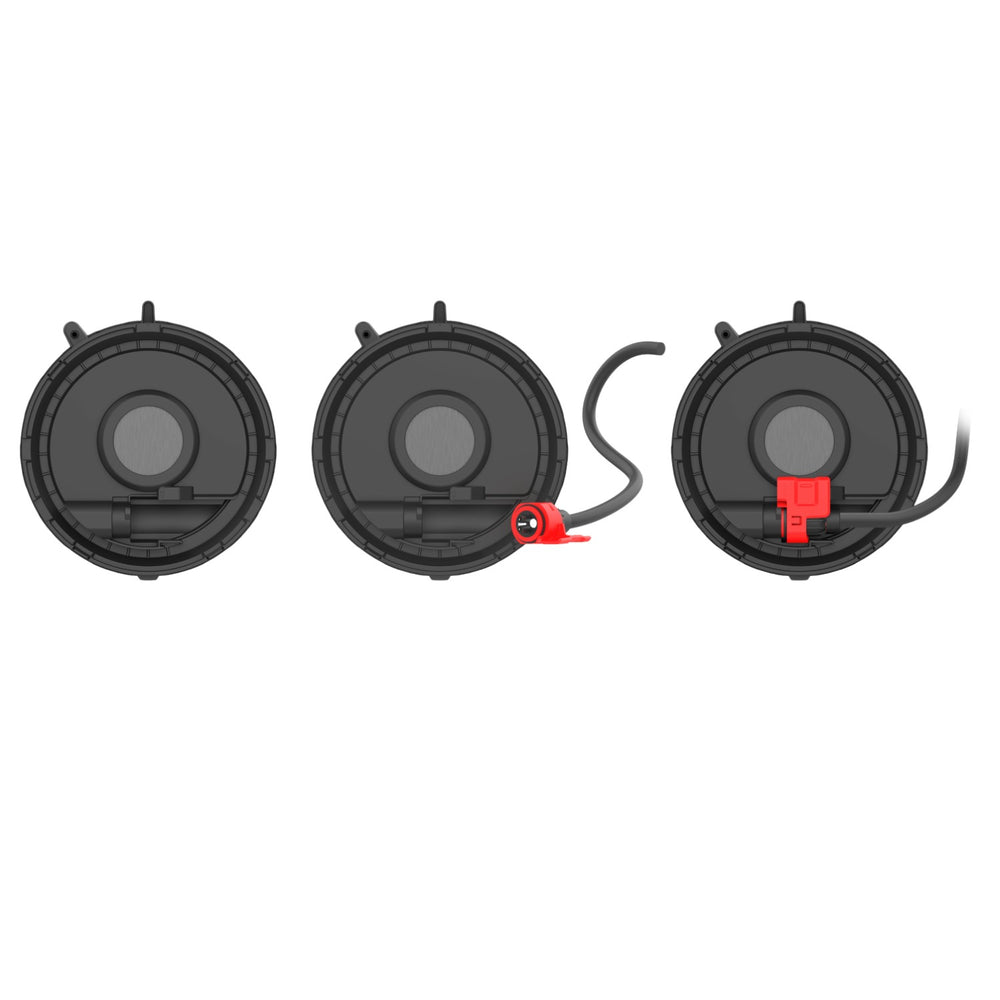

The SPA ELECTRICS r10al12r1wmp is a retrofit LED pool light kit engineered to upgrade existing 10-inch underwater pool niches to modern, energy-efficient LED technology. The kit delivers 3200 lumens through an RGB+W LED array, supporting full Multi-Plus color capability alongside white output. Operating at 10.5 to 13 volts AC and drawing 45 watts, it fits standard concrete and vinyl niches with an interior diameter of 9.05 to 9.6 inches. The package includes the LED light assembly, a 10-inch Aqualumin adapter, plug and seal assembly kit, and white rim — providing everything needed for a complete niche conversion.

This kit is suited for residential and commercial inground pool installations where an existing 10-inch niche is already present. It is commonly specified when upgrading from incandescent or halogen pool lights to LED without replacing the niche body. The included adapter, plug seal assembly, and white rim are matched components that streamline the retrofit process in both concrete and vinyl pool construction. Pool service professionals and licensed electricians typically install this fixture during seasonal maintenance or as part of a broader energy-efficiency upgrade.

Key Features

• RGB+W LED array with Multi-Plus color output and 3200 lumens of light output
• Fits 10-inch concrete and vinyl niches with interior diameters of 9.05 to 9.6 inches
• IPX8 ingress protection rating for continuous underwater submersion
• Operates at 10.5 to 13 volts AC — compatible with standard low-voltage pool light transformers
• Complete kit includes Aqualumin adapter, plug and seal assembly, and white rim for a full retrofit install
• 45-watt draw replaces higher-wattage incandescent fixtures while increasing light output

Compatibility

Designed as a retrofit replacement for standard 10-inch underwater pool light niches in concrete and vinyl construction with an interior diameter between 9.05 and 9.6 inches. Requires a low-voltage AC power supply in the 10.5 to 13 volt range.

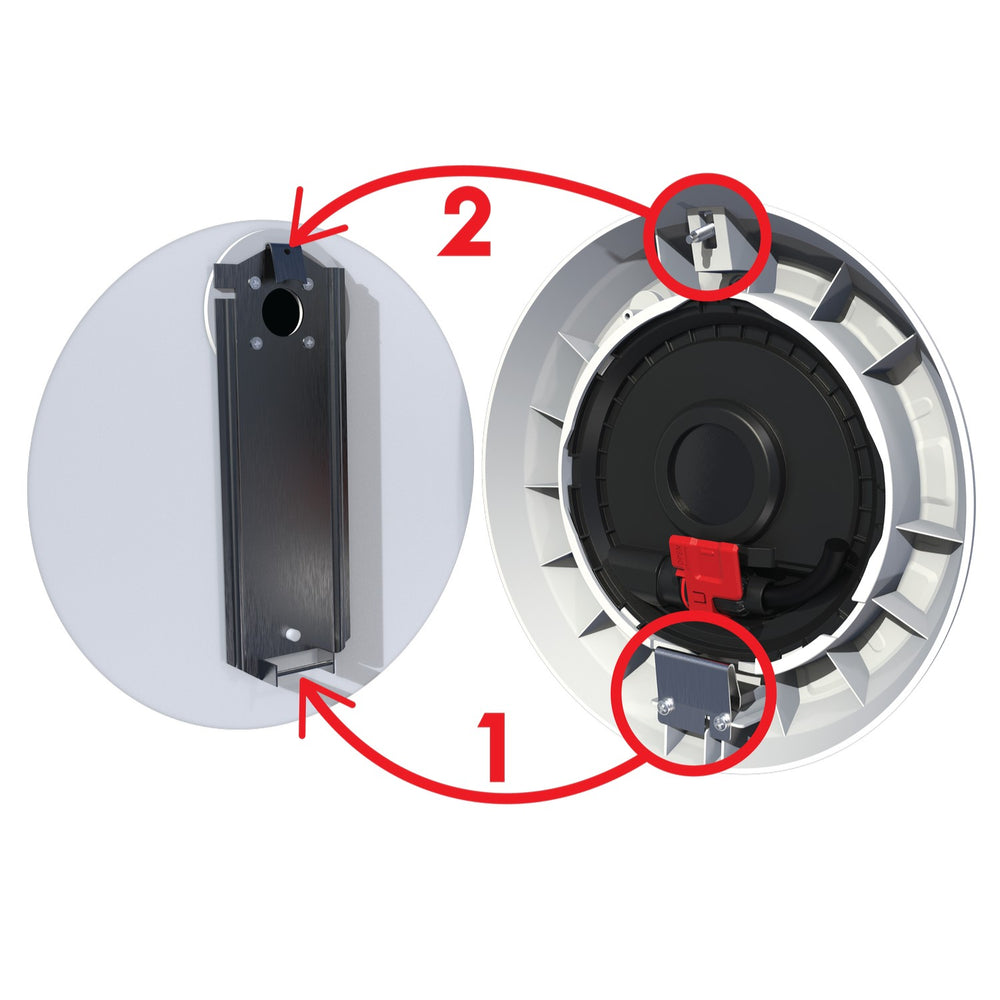

Installation Notes

Installation must be performed by a licensed electrician or qualified pool service professional in accordance with NEC Article 680 requirements for underwater pool lighting. Always disconnect and lock out power to the pool light circuit at the breaker before beginning any work on the niche or fixture. Verify the existing niche interior diameter falls within the 9.05 to 9.6 inch range before installing the adapter. Ensure the plug and seal assembly is fully seated before returning the fixture to service.

Technical Specifications

• Voltage: 10.5 to 13 volts AC
• Wattage: 45W
• Lumens: 3200 lm
• LED Array: RGB+W
• LED Color: Multi-Plus
• Ingress Protection: IPX8
• Compatible Niche Size: 10 inches (ID 9.05 to 9.6 inches)
• Compatible Niche Types: Concrete and Vinyl

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: r10al12r1wmp
