Spa Electrics Q6C L12 L3 CW4 Quantum 6 inches Led Pool Light 12W (6 inches) Q6CL12L3CW4

Product Description

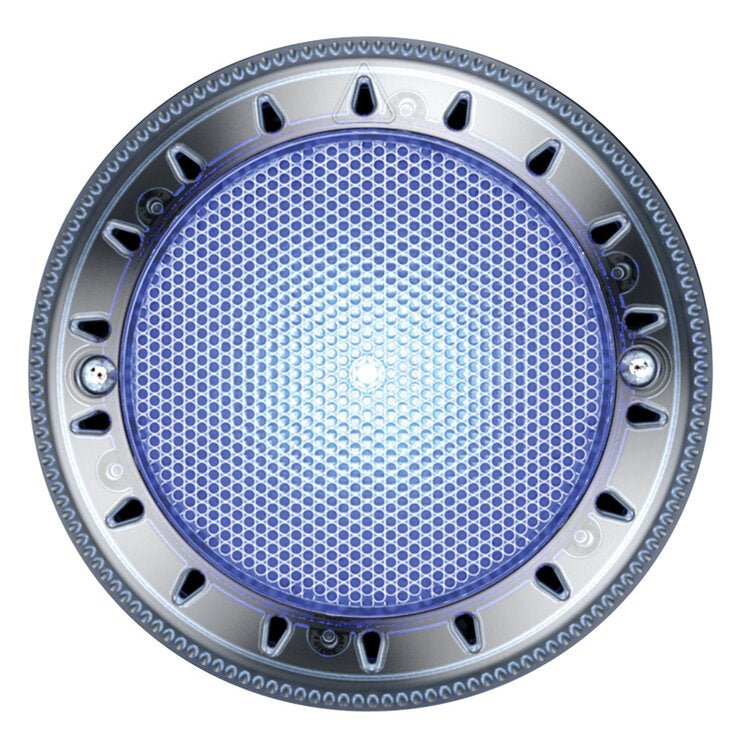

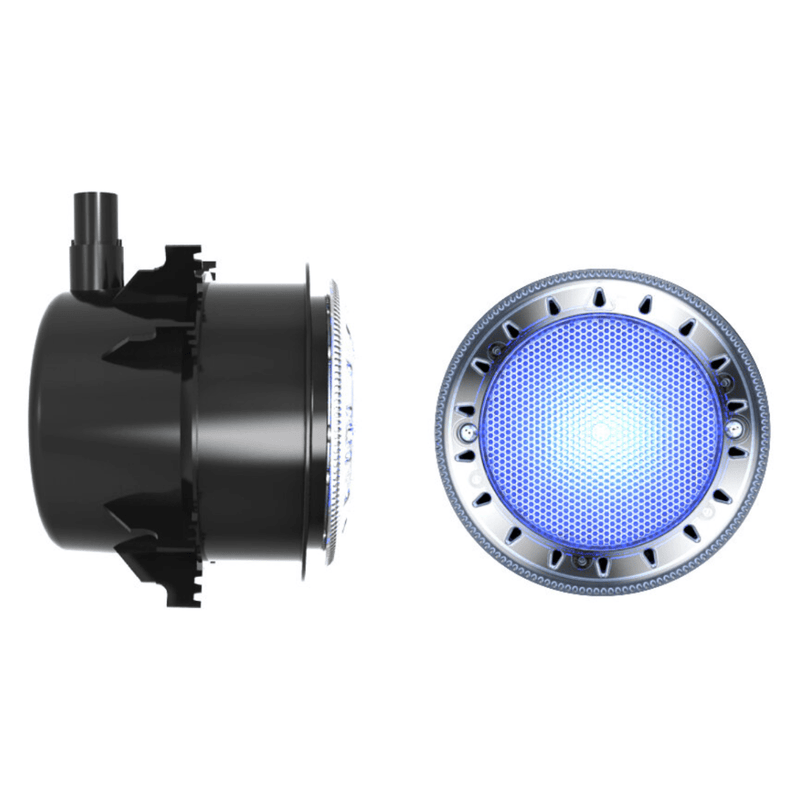

Spa Electrics Q6C L12 L3 CW4 is a Quantum Series 6-inch underwater pool light for concrete pools that uses a high-intensity ceramic LED light engine and consumes 12 watts. The fixture operates on 12V AC and requires a UL-listed transformer, carries an IPX8 waterproof rating and UL certification, and is rated for 41�F to 104�F ambient temperatures. The kit includes a concrete mounting kit and a 100 ft cable.

• High-intensity ceramic LED light engine, 12 watts, 6-inch Quantum series lens

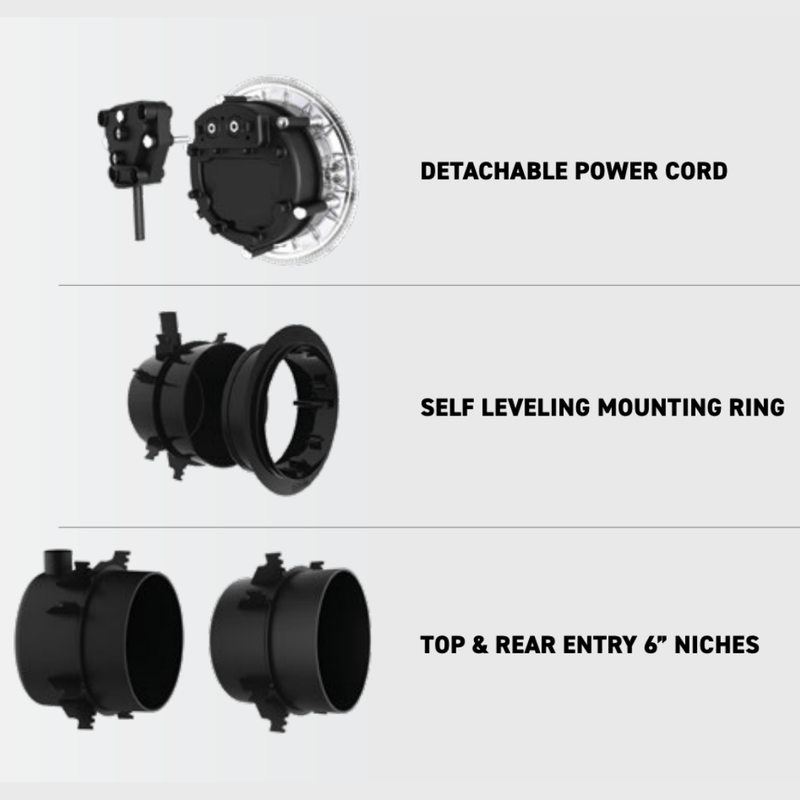

• Operates on 12V AC; requires a 12V AC UL-listed transformer; patented detachable direct-connect electrical connection
• IPX8 waterproof rating, UL certified, includes concrete mounting kit and 100 ft cable; ambient range 41�F to 104�F

Product Highlights

Quantum 6" ceramic LED pool light, 12V AC/12W, IPX8 waterproof, includes mounting kit and 100 ft cable

Product Information

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: Q6C L12 L3 CW4
• Country of Origin: Australia

Technical Specifications

• Brand: Spa Electrics
• Manufacturer Part Number: Q6C L12 L3 CW4
• Alternate Model / Replacement MPN: Q6CL12L3CW4
• Series: Quantum (Q6)
• Size: 6 inches
• Light Source: Ceramic light engine (LED)
• Power Consumption: 12 watts
• Input Voltage: 12V AC
• Mounting Type: Concrete mounting kit
• Cable Length: 100 ft
• IP Rating: IPX8
• Certifications: UL certified
• Ambient Operating Temperature: 41�F to 104�F
• Transformer Requirement: Requires 12V AC UL-listed transformer (LVX series recommended)
• Connection Type: Patented detachable direct-connect electrical connection
• Compatibility: Wall switch operation; Hayward Omnilogic; Pentair IntelliTouch/EasyTouch; Zodiac/Jandy RS (REV R - current); Zodiac TRi
• Application: Concrete pools (underwater)
