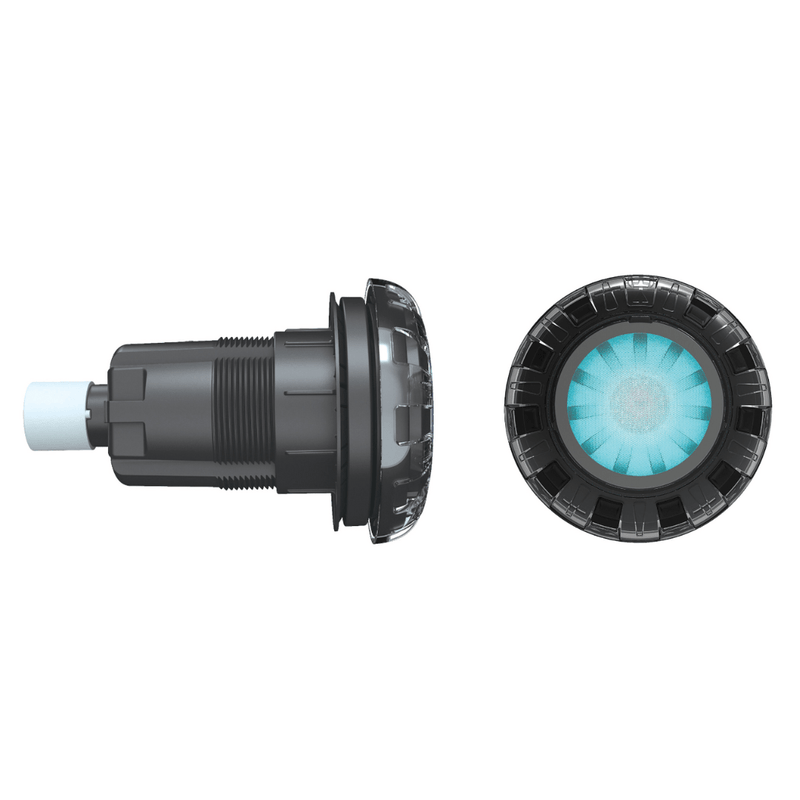

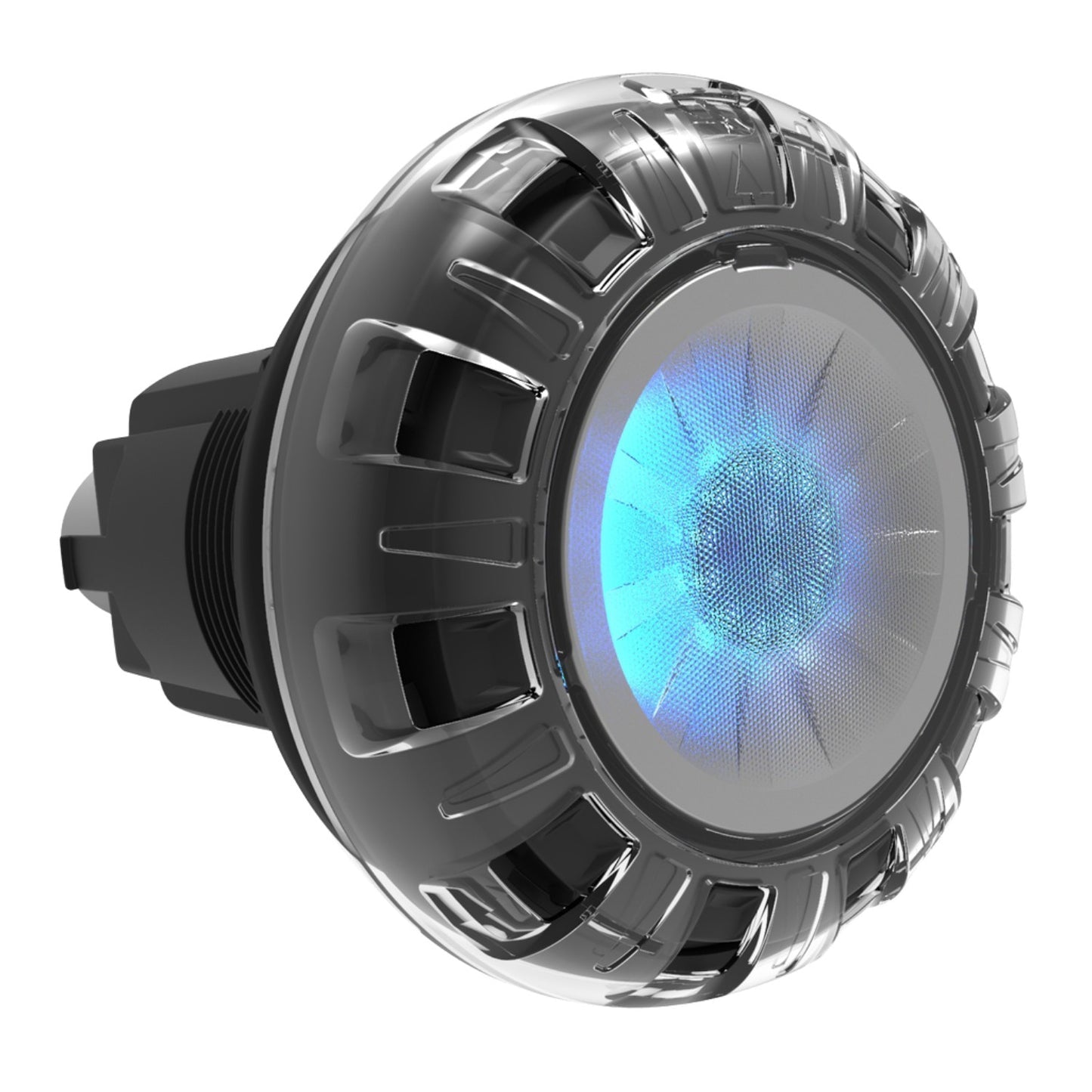

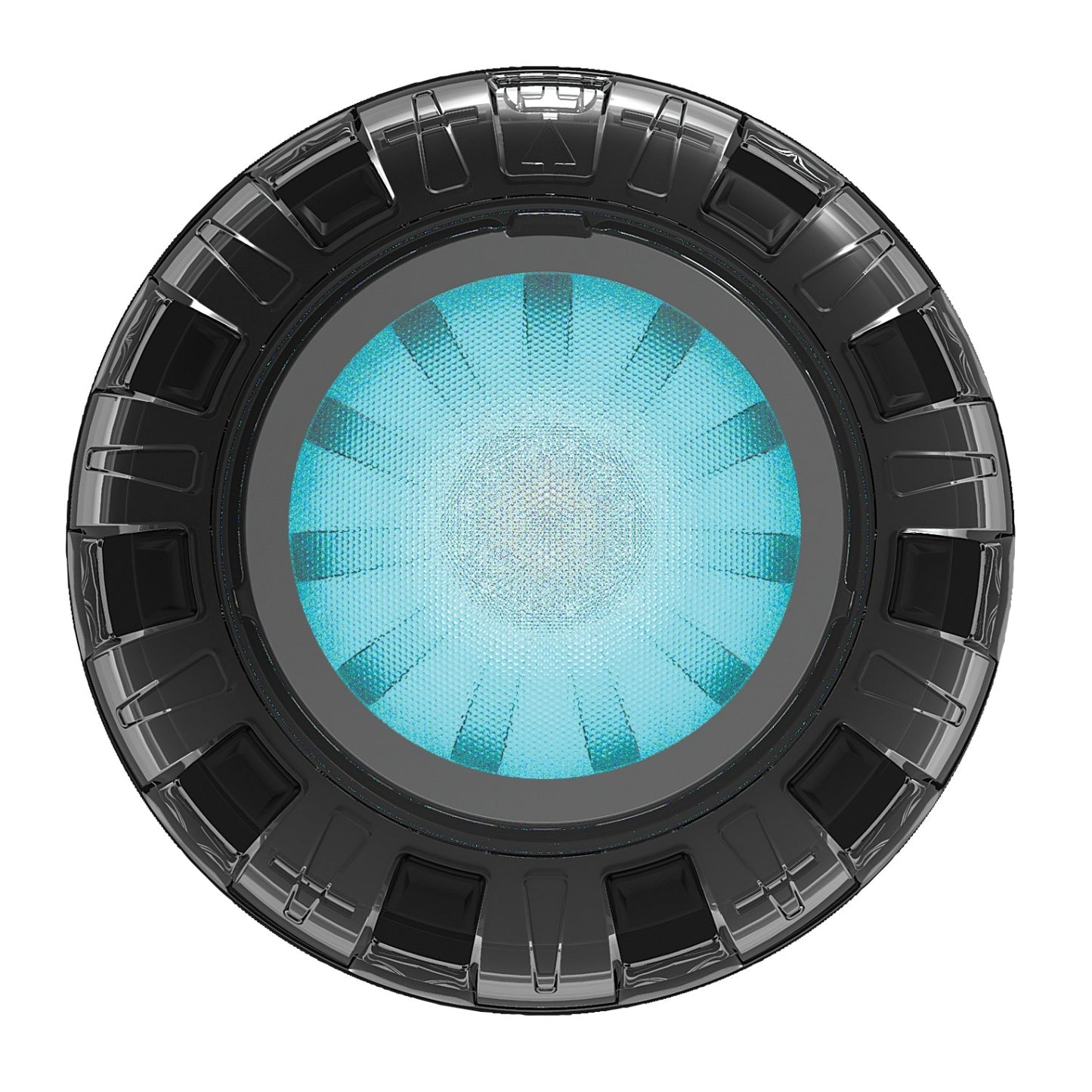

The Spa Electrics N3V L12 L3 CMP is a 15W Argon 3" niche-style LED pool light that uses a high-intensity ceramic LED light engine and a forward-facing heat sink to manage thermal performance. It operates at 10.5�13 V AC (requires a 12V AC UL-listed transformer), is IPX8 rated, and is suitable for composite, steel wall, vinyl, and fiberglass pools with a niche or as a light head in a 1.5" return fitting. The unit is compatible with major pool controllers.
High-intensity ceramic LED light engine with RGB+W (MULTI PLUS) capability and approximately 1000 lm output
Electrical: 15 W power, 10.5�13 V AC input; requires 12V AC UL-listed transformer (LVX series recommended); UL certified; IPX8 waterproof

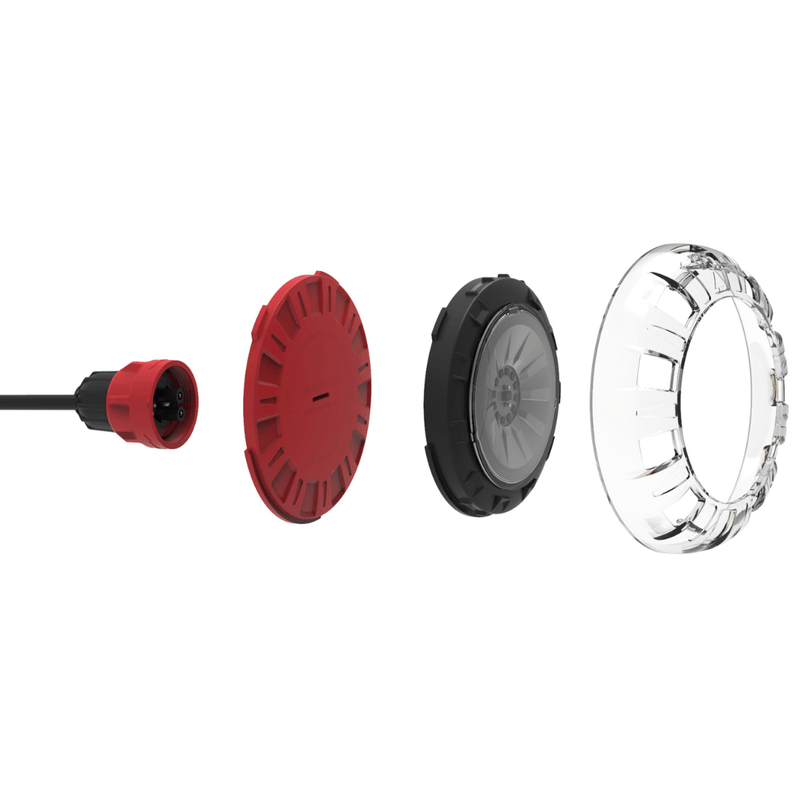

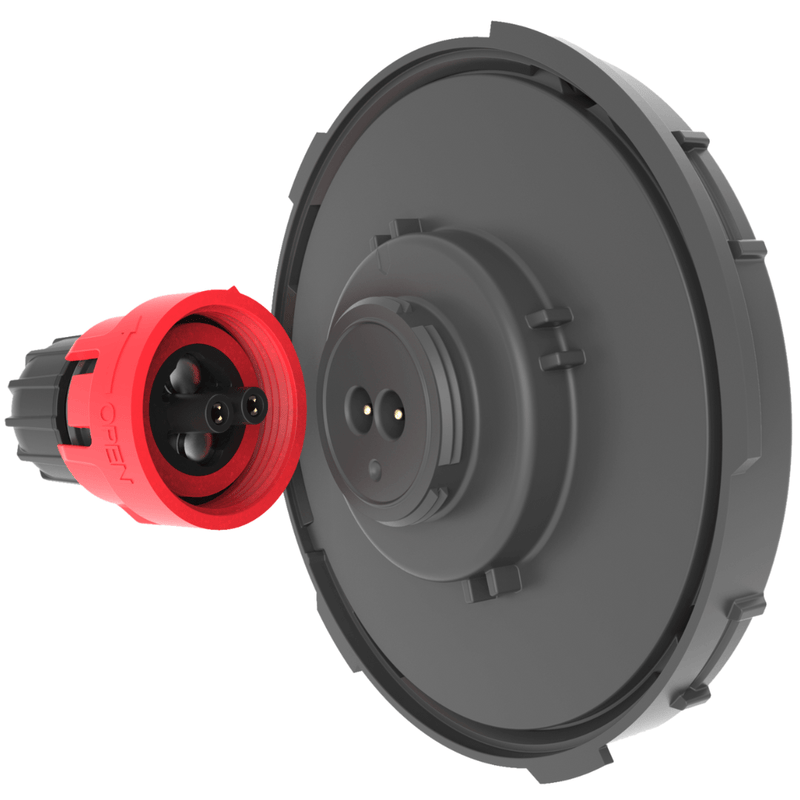

Installation and service features include ARGON Quick-Connect plug, forward-facing heat sink, engineered 3" niche with preloaded cable and winterization provisions
Product Highlights
15W ceramic LED engine, 10.5�13 V AC, IPX8, ARGON Quick-Connect, compatible with major pool controllers
Product Information
Standard Information
Brand: SPA ELECTRICS
Manufacturer Part Number: N3V L12 L3 CMP
Country of Origin: Australia
Technical Specifications
Brand
Spa Electrics
Manufacturer Part Number
N3V L12 L3 CMP
Series
Argon
Model
N3VL12L3CMP
Light Source
Ceramic Light Engine (LED)
LED Array
RGB+W
Color Mode
MULTI PLUS (multi-color)
Input Voltage
10.5�13 V AC
Wattage
15 W
Lumens
1000 lm
Ingress Protection
IPX8
Certifications
UL certified
Compatibility
Compatible with major pool controllers (Wall switch operation; Hayward Omnilogic; Pentair IntelliTouch/EasyTouch; Zodiac/Jandy RS REV R - Current; Zodiac TRi)
Suitable For / Installation Type
Composite and steel wall, vinyl and fiberglass pools (with niche); fits 1.5" return fitting
Mounting
3" engineered niche
Operating Temperature
41�F to 104�F
Transformer Requirement
Requires 12V AC UL-listed transformer (LVX series recommended)
Includes
Argon 3" light; vinyl niche; vinyl clamp kit; winterization cap; 100 ft cable (kit components vary by listing)
Features
Forward-facing heat sink cooling; ARGON Quick-Connect detachable electrical connection; preloaded cable and niche cable storage for winterization; engineered high-strength niche; keyway alignment system
