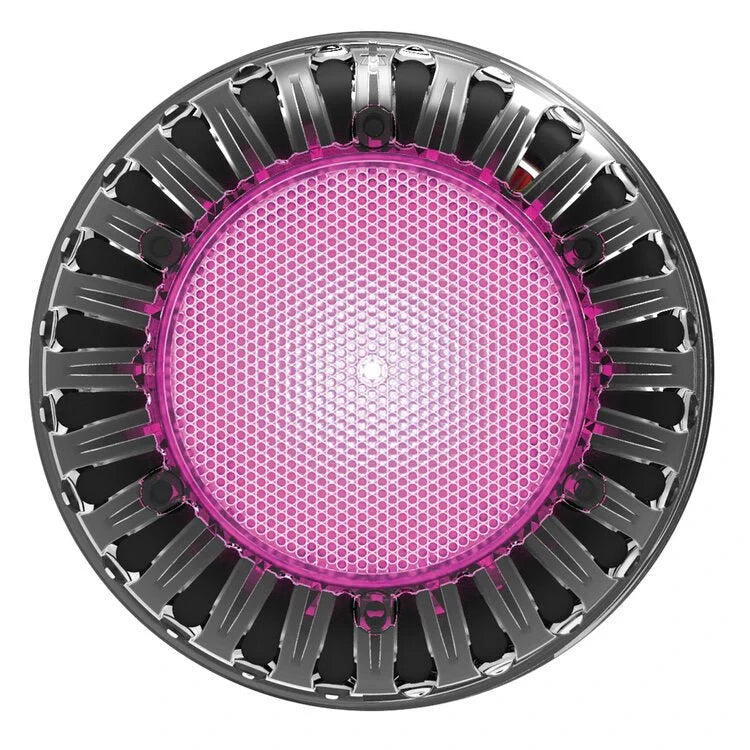

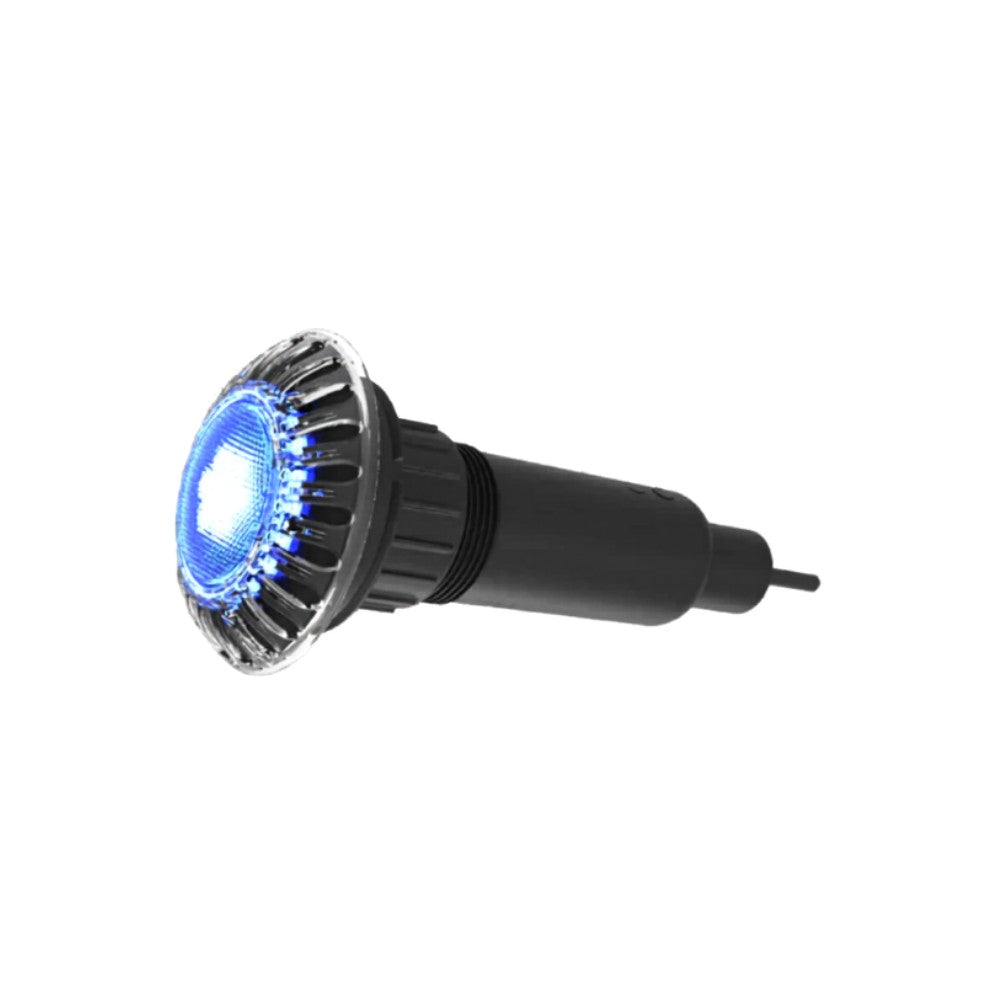

Spa Electrics A3F L12 L3 CMP Atom EM 12W (3 inch niche)

Product Description

The Spa Electrics A3F L12 L3 CMP is a 3-inch niche-style low-voltage LED pool light kit that is designed for fiberglass pools and includes a fiberglass-mount housing and mounting kit. It uses a Multi-Plus RGBW L3 LED engine and operates at 12W on a 12V AC supply with IPX8 ingress protection, and ships with a 100 ft cable and quick-connect plug where provided.

• Multi-Plus RGBW L3 LED engine delivering approximately 850 lumens and RGB+W color capability
• Low-voltage 12W operation at 12V AC with IPX8 submersible rating; suitable for top or back-entry niches
• Complete kit includes 3" fiberglass-mount housing, fiberglass mounting flange, gasket set, locking ring, hardware pack and 100 ft cable

Product Highlights

Compact 3-inch niche LED pool light kit with Multi-Plus RGBW L3 engine, 12W power, 100 ft cable and fiberglass mounting kit; IPX8 rated for in-ground pool installations.

Product Information

Standard Information

• Brand: SPA ELECTRICS
• Manufacturer Part Number: A3F L12 L3 CMP
• Country of Origin: Australia

Technical Specifications

• Brand: Spa Electrics
• Manufacturer Part Number: A3F L12 L3 CMP
• Model: Atom EM
• Input Voltage: 12 V AC
• Power (Wattage): 12 W
• Size: 3 inch niche-style
• Mounting Type: Fiberglass mount (fiberglass-mount housing, fiberglass mounting flange)
• LED Engine: Multi-Plus RGBW L3 (RGB+W)
• Cable Length: 100 ft
• Included Items: Fiberglass-mount housing; Multi-Plus RGBW L3 LED engine; 100 ft cable; fiberglass mounting flange; gasket set; locking ring; hardware pack; quick-connect plug (depending on distributor)
• Ingress Protection (IP Rating): IPX8
• Lumens: Approximately 850 lm
• Suitable For (Installation Types): Concrete, Fiberglass, Vinyl pools (top or back-entry niches)
• Compatibility: Wall switch operation; Hayward Omnilogic; Pentair IntelliTouch / EasyTouch; Zodiac/Jandy RS (REV R - Current); Zodiac TRi
• Transformer Requirement: Requires 12V AC UL listed transformer (LVX Series recommended)
• Ambient Operating Temperature: 41�F to 104�F
• Manufacturer Country: Designed and manufactured in Australia
• Weight: 12.0 lb
