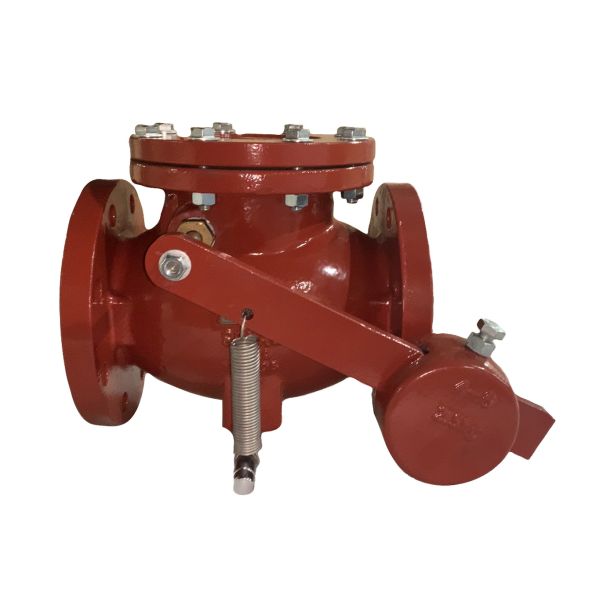

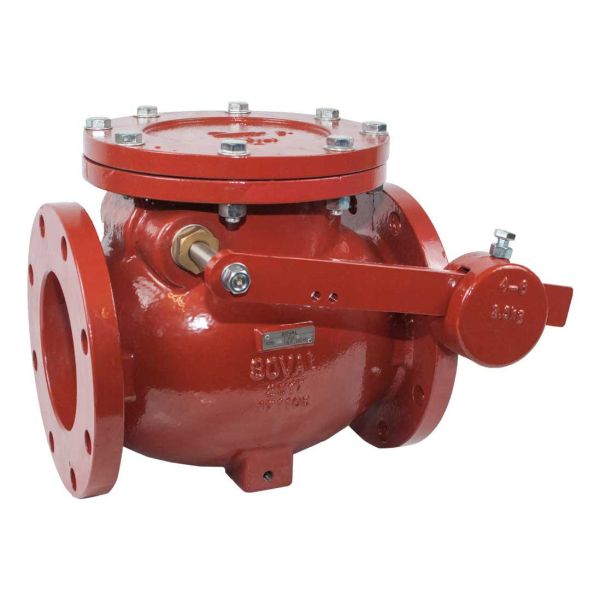

SOVAL 826-140 Ductile Iron Swing Check Valve with Lever and Weight

Product Description

The SOVAL 826-140 is a swing check valve made from ductile iron. This valve employs a lever and weight mechanism for efficiency. It meets AWWA C508 standards, ensuring reliable performance in various applications. The valve features a resilient seated disc that seals against an integral bronze seat ring. It is designed with a full waterway for optimal flow and includes flanged ends that comply with ANSI B16.1, Class 125 specifications.

• Can be mounted in both horizontal and vertical positions.
• Equipped with an outside lever and an adjustable lever weight.
• Constructed with stainless steel SS304 pins, nuts, and bolts for durability.

Product Highlights

This swing check valve is ideal for controlling reverse flow in pipelines.

Product Information

Standard Information

• Brand: SOVAL
• MPN: 826-140

Technical Specifications

• Material (Body): ASTM A536 65-45-12
• Flange Standard: ANSI B16.1, Class 125
• Operating Temperature: 42F - 180F
• Pressure Rating: 200 PSI
• AWWA Compliant: C508
