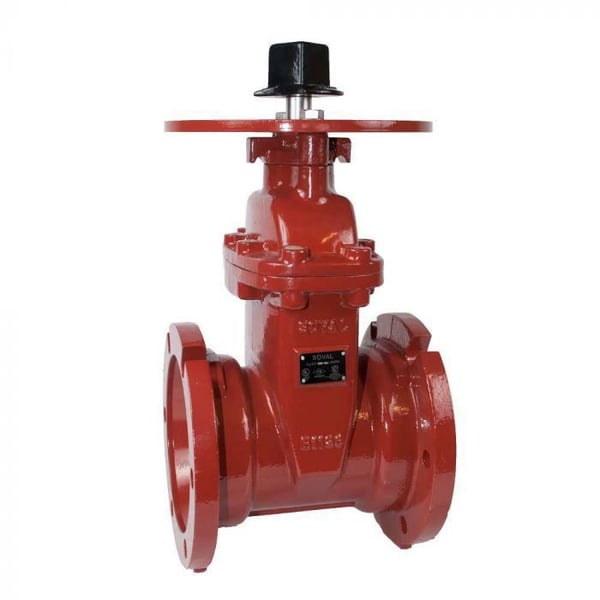

SOVAL 807IP-060 Resilient Seated Gate Valve

Product Description

The SOVAL 807IP-060 is a durable resilient seated gate valve designed for effective fluid control. This model belongs to the 807IP series, featuring a nominal size of six inches and a mechanical joint (MJ) end style. The valve is made from ductile iron and has stainless steel trim complemented by EPDM softgoods. It is epoxy-coated, providing resistance against corrosion and wear.

• Pressure rating up to 300 psi.
• Temperature range from thirty-three to one hundred twenty-six degrees Fahrenheit.
• Equipped with triple O-ring stem seals for enhanced leak prevention.

Product Highlights

Ideal for various piping systems, the SOVAL 807IP-060 valve ensures reliability and functionality within the designated pressure and temperature limits.

Product Information

Standard Information

• Brand: SOVAL
• MPN: 807IP-060

Technical Specifications

• Series: 807IP
• Nominal Size: 6 inches
• End Style: MJ
• Pressure Rating: 300 psi
• Temperature Rating: 33 to 126 degrees Fahrenheit
• Inlet to Outlet Length: 11-1/2 inches
• Top to Inlet Center: 17-15/16 inches
• Body Material: Ductile Iron
• Trim Material: Stainless Steel
• Softgoods Material: EPDM
• Coating: Fusion Bonded Epoxy-Coated
• Valve Type: Resilient Seated
