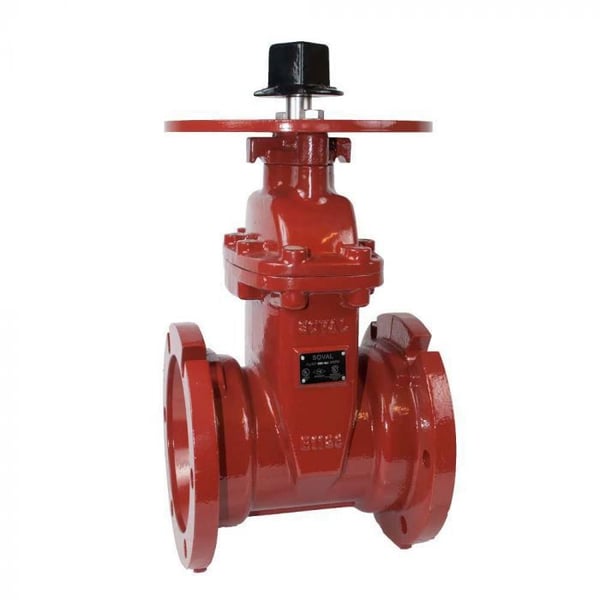

SOVAL 807IP-040 Resilient Seated Gate Valve

Product Description

The SOVAL 807IP-040 is a resilient seated gate valve designed for effective fluid control. This valve is part of the 807IP series and features a nominal size of four inches with a mechanical joint (MJ) end style. Constructed with a ductile iron body and stainless steel trim, it ensures durability and longevity in various applications. The valve is equipped with EPDM softgoods and has a fusion-bonded epoxy coating that enhances its resistance against corrosion.

• Features a non-rising stem design.
• Incorporates triple O-ring stem seals for improved leakage prevention.
• Includes a lifting lug integrated into the stuffing gland for easy handling.

Product Highlights

Ideal for systems requiring a pressure rating of up to 300 psi and temperature control between thirty-three to one hundred twenty-six degrees Fahrenheit.

Product Information

Standard Information

• Brand: SOVAL
• MPN: 807IP-040

Technical Specifications

• Series: 807IP
• Nominal Size: 4 inches
• End Style: MJ
• Pressure Rating: 300 psi
• Temperature Rating: 33 to 126 degrees Fahrenheit
• Inlet to Outlet Length: 10 inches
• Top to Inlet Center: 13-3/4 inches
• Body Material: Ductile Iron
• Trim Material: Stainless Steel
• Softgoods Material: EPDM
• Finish: Fusion Bonded Epoxy-Coated
• Type: Resilient Seated
