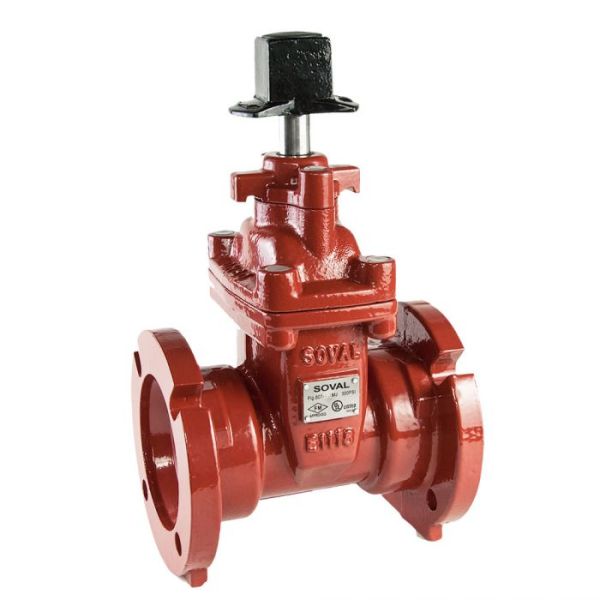

Soval 807-080MJ Soval 807 Series NRS UL/FM Resilient Seated Gate Valve, MJ×MJ Ends

Product Description

The Soval 807 Series NRS UL/FM Resilient Seated Gate Valve with MPN 807-080MJ features a non-rising stem and resilient seating suitable for various applications such as fire protection, waterworks, and flow control systems. This valve meets AWWA C515 standards and is certified under NSF/ANSI 61 & 372.

• AWWA C515 compliant and NSF/ANSI 61 & 372 certified
• Non-rising stem equipped with resilient seating and a triple O-ring stem seal
• UL Listed and FM Approved at 300 PSI

Product Highlights

This gate valve features a ductile iron body, bonnet, and wedge, with the wedge encapsulated in EPDM rubber to enhance durability and performance. The design incorporates lifting lugs built into the stuffing gland for easy handling.

Product Information

Standard Information

• MPN: 807-080MJ
• Brand: Soval

Technical Specifications

• Working Pressure: 300 PSI
• Working Temperature: 33°F to 170°F
• Mechanical Joint: Conforms to ANSI/AWWA C153/A21.53
• Body Material: Ductile Iron A536 65-45-12
• Wedge Material: Ductile Iron, EPDM Encapsulated
• Stem Material: Stainless Steel AISI 420
