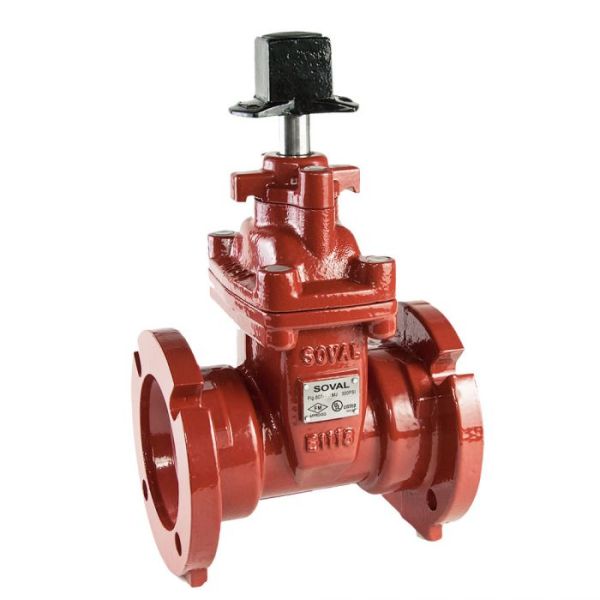

SOVAL 807-060MJ Gate Valve 6 Inch Mechanical Joint Ductile Iron

Product Description

The SOVAL 807-060MJ Gate Valve is a ductile iron valve designed for essential applications such as fire protection and waterworks. This valve features a mechanical joint and is suitable for high-pressure systems, operating efficiently at up to three hundred psi. The durable construction ensures reliability in a variety of environments.

• Resilient seated gate
• Non-rising stem design
• Complies with AWWA C515 standards

Product Highlights

This valve is UL listed and FM approved, making it ideal for demanding city applications.

Product Information

Standard Information

• Material: Ductile Iron A536 65-45-12
• Working Pressure: 300 PSI

Technical Specifications

• Wedge: Ductile Iron, EPDM Encapsulated
• Stem: Stainless Steel AISI 420
• Working Temperature: 33°F to 170°F
• Mechanical Joint: Conforms to ANSI/AWWA C153/A21.53
• Certifications: NSF/ANSI 61 & 372
• Coating: Fusion bonded epoxy coated to AWWA C550 Standard
• Dimensions: 11 1/2 inches (L) x 17 15/16 inches (H)
