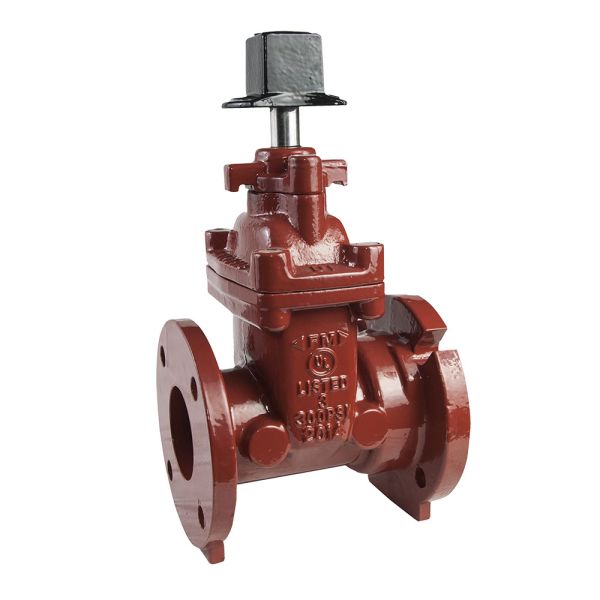

SOVAL 803-040FM Soval 4 Ductile Iron UL/FM Flanged x Mechanical Joint NRS Gate Valve

Product Description

The Soval 4 Ductile Iron UL/FM Flanged x Mechanical Joint NRS Gate Valve, MPN 803-040FM, is designed for reliability in various applications including plumbing, irrigation, industrial, and agriculture. This valve features a non-rising stem that ensures long-lasting performance. The product meets ANSI and AWWA standards and includes a fusion-bonded epoxy coating for a smooth finish. With UL listing and FM approval, it upholds high levels of quality and compliance.

• Complies with AWWA C515 standard
• UL Listed and FM Approved for 300 PSI
• Certified to NSF / ANSI 61 & 372

Product Highlights

This gate valve is suitable for high-pressure systems and is ideal for both commercial and residential use.

Product Information

Standard Information

• MPN: 803-040FM
• Brand: SOVAL

Technical Specifications

• Complies with: AWWA C515 Standard
• Stem Type: Non-Rising Stem, Resilient Seat
• Stem Seal: Triple O-ring Stem Seal
• Mechanical Joint Ends: Conform to ANSI B16.1, Class 125
• Approvals: UL Listed and FM Approved 300 PSI
• Certifications: Certified to NSF / ANSI 61 & 372
• Working Temperature: 42-180 F
• Working Pressure: 300 PSI
