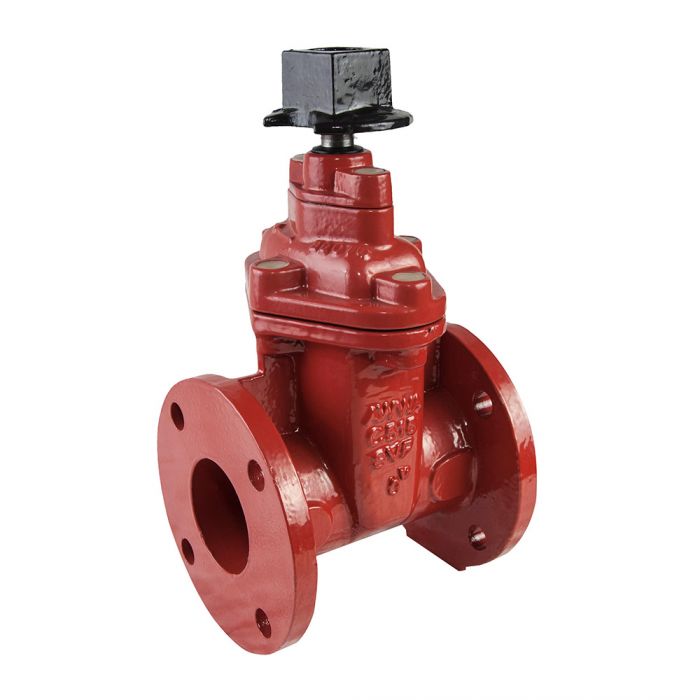

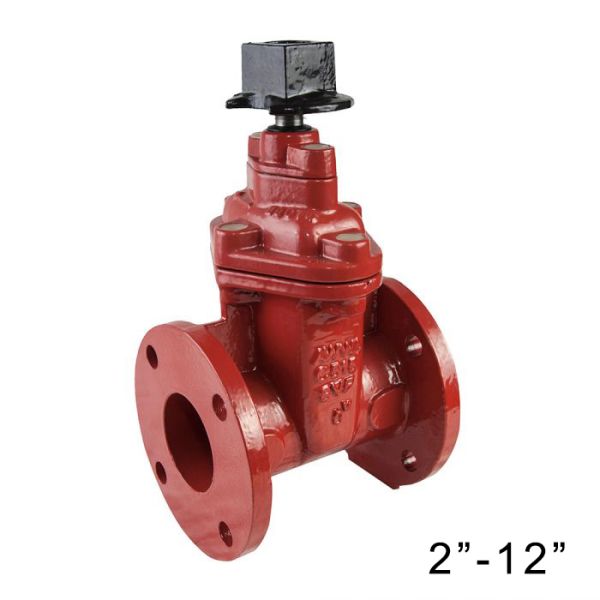

SOVAL 801-040F Ductile Iron Flanged AWWA C-515 Gate Valve

Product Description

The SOVAL 801-040F is a resilient seated gate valve designed for waterworks applications. This valve meets AWWA C515 standards and is built with a body, bonnet, and wedge made of high-strength ductile iron. The wedge is coated with EPDM rubber for durability, while the stem and bolting are made from stainless steel. The entire valve is coated with fusion bonded epoxy on both the interior and exterior to comply with AWWA C550 standards. It is flanged to ANSI B16.1, Class 125.

• Constructed with high strength ductile iron
• Flanged to ANSI B16.1, Class 125
• Fusion bonded epoxy coated interior and exterior to AWWA C550 Standard

Product Highlights

The SOVAL 801-040F valve is ideal for use in water distribution systems, providing reliable performance and longevity.

Product Information

Standard Information

• Material: Ductile Iron
• Flange Standard: ANSI B16.1, Class 125

Technical Specifications

• Wedge Material: EPDM Rubber
• Stem and Bolting Material: Stainless Steel
• Coating: Fusion Bonded Epoxy
• Valve Standard: AWWA C515
• Coating Standard: AWWA C550
• Weight: 63.9 lbs
