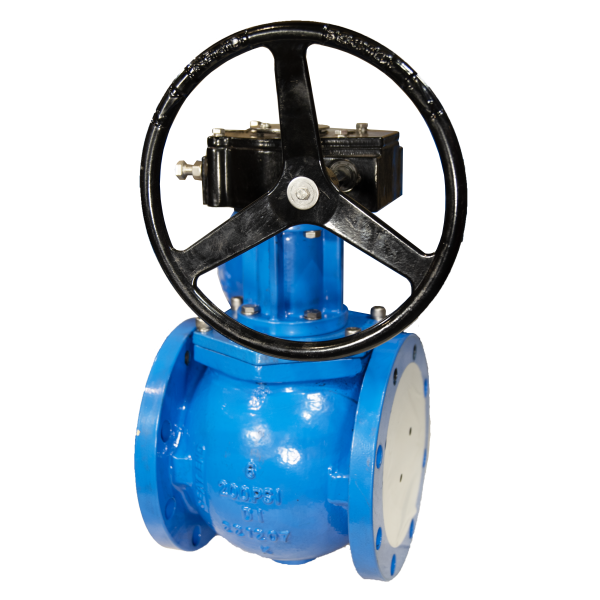

SOVAL 1030-040 Series Ductile Iron Flanged Plug Valve

Product Description

The SOVAL 1030-040 Series Ductile Iron Flanged Plug Valve is built from ASTM A536 grade 65-45-12 ductile iron. The valve's body and bonnet feature a fusion-bonded epoxy coating on both the interior and exterior for added durability. Rated for pressures up to 200 PSI, this valve comes with ANSI B16.1 150# flanges, making it suitable for a variety of piping systems. It includes a V-Type self-adjusting packing and features a fully encapsulated EPDM rubber plug with a round port through twelve. Operation can utilize either a travel nut actuator or a worm gear operator.

• Constructed from ASTM A536 grade 65-45-12 ductile iron.
• Features fusion-bonded epoxy coating on the body and bonnet.
• Rated for operation at up to 200 PSI.

Product Highlights

This valve is engineered for pressure control and efficient flow regulation in various industrial and commercial applications.

Product Information

Standard Information

• Valve Type: Flanged Plug Valve
• Corrosion Protection: Fusion-bonded epoxy coated

Technical Specifications

• Material: ASTM A536 grade 65-45-12 ductile iron
• Flange Class: 125 flanges
• Working Pressure: 200 PSI
• Operating Temperature (EPDM): fourteen degrees Fahrenheit to two hundred forty-eight degrees Fahrenheit
• Operating Temperature (NBR): fourteen degrees Fahrenheit to one hundred eighty degrees Fahrenheit
• Seat Material: Minimum ninety-five percent pure nickel
• Shaft Seal: Multiple V-Ring type
• Plug Design: Fully rubber coated up to twelve; fourteen to twenty-four have a cylindrical rubber sealed surface
• Bearing Material: Sintered SS316, oil impregnated
• Standard: AWWA C517 standard
