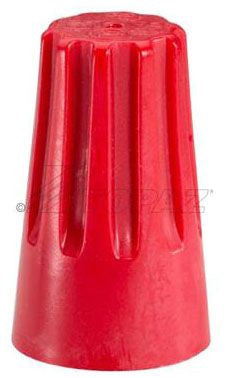

Southwire W86R1 Red Wire Connector

Product Description

The SOUTHWIRE W86R1 is a red wire connector designed for making secure, reliable electrical connections in residential and light commercial wiring applications. Wire connectors of this type twist onto stripped conductors to create a tight mechanical and electrical bond without soldering. The red color coding indicates a specific wire gauge range, allowing electricians to quickly select the correct connector size on the job. These connectors are a staple in electrical rough-in work, fixture installation, and panel wiring performed by licensed electricians and qualified tradespeople.

Red wire connectors in the TPZ series are suited for use in residential wiring, commercial tenant improvements, and industrial electrical installations where NEC-compliant splicing methods are required. They are commonly used when joining solid or stranded copper conductors during device, fixture, and junction box work. The W86R1 is typically sold in bulk quantities, making it practical for high-volume electrical contractors and service technicians who need a consistent supply on hand.

Key Features

• Red color coding for quick gauge-range identification on the job site
• Twist-on design creates a secure mechanical and electrical splice without solder
• Suited for use in junction boxes, fixture installations, and general wiring splices
• Bulk pack format supports high-volume electrical contracting workflows

Compatibility

Designed as a standard twist-on wire connector for use with copper conductors in residential and commercial electrical wiring applications per applicable NEC requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code and applicable local codes. Always de-energize the circuit at the breaker and verify absence of voltage with a meter before making or modifying any splice. Strip conductors to the appropriate length, twist the connector clockwise until snug, and confirm the connection is secure with a firm tug on each conductor. Do not over-tighten to the point of damaging conductor strands.

Technical Specifications

• Color: Red
• Weight: 52 pounds
• UPC: 75133830600

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: W86R1
