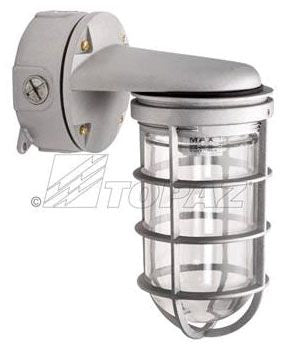

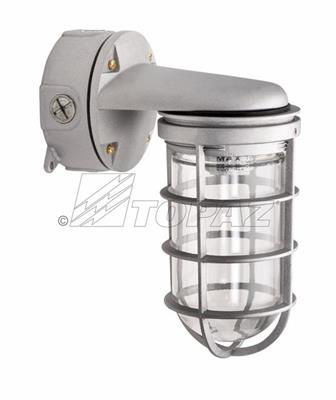

Southwire VFW100W50CG Vaporproof Wall Mount with Cage

Product Description

The SOUTHWIRE VFW100W50CG is a vaporproof wall mount light fixture with a protective cage, designed for use in wet, damp, and hazardous environments where standard fixtures are not rated for service. Built from copper-free aluminum construction, this fixture delivers durable, corrosion-resistant performance in demanding conditions. The 0.5 inch threaded entry fits standard conduit connections and makes installation straightforward for licensed electricians working on commercial or industrial job sites. The cage provides impact protection for the lamp in areas where physical contact or debris is a concern. cULus listed for verified safety compliance.

This fixture is suited for wet-location and vaporproof applications including job sites, warehouses, utility rooms, covered outdoor areas, and other environments subject to moisture, dust, or inclement weather. The wall mount configuration positions the fixture against vertical surfaces where ceiling mounting is not practical. The included protective cage shields the lamp envelope from accidental contact or breakage in high-traffic work areas. The copper-free aluminum housing resists corrosion in humid or chemically active environments. Thread sizes across the product line range from 0.5 inch to 0.75 inch, providing flexibility for different conduit installations.

Key Features

• Copper-free aluminum construction for corrosion resistance in wet and damp locations
• Protective cage included to shield lamp from impact and accidental contact
• 0.5 inch threaded conduit entry for standard electrical connections
• cULus listed, meeting rigorous safety and performance standards
• Wall mount design for vertical surface installation where ceiling mounting is not feasible
• Suitable for job sites, industrial facilities, and covered outdoor environments

Compatibility

Designed as an OEM-style replacement or direct installation vaporproof wall mount fixture for wet and damp location applications requiring a 0.5 inch threaded conduit entry.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage before making any wiring connections. The 0.5 inch threaded hub accepts standard conduit fittings; use appropriate wet-location conduit seals where required by code. Do not exceed the fixture lamp wattage rating marked on the label.

Technical Specifications

• Conduit Entry Size: 0.5 inches
• Housing Material: Copper-free aluminum
• Weight: 19 pounds
• Listing: cULus
• UPC: 751338852372

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: VFW100W50CG
