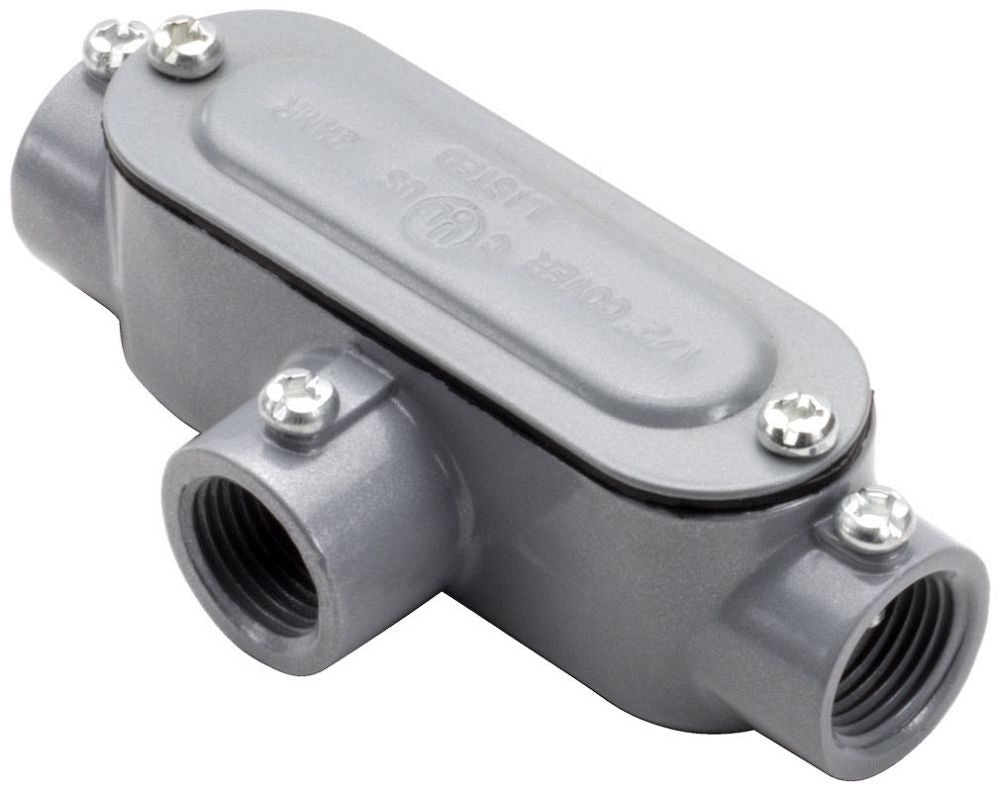

Southwire T5SSCG 1-1/2 in Aluminum Emt Rigid T-body

Product Description

The SOUTHWIRE T5SSCG is a 1-1/2 inch aluminum T-body conduit body designed for use with EMT and rigid conduit systems. Conduit bodies of this type provide access points for wire pulling, splicing, and routing changes in electrical conduit runs. The T-configuration allows conductors to exit in three directions, making it well suited for branch points in a conduit system. The aluminum construction keeps weight low while providing corrosion resistance appropriate for a range of installation environments. Licensed electricians and electrical contractors install this fitting as part of raceway assemblies in commercial and industrial wiring systems.

This T-body is rated for use with 1-1/2 inch EMT and rigid metallic conduit, making it applicable to branch circuit and feeder runs in commercial buildings, industrial facilities, and infrastructure projects. The T-body form factor is a common choice where a conduit run must split or where a pull point is needed at a directional change. It is compatible with standard conduit hubs and locknuts at each entry point.

Key Features

• T-body configuration provides three conduit entry points for branching or pull access
• Aluminum construction offers corrosion resistance and reduced weight compared to iron fittings
• Compatible with both EMT and rigid metallic conduit at 1-1/2 inch trade size
• Removable cover plate allows access for wire pulling and conductor inspection

Compatibility

Designed as an OEM-style fitting for use with 1-1/2 inch EMT and rigid metallic conduit systems in standard electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 314 and local electrical codes. De-energize all circuits completely before opening or working inside any conduit body. Ensure all conduit connections are properly secured and that the conduit body cover is reinstalled and fastened before re-energizing the circuit. Do not exceed the conduit body fill capacity as calculated per NEC conductor fill tables.

Technical Specifications

• Trade Size: 1-1/2 inches
• Body Type: T-Body
• Material: Aluminum
• Conduit Type Compatibility: EMT and Rigid Metallic Conduit
• Weight: 11 pounds
• UPC: 75133883796

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: T5SSCG
