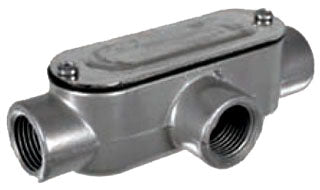

Southwire T4CG Rigid Conduit Body Power 1-1/4 in

Product Description

The Southwire T4CG is a rigid conduit body designed for access to conductors. It features a one and one-fourth inch hub, and has three hubs in total. The body is made from die-cast aluminum with a neoprene rubber gasket. The design allows for easy pulling and slicing of conductors during maintenance operations.

• Access opening is located on the side.
• Suitable for use in concrete installations.
• UL and CSA approved for safety and compliance.

Product Highlights

Access to conductors for maintenance and installation tasks is simplified with this conduit body. The robust material and design ensure a long-lasting solution for various electrical needs.

Product Information

Standard Information

• Manufacturer Name: Southwire
• UPC: 751338217614

Technical Specifications

• Approval: UL, CSA
• Configuration: T
• Cover Type: Stamped Steel
• Hub Location: Tee
• Hub Size: 1-1/4 Inch
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number Of Hubs: 3
• Dimensions: 8.528 in x 2.49 in x 2.77 in
• Used On: Rigid Conduit
