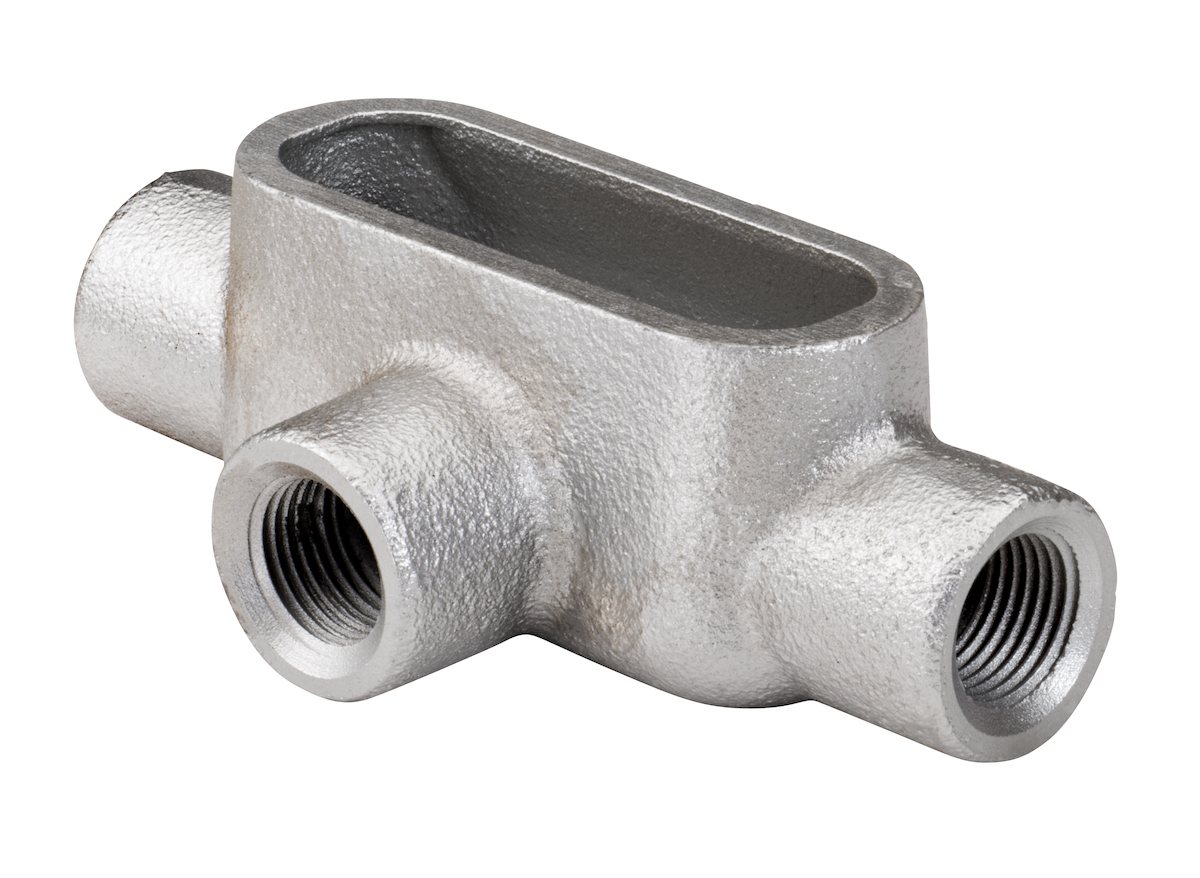

Southwire T3G7 Topaz 1 Inch Rigid Conduit Body Threaded T Type Form 7 (1 Inch)

Product Description

Southwire T3G7 is a 1-inch Topaz T-type (Form 7) conduit body constructed of gray iron for rigid conduit systems. It provides a threaded T access point with NPT tapered hubs for pulling and splicing conductors. When installed with cover and gasket the conduit body meets NEMA FB 1 and NEMA 3R raintight requirements. It is suitable for use in Class 1 Division 2 hazardous locations per NEC 2014 501.10(B)(4).

• Threaded T (Form 7) conduit body with NPT tapered hubs for 1 inch rigid conduit
• Constructed of gray iron; provides access for pulling and splicing conductors
• Meets NEMA FB 1 / NEMA 3R raintight when installed with cover and gasket; suitable for Class 1 Division 2 per NEC 2014 501.10(B)(4)

Product Highlights

1-inch Form 7 threaded T conduit body for rigid conduit; NEMA FB 1 / NEMA 3R raintight with cover and gasket; suitable for Class 1 Division 2 locations per NEC 2014 501.10(B)(4).

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: T3G7

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: T3G7
• Product Name: Topaz 1 Inch Rigid Conduit Body, Threaded T Type (Form 7)
• Manufacturer: Southwire
• Size: 1 inch
• Material: Gray iron
• Form: Form 7 (T type)
• Type: Threaded T conduit body
• Hub Type: NPT tapered hubs (threaded openings)
• Enclosure Rating: NEMA FB 1; NEMA 3R (raintight) when installed with cover and gasket
• Hazardous Location Suitability: Suitable for Class 1 Division 2 per NEC 2014 501.10(B)(4)
• Category: Commercial, Industrial, Residential Fittings
• SKU: SOUTHWIRE-T3G7
• UPC: 751338869370
• GTIN: 751338869370
• Case Pack: 1
