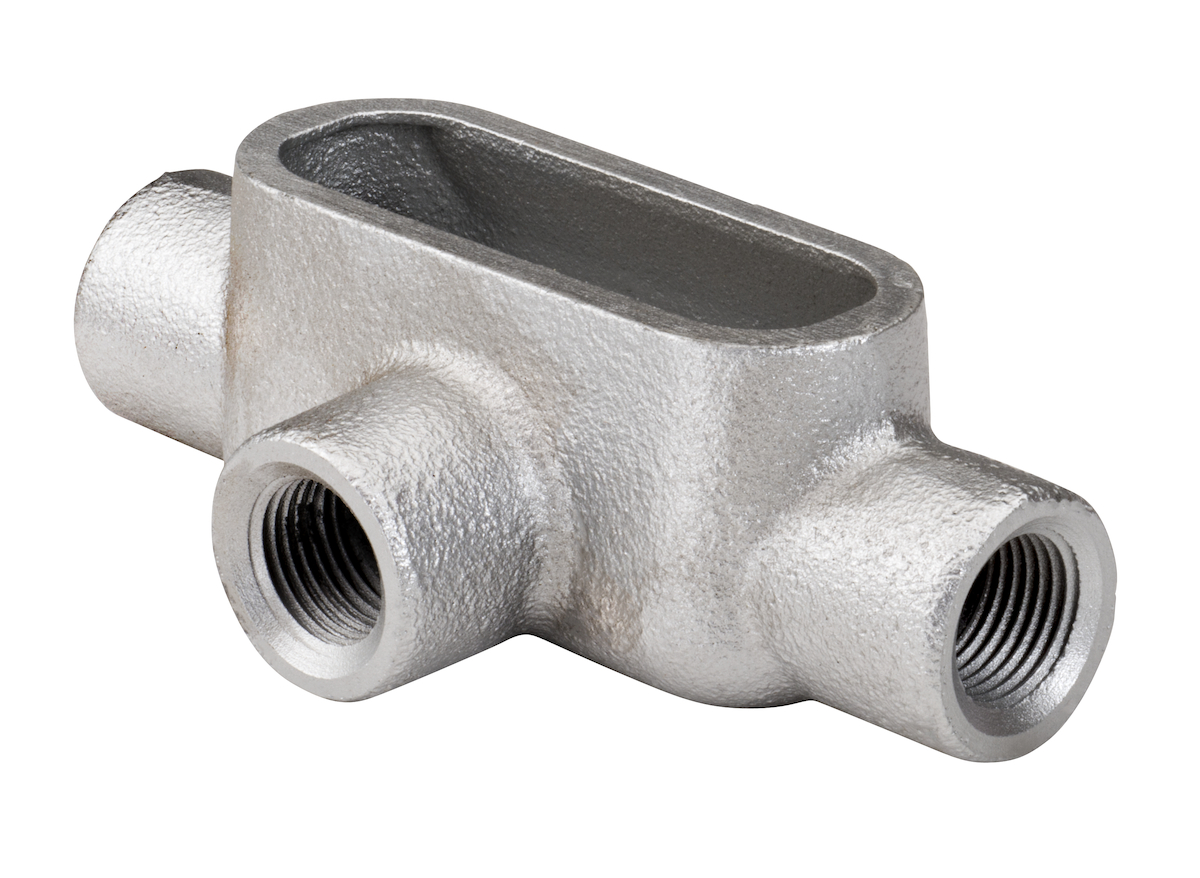

Southwire T2G7 T Type FM 7 Conduit Body (3/4 Inch)

Product Description

The Southwire T2G7 is a 3/4 inch T type FM 7 conduit body made of gray iron that provides access for pulling, splicing, and maintenance in rigid conduit systems. It features NPT tapered hubs for threaded connections and supports branching via its T configuration. The unit meets NEMA FB 1 and NEMA 3R raintight criteria when installed with a cover and gasket and is suitable for Class 1 Division 2 locations per NEC 2014 501.10(B)(4).

• NPT tapered hubs for threaded conduit connections
• Gray iron construction; 3/4 inch T type (Form 7) conduit body for rigid conduit
• Meets NEMA FB 1 / NEMA 3R (raintight with cover and gasket); suitable for Class 1 Division 2 per NEC 2014 501.10(B)(4)

Product Highlights

3/4 inch T type Form 7 conduit body for conductor access, splicing, and branching

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: T2G7

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: T2G7
• Category: Commercial, Industrial, Residential Fittings
• Material: Gray iron
• Conduit Size: 3/4 inch
• Type: T Type (Form 7)
• Hubs: NPT tapered hubs (threaded)
• NEMA Rating: NEMA FB 1 / NEMA 3R (raintight when installed with cover and gasket)
• Hazardous Location Suitability: Suitable for Class 1 Division 2 when installed per NEC 2014 501.10(B)(4)
• Application: Provides conduit access for pulling, splicing and maintenance in rigid conduit systems
• UPC: 751338869363
• Case Pack: 1
