Southwire so10/3blkstr600v250c Soow 10 Awg 3C Cord 600V 250ft

Product Description

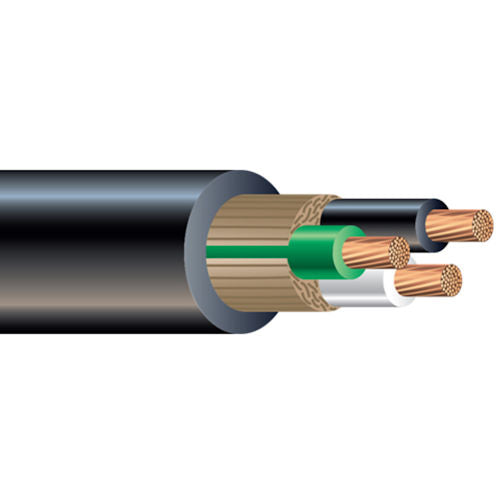

The SOUTHWIRE so10/3blkstr600v250c is a Type SOOW flexible power cord built for demanding portable power applications in commercial and industrial environments. It features three 10 AWG annealed stranded bare copper conductors arranged in a Black, White, and Green configuration, rated at 600 volts. The conductors are insulated with premium-grade EPDM and jacketed with a water-resistant Carolprene compound, giving the cord a wide temperature operating range of -40 to 90 degrees C. It ships on a 250-foot spool, suitable for job-site cutting or direct deployment in tool and equipment wiring. Electricians and maintenance technicians working with portable tools, portable appliances, and small motor-driven machinery reach for this cord type as a standard solution.

This cord is designed for use in portable tool and equipment wiring, portable appliance connections, and small motor and associated machinery installations. The SOOW designation indicates an oil-resistant jacket and insulation rated for outdoor and wet-location use, making it appropriate for construction sites, industrial facilities, and service environments where cords are subject to mechanical abuse, oil exposure, and repeated flexing. The 250-foot spool provides enough length for large runs or multiple job-site cuts.

Key Features

• Type SOOW construction with water-resistant Carolprene jacket rated for wet, oily, and outdoor locations
• 104/30 stranding per conductor delivers flexibility and resistance to fatigue from repeated coiling and uncoiling
• Premium-grade EPDM insulation supports a temperature range of -40 to 90 degrees C
• Three-conductor layout: Black, White, and Green for hot, neutral, and ground wiring
• 600-volt rating suitable for single-phase portable power circuits at standard commercial voltages
• 250-foot spool format for job-site cutting or full-run installations

Compatibility

Designed as a standard Type SOOW flexible cord replacement or new-installation supply for portable tools, portable appliances, and small motor-driven equipment requiring a 10 AWG 3-conductor 600-volt rated cord.

Installation Notes

Installation and termination of flexible power cord should be performed by a licensed electrician in accordance with the National Electrical Code (NEC), particularly Article 400 governing flexible cords and cables. De-energize and lock out the circuit before making any terminations. Use appropriately rated strain relief connectors at all entry points to prevent tension from reaching the termination points. Do not exceed the current-carrying capacity or temperature rating specified for this conductor size and cord type.

Technical Specifications

• Voltage Rating: 600 volts
• Conductor Size: 10 AWG
• Number of Conductors: 3
• Conductor Material: Annealed Stranded Bare Copper
• Stranding: 104/30
• Insulation Material: Premium Grade EPDM
• Jacket Material: Water Resistant Carolprene
• Jacket Color: Black
• Temperature Rating: -40 to 90 degrees C
• Cord Type: SOOW
• Length: 250 feet
• Outer Diameter: 0.66 inches

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: so10/3blkstr600v250c
