Southwire SCC-3816 C Style Steel Beam Clamp 3/8-16 25 Pack

Product Description

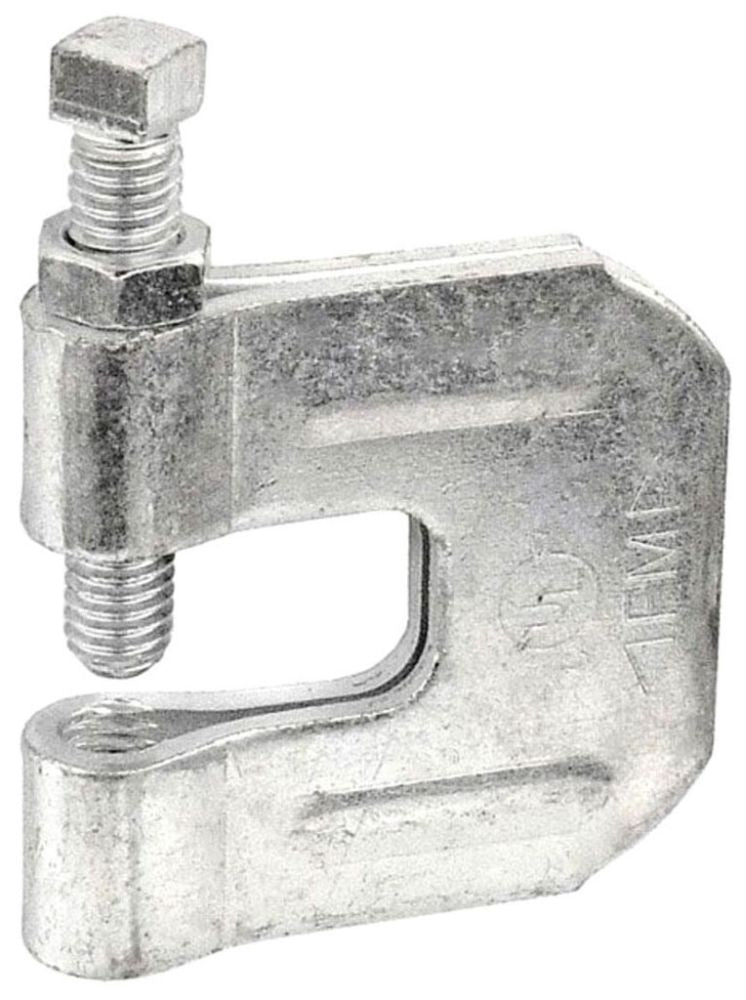

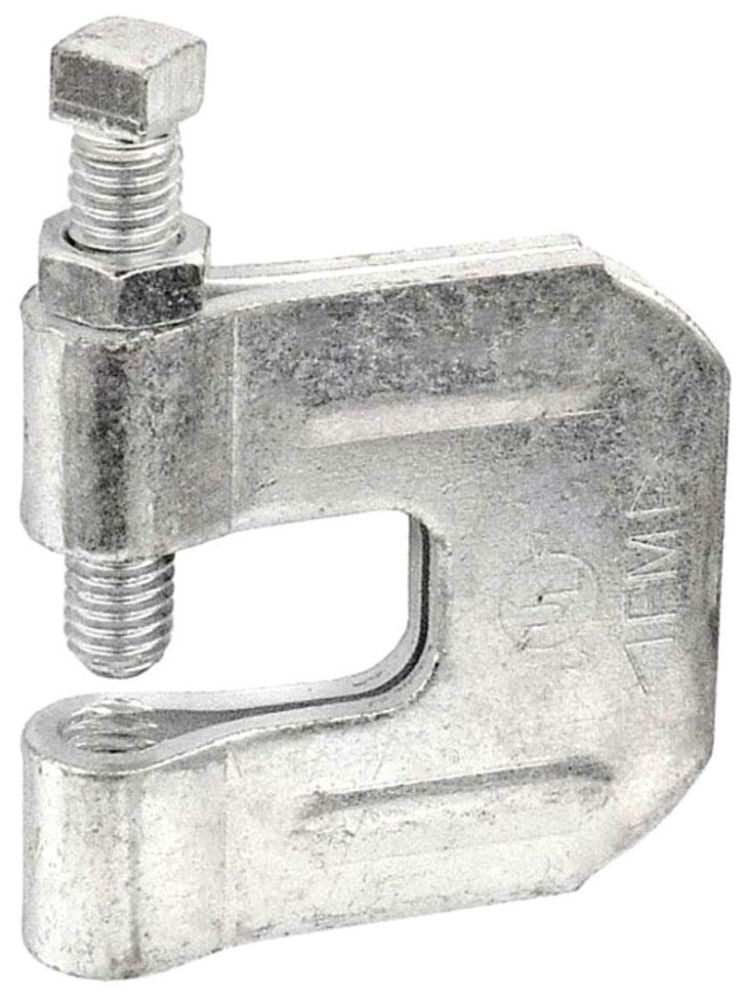

The SOUTHWIRE SCC-3816 is a C style galvanized steel beam clamp engineered for vertical load applications in commercial and industrial electrical installations. It threads onto 3/8-16 threaded rod and attaches directly to metal beams, purlins, channels, and angle irons to provide a secure structural anchor point. Electricians use these clamps to support conduit boxes, enclosures, and fixtures suspended from threaded rod systems. The galvanized steel construction resists corrosion in typical indoor and sheltered outdoor environments. Each clamp measures 0.38 inches in length, 0.19 inches in height, and 0.20 inches in width, keeping the overall footprint compact for tight framing bays.

The SCC-3816 is suited for residential, commercial, and light industrial electrical work where support hardware must attach to structural steel members. Common applications include suspending junction boxes, conduit hangers, and fixture assemblies from wide-flange beams, purlins, and channel iron. The 3/8-16 thread size is among the most widely used rod sizes in standard support systems. This SKU ships as a 25-pack, making it a practical quantity for rough-in work on larger projects.

Key Features

• C style profile seats securely on the flange of beams, purlins, channels, and angle irons
• 3/8-16 thread accepts standard threaded rod for suspending boxes, enclosures, and fixtures
• Galvanized steel construction provides corrosion resistance for long-term durability
• Compact dimensions (0.38 x 0.20 x 0.19 inches) fit in tight structural cavities
• 25-pack quantity reduces per-unit cost on multi-point suspension installations
• Manufactured in the United States

Compatibility

Designed as a structural attachment for 3/8-16 threaded rod systems, compatible with metal beams, purlins, channels, and angle irons in standard commercial and industrial electrical support applications.

Installation Notes

Installation is typically performed by licensed electricians in accordance with NEC support and fastening requirements. De-energize all circuits in the work area before mounting hardware near live conductors or energized enclosures. Verify that the beam flange thickness and width fall within the clamp's rated seating range before applying vertical load. Do not use these clamps for overhead lifting or lateral load applications outside the rated vertical load direction.

Technical Specifications

• Thread Size: 3/8-16
• Material: Galvanized Steel
• Length: 0.38 inches
• Height: 0.19 inches
• Width: 0.20 inches
• Weight: 0.415 pounds
• Pack Quantity: 25
• Warranty: One Year Limited
• Country of Origin: United States

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: SCC-3816
