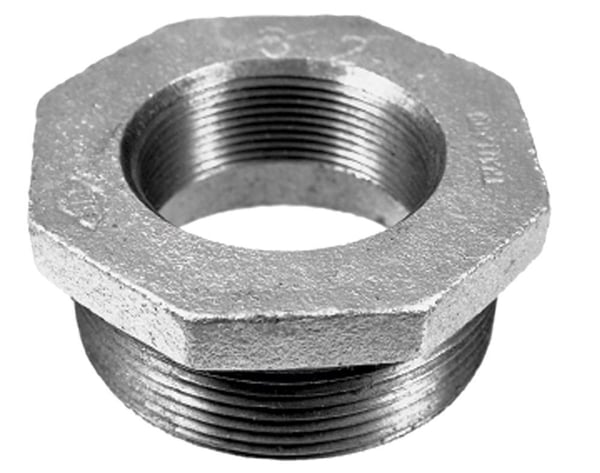

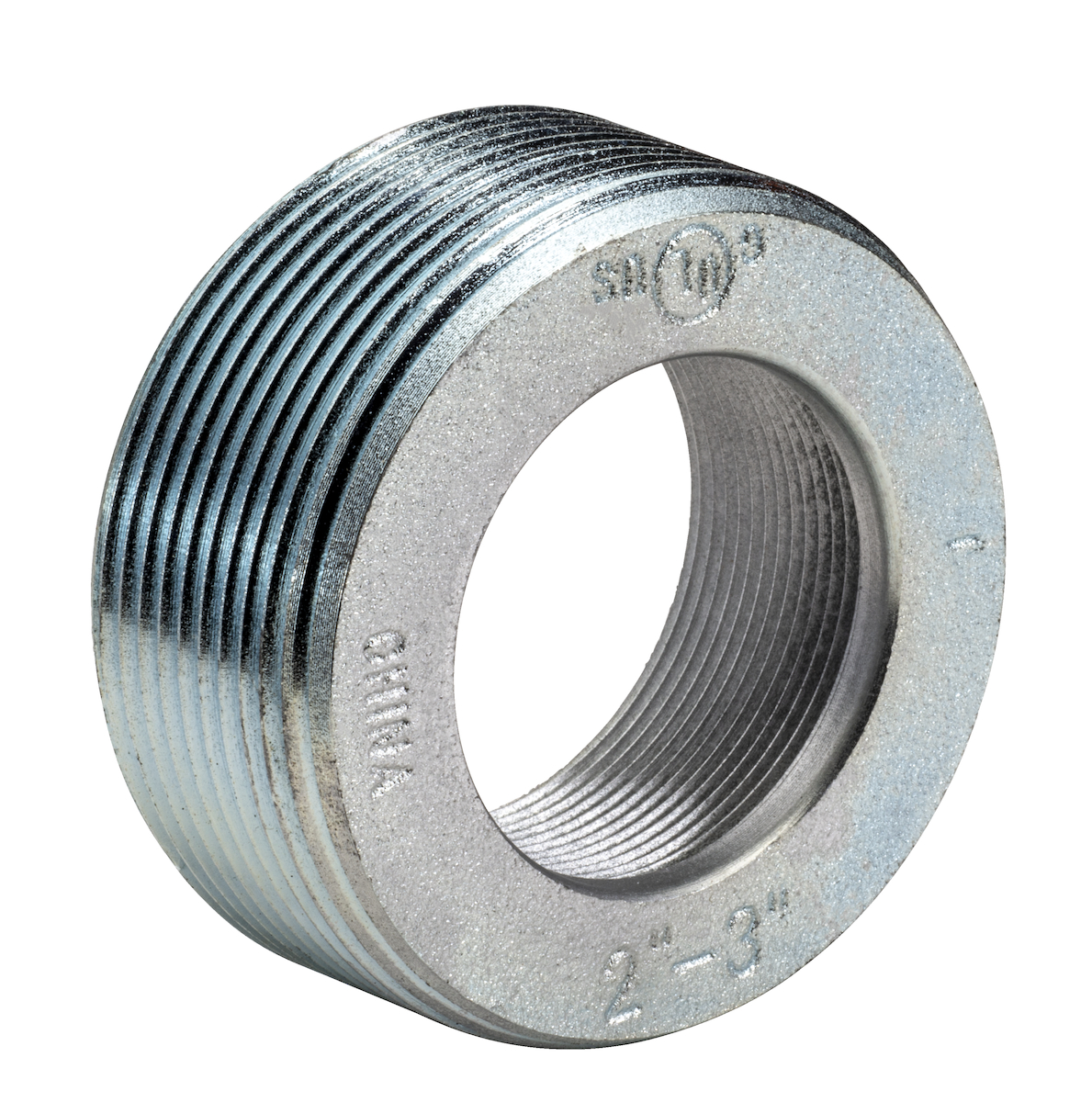

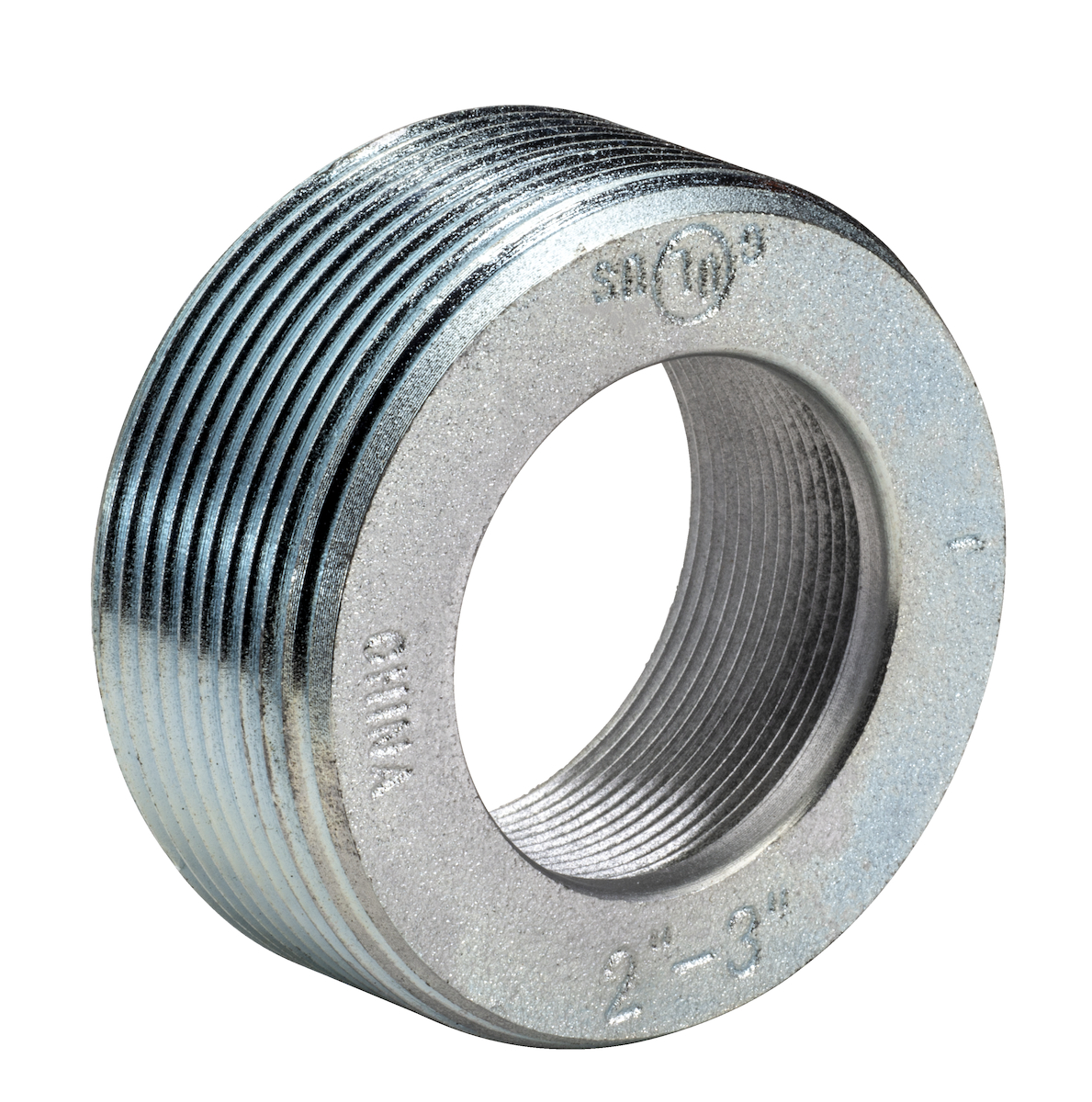

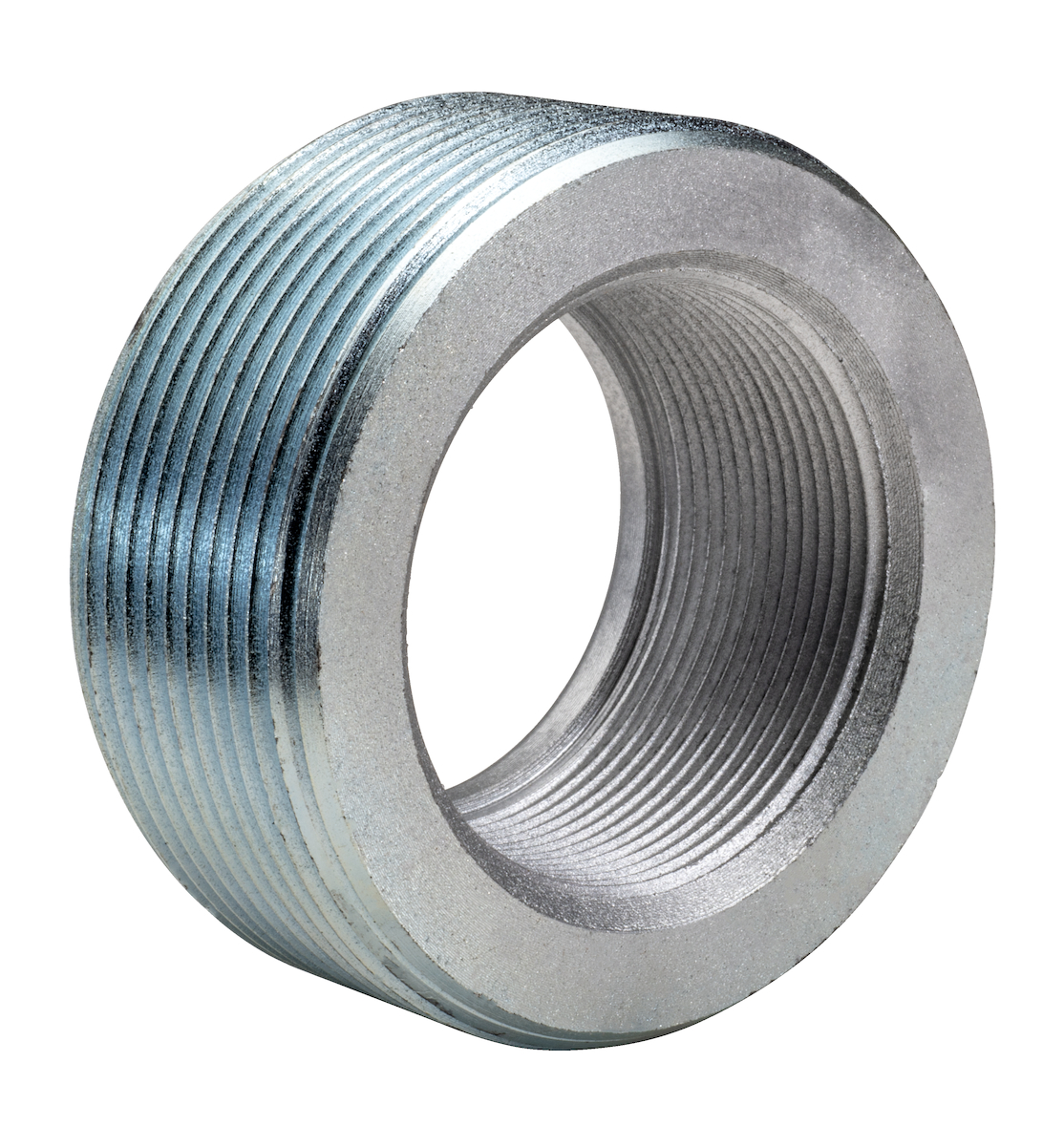

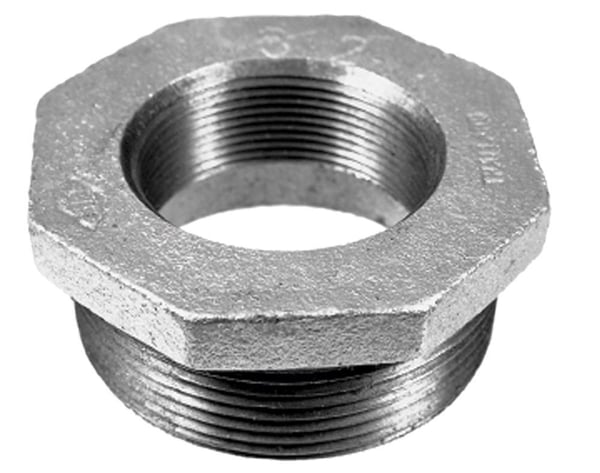

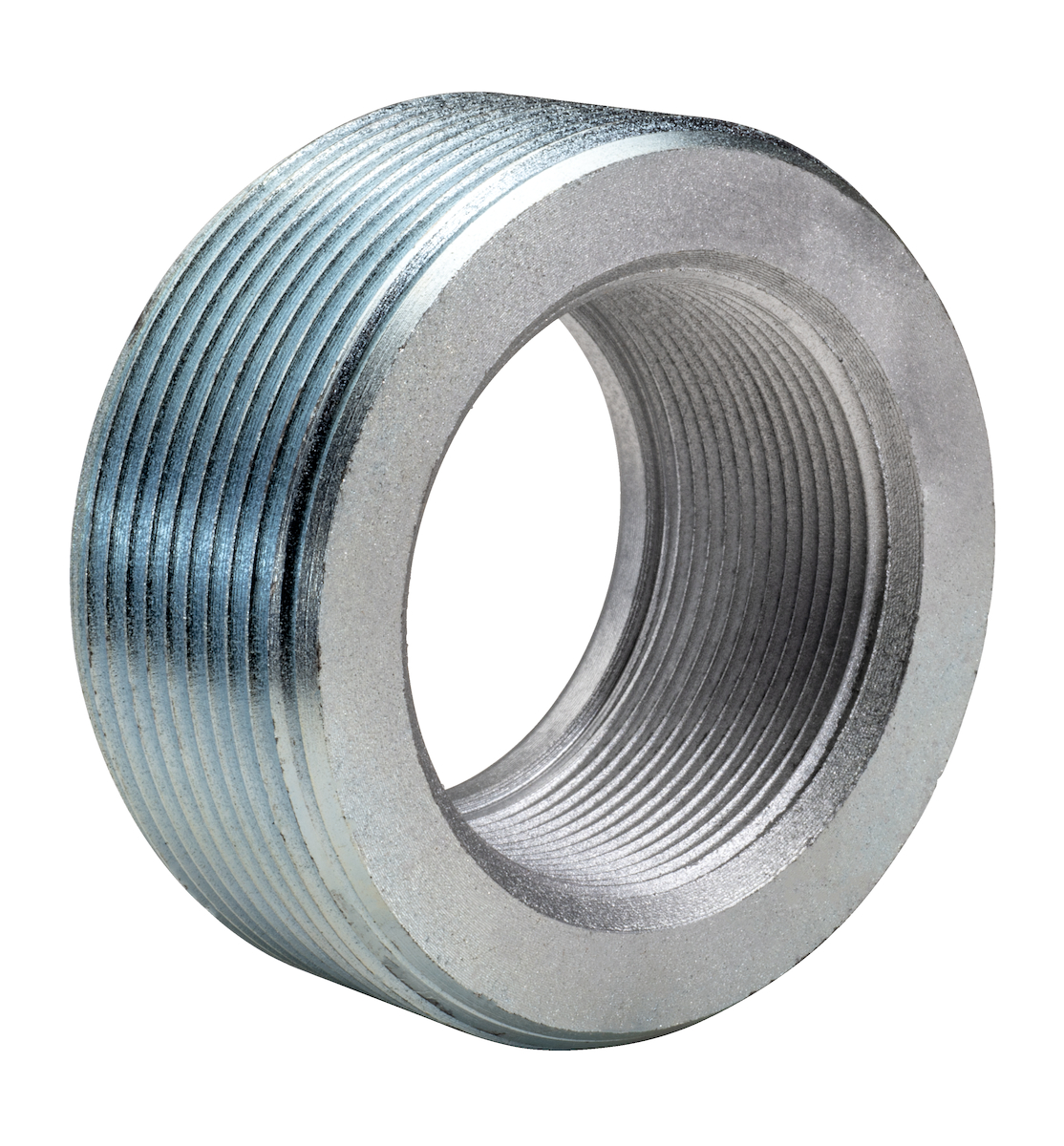

Southwire RB24 Conduit Reducing Bushing 3 x 2-1/2 Inch

Product Description

The SOUTHWIRE RB24 is a conduit reducing bushing designed to reduce the size of conduit hubs. It features a smooth and rounded integral bushing that offers conductor protection. Constructed from malleable iron, this threaded hex head bushing is suitable for use on IMC/Rigid conduit. Dimensions are 4.4 IN x 1.39 IN.

• Rounded bushing protects conductor
• Made from malleable iron
• Suitable for IMC/Rigid Conduit

Product Highlights

The Southwire RB24 reducing bushing reduces conduit hub size and protects conductors with its rounded design.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: RB24

Technical Specifications

• Large End Trade Size: 3 Inch
• Manufacturer Name: Southwire
• Material: Malleable Iron
• Product UPC: 751338202900
• Small End Trade Size: 2-1/2 Inch
• Type: Threaded Hex Head
• Used On: IMC/Rigid Conduit
• Trade Size: 3 x 2-1/2 in
• Application: For use to reduce the entry size of a run of threaded rigid and IMC conduit, dry location applications
• Finish: Zinc Plated
