Southwire RB20 Conduit Reducing Bushing 2-1/2x2

Product Description

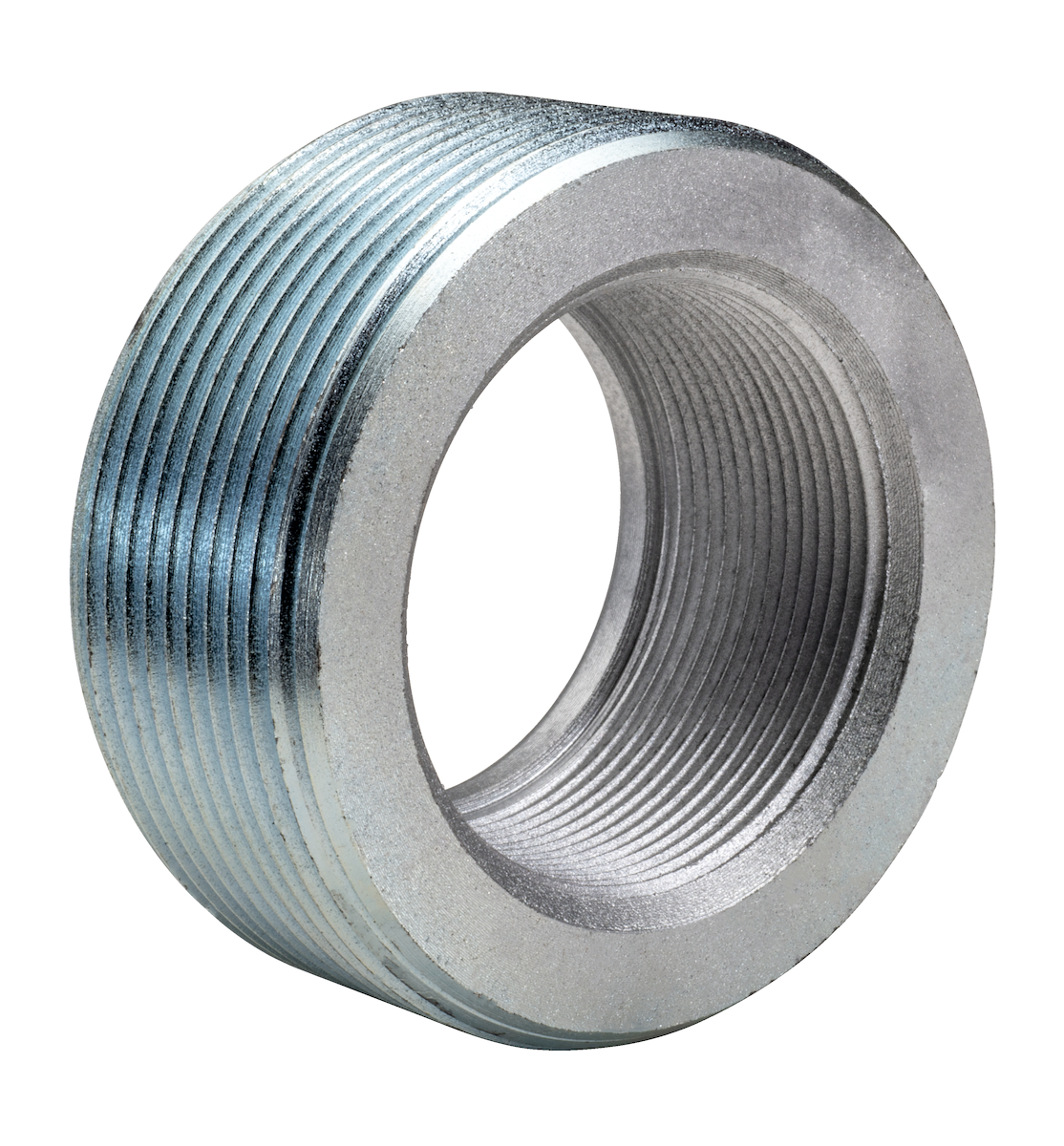

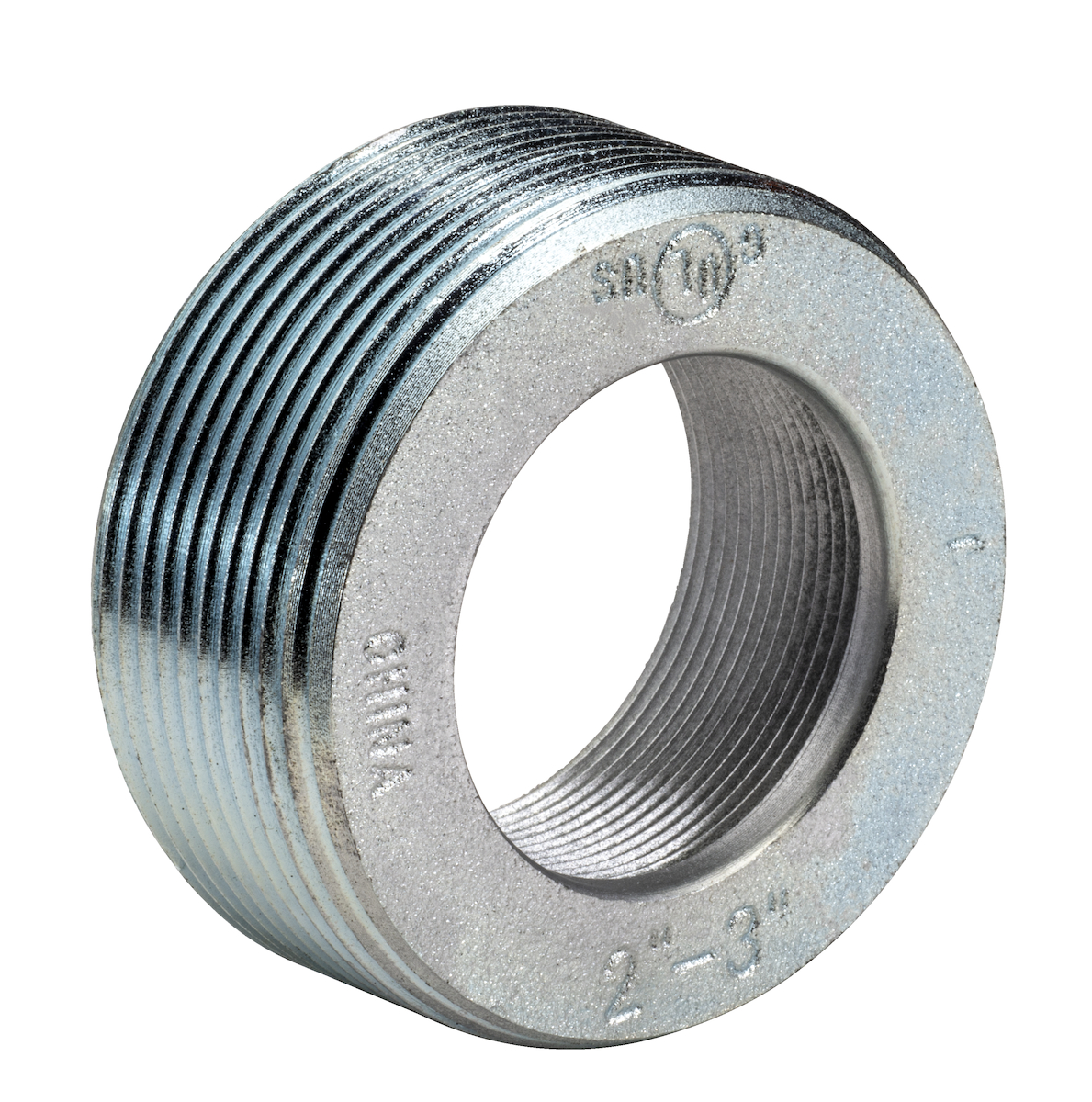

The SOUTHWIRE RB20 is a conduit reducing bushing designed to reduce the size of conduit hubs. The smooth and rounded integral bushing offers conductor protection. It is fabricated from high grade malleable iron with zinc plated finish. This bushing is suitable for use in dry locations.

• Rounded bushing protects conductor
• Made from high grade malleable iron
• Reduces the size of conduit hubs

Product Highlights

The SOUTHWIRE RB20 conduit reducing bushing is made from malleable iron and features a smooth, rounded design for conductor protection.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: RB20

Technical Specifications

• Large End Trade Size: 2-1/2 Inch
• Manufacturer Name: Southwire
• Material: Malleable Iron
• Product UPC: 751338202504
• Small End Trade Size: 2 Inch
• Type: Threaded Hex Head
• Used On: IMC/Rigid Conduit
• Finish: Zinc Plated
• Trade Size: 2-1/2 x 2 in
• Application: For use to reduce the entry size of a run of threaded rigid and IMC conduit, dry location applications
