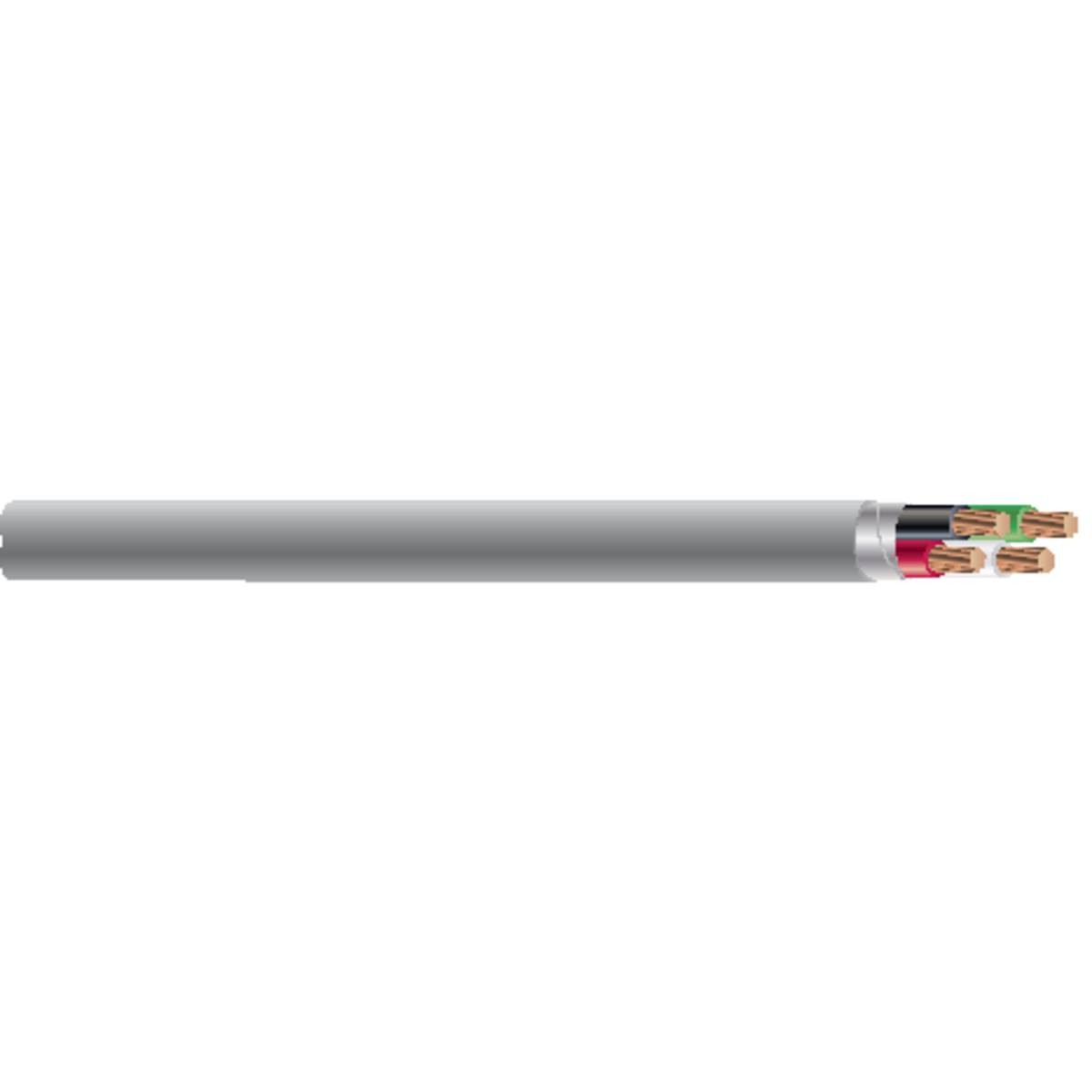

Southwire R40611-1A Multi-conductor Electronic Cable 300V 18 AWG 6 Conductor 1000R

Product Description

The Southwire R40611-1A is a Multi-conductor Electronic Cable with six 18 AWG bare stranded copper conductors. Rated for 300V and 60C, it features PVC insulation and a PVC jacket. This 1000 ft cable is suitable for remote control, signaling, and power-limited circuits, as well as security, sound, audio, and alarm systems.

• 18 AWG, 6 conductor stranded bare copper construction with overall foil shielding.
• Rated for 300V and 60C, suitable for riser applications (UL Type CMR).
• Features a rip cord for easy jacket removal and PVC insulation/jacket.

Product Highlights

Multi-conductor shielded riser cable for various low voltage and power-limited applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: R40611-1A
• Country of Origin: US

Technical Specifications

• Brand: Southwire
• Jacket Color: Gray
• UL Type: CMR
• Voltage Rating: 300V
• Stranding: 7
• Armor Type: None
• Conductor Size: 18 AWG
• Label Type: UL
• Temperature Rating: 60C
• Conductor Type: Stranded
• Number of Conductors: 6
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Insulation Material: PVC
• Overall Shielding Type: Foil
• Conductor Shielding Type: Unshielded
• Cable Type: CL3R Multi-Conductor Shielded
• Series: 31SR
• Length: 1000 ft
• Certifications: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, NEC Compliant, UL 444, 13
• Application: Remote Control, Signaling, Power Limited Circuits, Security, Sound, Audio, Speaker Cable, Public Address, Intercom, Sound Reinforcement, Alarm, Access Control Circuits, Power Limited Controls
• UNSPSC: 26121517
• Shielding: Aluminum foil with 24 AWG tinned drain wire
• Rip Cord: Included
