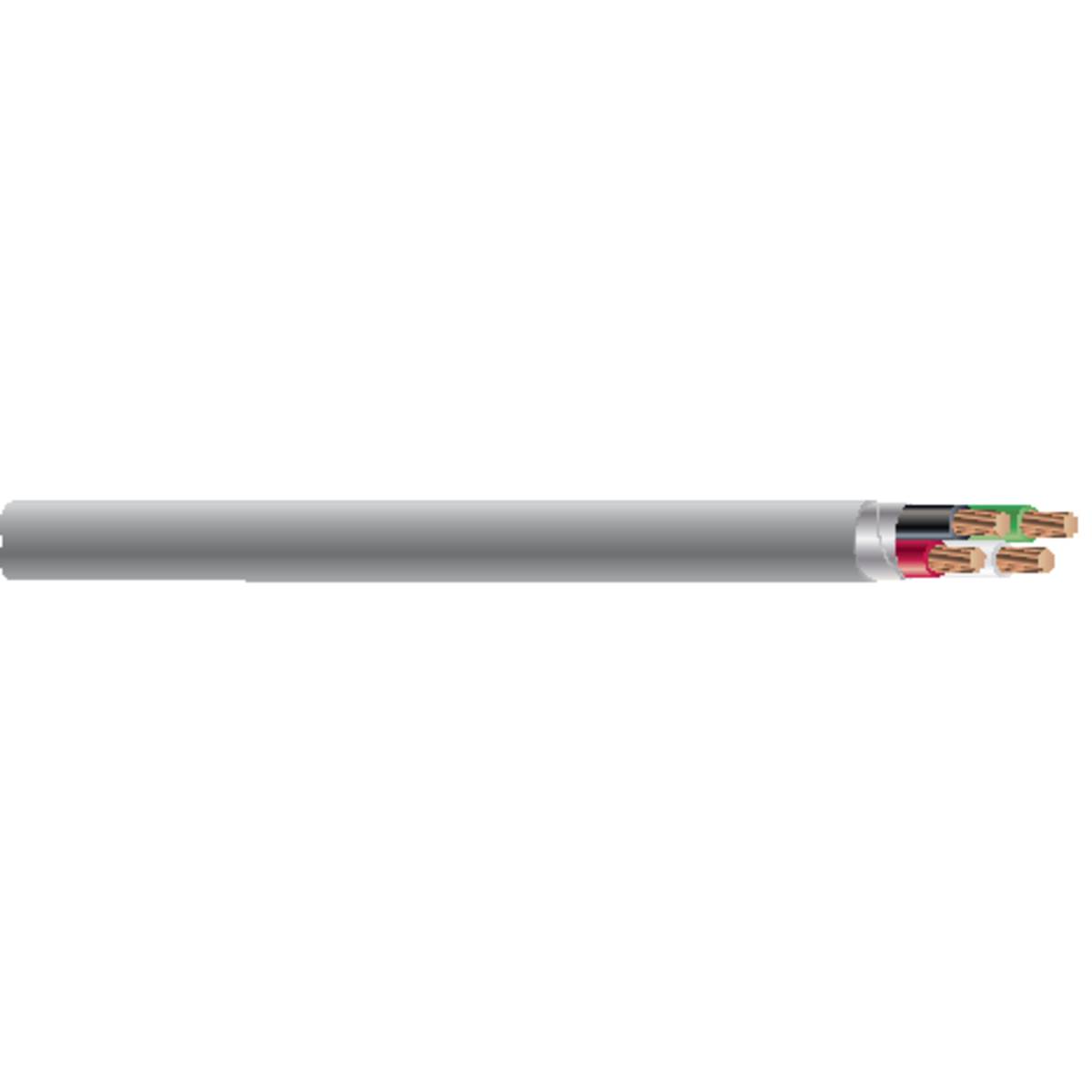

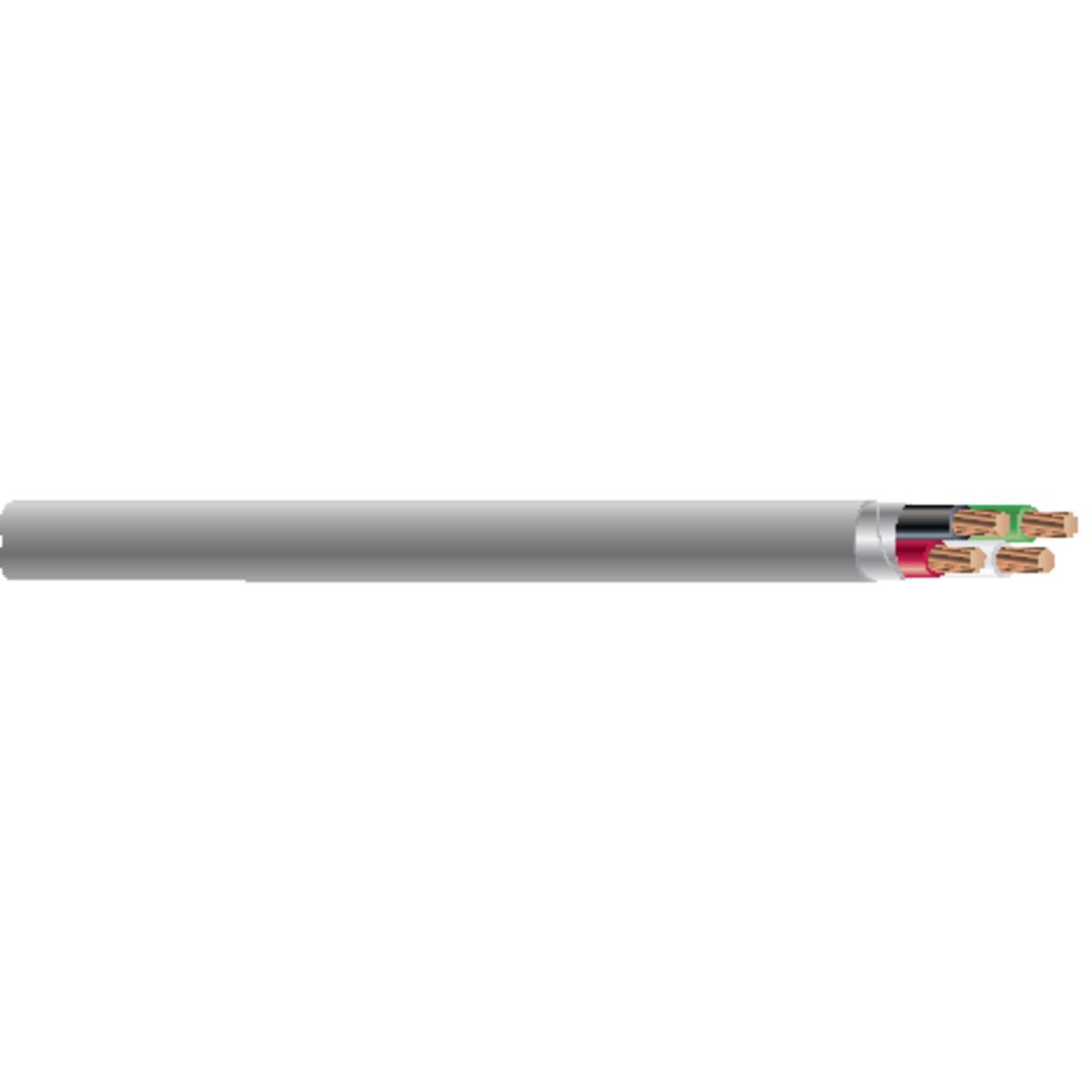

Southwire R40049-1A Unshielded Multi-Conductor Cable 300 VAC 18 AWG 4-Conductor 1000 Ft.

Product Description

The Southwire R40049-1A is an unshielded multi-conductor cable, Type CMR/CL3R, designed for general purpose low voltage and power limited systems. Featuring 18 AWG bare stranded copper with 4 conductors and a PVC jacket, this cable is suitable for Class 2 or Class 3 remote control, signaling circuits, and communications applications. It operates at 300 VAC and comes in a 1000 ft length.

• Ripcord included for simple jacket tear-back and removal
• Suitable for general purpose low voltage and power limited systems
• Applicable for Class 2 or Class 3 remote control or signaling circuits, or as communications cable

Product Highlights

Includes a ripcord for easy jacket tear-back and removal.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: R40049-1A
• Country of Origin: United States

Technical Specifications

• Conductor AWG: 18 AWG
• Conductor Material: Bare Stranded Copper
• Insulation Material: PVC
• Number of Conductors: 4
• Length: 1000 ft
• Cable Type: Type CMR/CL3R Multi-Conductor
• Series: 31UR
• Voltage Rating: 300 VAC
• Number of Strands: 7
• Certifications/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 1666, UL 444, UL 13, NEC Article 725, 800, Compliant
• Operating Temperature: 60 deg C
• Outside Diameter: 0.196 in
• Resistance: 6.92 Ohm
