Southwire R20007-1B multi-conductor electronic cable 300V 22 awg 2 conductor

Product Description

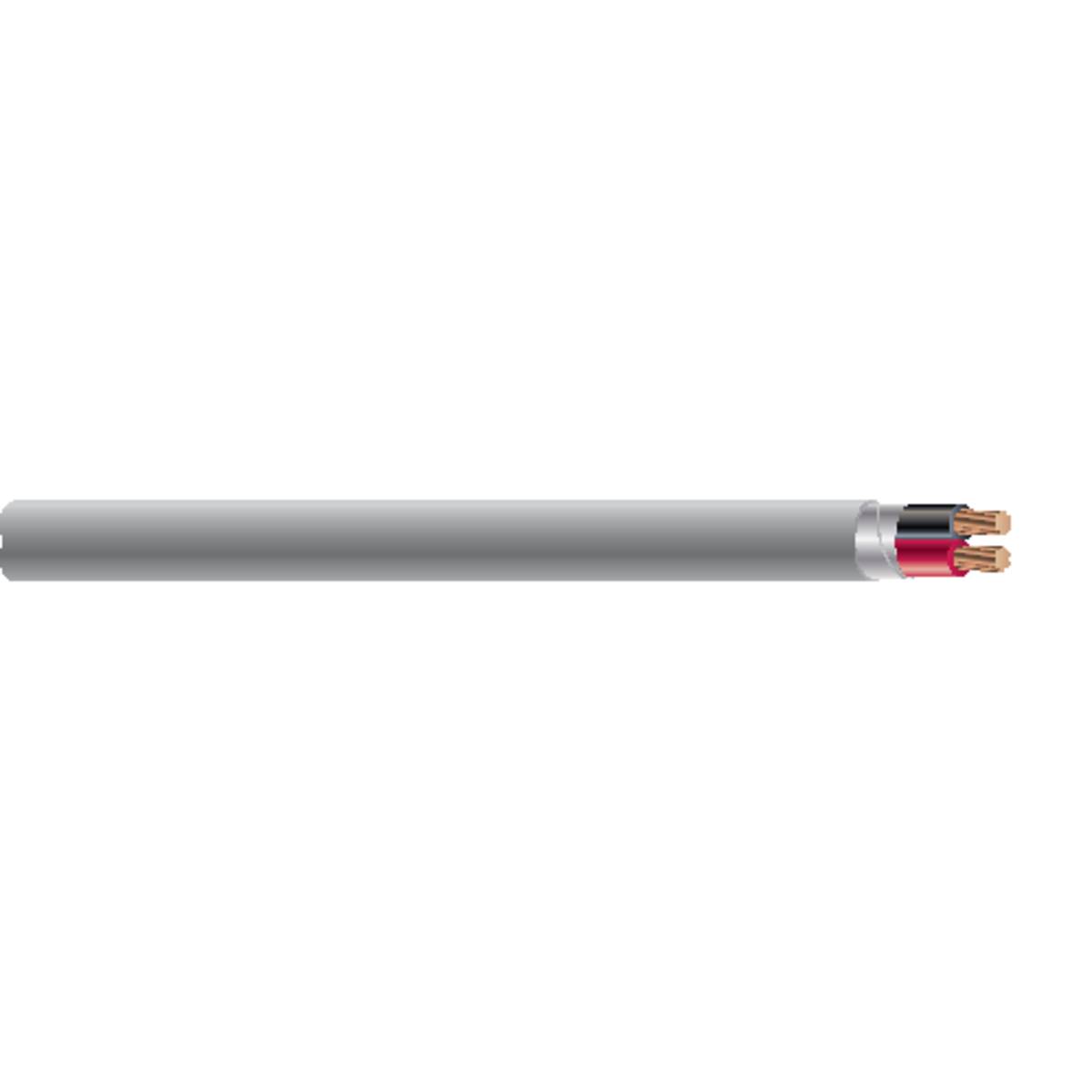

The SOUTHWIRE R20007-1B is a Type CL3R Multi-Conductor Shielded Riser Cable, Series 31SR, designed for 300 VAC applications. It features two 22 AWG bare stranded copper conductors with 7 strands, PVC insulation, and a PVC jacket. This cable has an outside diameter of 0.127 inches and is rated for 60 degrees C.

• Multi-conductor shielded construction grade riser rated.
• Ripcord included for simple jacket tear-back and removal.
• Suitable for remote control, signaling, and power limited circuits.

Product Highlights

Designed for remote control, signaling, power limited circuits, security, sound, audio, and alarm systems.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: R20007-1B
• Country of Origin: US

Technical Specifications

• Type: Type CL3R Multi-Conductor Shielded
• Conductor Type: Bare Stranded Copper
• Series: 31SR
• Length: 1000 ft
• Voltage Rating: 300 VAC
• Jacket Color: Gray
• Standard/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, NEC Compliant, UL 444, 13
• Temperature Rating: 60 deg C
• Application: Remote Control, Signaling and Power Limited Circuits, Security, Sound, Audio, Speaker Cable, Public Address, Intercom, Sound Reinforcement, Alarm and Access Control Circuits and Power Limited Controls Applications
• Category: Riser Rated Copper Category Cables
• UL Type: A CM Which Passes CSA FT4
• CSA Type: CMR
• Armor Type: None
• Conductor Metal: Bare Copper
• Jacket Material: PVC
• Insulation Material: PVC
• Overall Shielding Type: Foil
• Conductor Shielding Type: Unshielded
• Conductor Details: 22 AWG 7/.0094 BC, 2 Conductors Twisted
• Insulation Color: Black, Red
• Outside Diameter: 0.127 inches
