Southwire R-TB-125W SIMPush Rigid & IMC Push Install Type-T Conduit Body 1-1/4 Rigid & IMC Push Install Type-T Conduit Body

Product Description

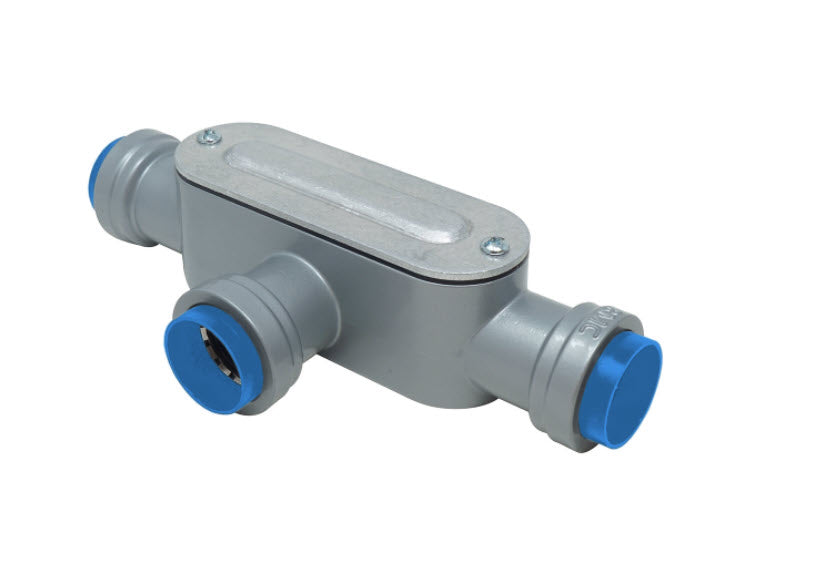

The Southwire R-TB-125W is a SIMPush rigid and IMC push install type-T conduit body. This product allows for quick and tool-less installation by simply pushing the fitting onto the conduit. It eliminates the need for threading conduit, making the installation process efficient.

• Corrosion resistant copper-free aluminum construction
• Compatible with threaded and non-threaded rigid and IMC conduit
• NEMA rating of 3S and IP66 for reliable protection

Product Highlights

The R-TB-125W ensures a solid grounding path while being reusable and tested for up to one hundred removal cycles. The powder-coated finish provides durability against harsh environments.

Product Information

Standard Information

• Brand: Southwire Company
• MPN: R-TB-125W

Technical Specifications

• Type: Type T Watertight Concrete Tight
• Hub Size: 1-1/4 inches
• Enclosure: NEMA 3S/IP66
• Connection Type: Push-On
• Material: Copper Free Aluminum
• Finish: Powder Coated
• Dimensions: 3.976 inches W x 4.53 inches D x 10.82 inches H
