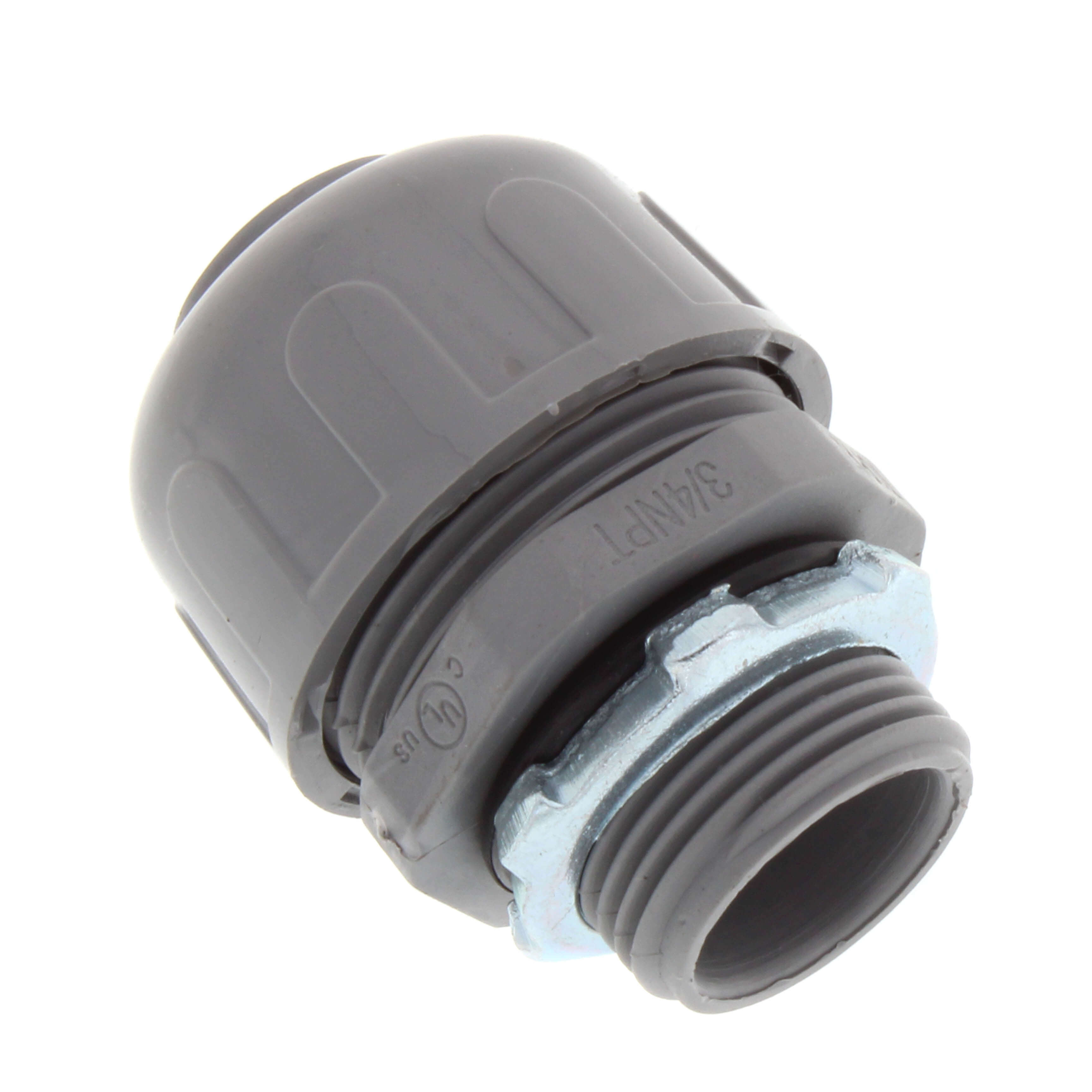

Southwire P472 Liquidtight Connector 3/4 inches Straight

Product Description

The SOUTHWIRE P472 liquidtight connector is fabricated from corrosion proof 6/6 nylon and is built to withstand extreme temperature fluctuations and harsh weather conditions, ensuring a secure connection. The nonmetallic construction offers flexibility and easy assembly avoids removal of the compression nut. It is suitable for wet and dry conditions.

• Easy Assembly without Having to Remove the Compression Nut 125 Degree
• Liquidtight, raintight, oiltight
• For flexible non-metallic liquidtight tubing

Product Highlights

The SOUTHWIRE P472 liquidtight connector is ideal for commercial, industrial, and residential applications. It is UL and CSA approved.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: P472
• Country of Origin: Unknown

Technical Specifications

• Approval: UL, CSA
• Manufacturer Name: Southwire
• Material: Nylon 6/6
• Product UPC: 751338215900
• Type: Straight
• Used On: Flexible Non-Metallic Liquidtight Tubing
• Size: 3/4"
• Angle: Straight
• Application: For flexible non-metallic Liquid tight tubing
• Standard & Approvals: UL 514B, E148716, US Federal Specification No. A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Trade Size: 3/4 in
• Use With: Flexible Non-Metallic Liquidtight Tubing
