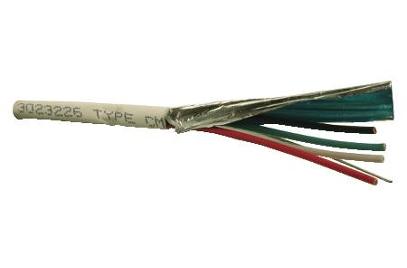

Southwire P40133-1C CU 300V HVAC Wire Shielded Thermostat Plenum Rated

Product Description

The Southwire P40133-1C thermostat wire is designed for thermostat control applications. This class 2 power-limited circuit cable is rated for up to three hundred volts and meets standards for low voltage applications, including HVAC and security systems. The wire complies with UL 1424 FPLP and meets flame test criteria according to NFPA 262 (UL 910) and CSA FT6.

• Class 2 power-limited thermostat wire
• Rated for 300 volts
• UL listed for type CL2P, CL3P, CMP

Product Highlights

The thermostat wire is suitable for both residential and commercial installations. Its plenum rating allows for use in air handling spaces, ensuring safety and compliance in building codes.

Product Information

Standard Information

• Conductor Size: 18 AWG
• Conductor Number: 2

Technical Specifications

• Conductor Strands: 7
• Diameter Over Conductor: 0.045 inch
• Insulation Thickness: 9 mils
• Approximate OD: 0.161 inch
• Copper Weight: 11 lbs/1000'
• Approx. Weight: 19 lbs/1000'
• DC Resistance at 25C: 6.669 ohms/1000'
• AC Resistance at 75C: 8.035 ohms/1000'
• Min. Bend Radius: 0.6 inch
• Spool Size: 500'
