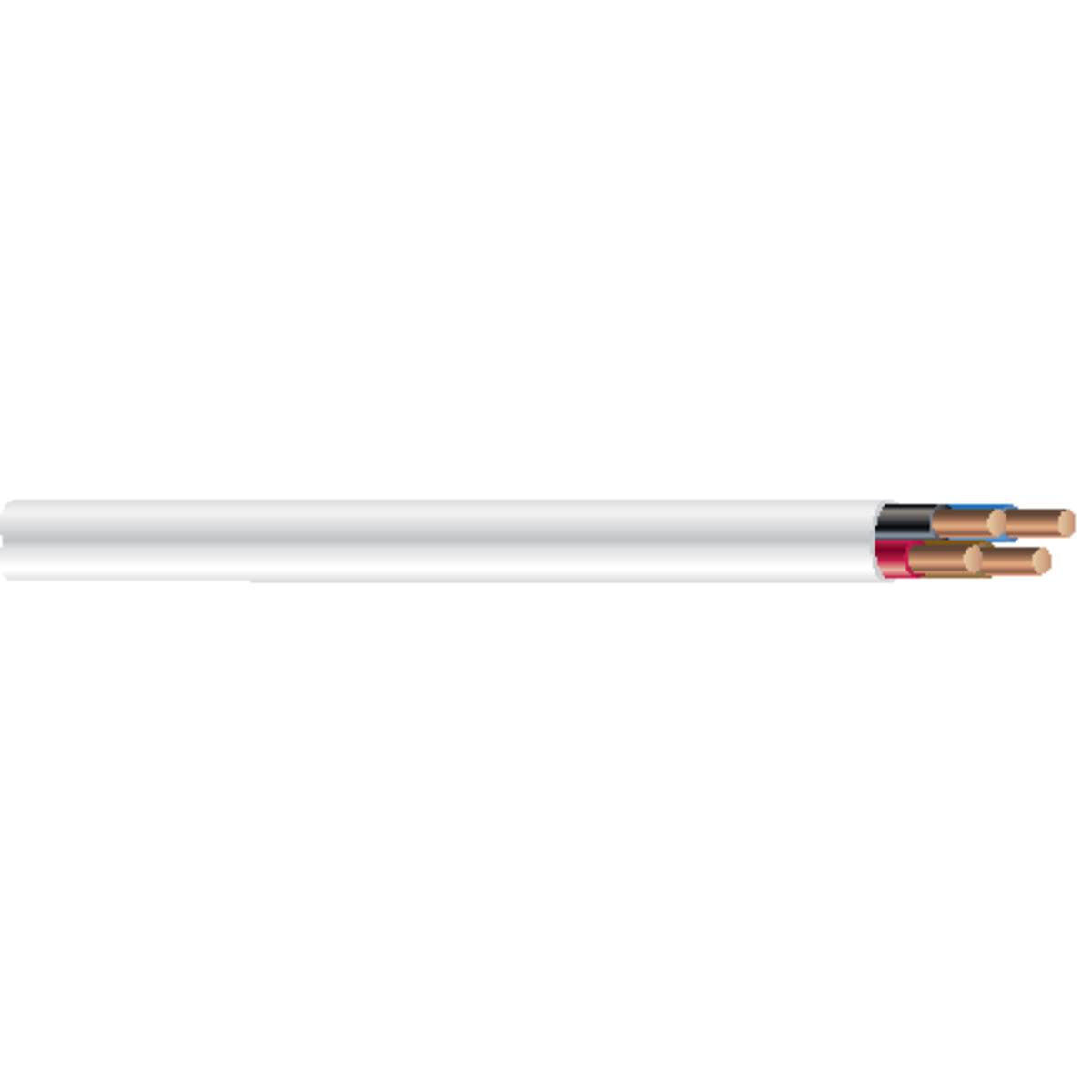

Southwire P40073-1A 18-7 CU 4/C OAS CMP/CL3P/FPLP PVC-LS 300 VAC 1000 ft

Product Description

The SOUTHWIRE P40073-1A is a 18 AWG, 4-conductor shielded plenum cable designed for remote control, signaling, and power-limited circuits per NEC Article 725. This cable features stranded bare copper conductors, LS-PVC insulation, and an aluminum foil shield with a 24 AWG tinned drain wire. It is suitable for security, sound, audio, speaker, public address, intercom, sound reinforcement, alarm, and access control applications. The cable has a 300 VAC voltage rating and is supplied in a 1000 ft length.

• Designed for remote control, signaling, and power-limited circuits per NEC Article 725.
• Features stranded bare copper conductors with LS-PVC insulation and an aluminum foil shield.
• Suitable for security, sound, audio, speaker, public address, intercom, and alarm systems.

Product Highlights

Low smoke PVC insulation and jacket for enhanced safety, meeting NFPA 262 flame test standards.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: P40073-1A
• Country of Origin: USA

Technical Specifications

• Conductor Size: 18 AWG
• Conductor Number: 4
• Conductor Construction: Stranded bare copper
• Conductor Strands: 7
• Diameter Over Conductor (in): 0.045
• Insulation Thickness (mils): 9
• Jacket Thickness (mils): 15
• Outside Diameter (in): 0.186
• Copper Weight (lbs/1000'): 21
• Approx. Weight (lbs/1000'): 33
• DC Resistance at 25C (ohms/1000'): 6.669
• AC Resistance at 75C (ohms/1000'): 8.035
• Min. Bend Radius (in): 0.7
• Standards: UL 1424, ASTM B3, ASTM B8, UL 13, UL 444, NFPA 262, ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Insulation Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Shield Type: Aluminum foil with 24 AWG tinned drain wire
• Rip Cord: Yes
• Jacket Material: Low Smoke Polyvinyl Chloride (LS-PVC)
• Cable Type: CMP/CL3P Shielded
• Cable Length: 1000 ft
• Voltage Rating: 300 VAC
• Jacket Color: White
• Temperature Rating: 75 deg C
• Item Type: Multi-Conductor Security Cable
• Product Type: Communication Cable
