Southwire P20270-1B 22-7 Cu 4/C OAS CMP/CL3P/FPLP PVC-LS 300V 1000 ft

SOUTHWIRE
Brand: SOUTHWIRE
SKU: P20270-1B
Availability: In Stock

Ships same day if ordered by 12 pm
$485.68
$485.68
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

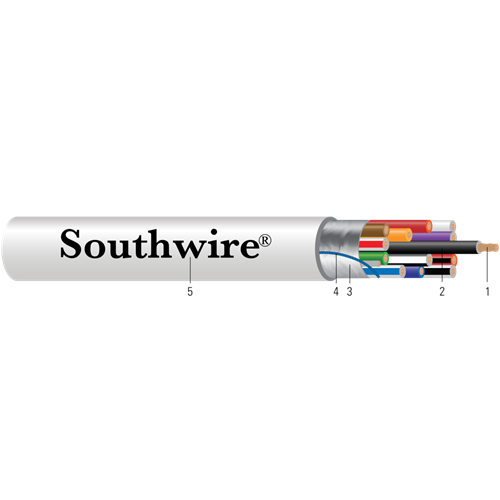

The SOUTHWIRE P20270-1B cable is designed for remote control, signaling, and power-limited circuits as per NEC Article 725. This 22 AWG 4-conductor stranded bare copper cable features Low Smoke Polyvinyl Chloride (LS-PVC) insulation and an aluminum foil shield with a 24 AWG tinned drain wire. It is suitable for security systems, sound and audio applications, public address systems, intercoms, and alarm and access control circuits. The cable includes a rip cord for easy jacket removal.

  • Designed for Remote Control, Signaling, and Power-Limited circuits per NEC Article 725.
  • Suitable for communication circuits per NEC Article 800 (for 22 AWG - 16 AWG sizes).
  • Applicable in security, sound, audio, speaker, public address, intercom, alarm, and access control systems.

Product Highlights

Plenum-rated cable with LS-PVC jacket, stranded copper conductors, and aluminum foil shield for diverse low-voltage applications.

Product Information

Standard Information

  • Brand: SOUTHWIRE
  • Manufacturer Part Number: P20270-1B
  • Country of Origin: USA
Technical Specifications
Cable Type
CL3P/FPLP/CMP
Conductor Size
22 AWG
Number of Conductors
4
Conductor Type
CU
Conductor Strands
7
Diameter Over Conductor (in)
0.022
Insulation Thickness (mils)
5
Jacket Thickness (mils)
15
Approximate Outer Diameter (in)
0.142
Copper Weight (lbs/1000ft)
9
Approximate Weight (lbs/1000ft)
17
DC Resistance at 25C (ohms/1000ft)
16.723
AC Resistance at 75C (ohms/1000ft)
20.150
Inductive Reactance (ohms/1000ft)
0.030
Jacket Color
White
Conductor Material
Stranded bare copper per ASTM B3 and B8
Insulation Material
Low Smoke Polyvinyl Chloride (LS-PVC)
Shield Material
Aluminum foil shield with 24 AWG tinned drain wire
Rip Cord
Rip cord for ease of jacket removal
Jacket Material
White Low Smoke Polyvinyl Chloride (LS-PVC)
Standards
UL 1424, ASTM B3, ASTM B8, UL 13, UL 444, NFPA 262
Temperature Rating
75°C
Voltage Rating
300 Volt
Construction
Cable
Product Type
Power Limited Circuit Cable
Cable Length
1000 feet
