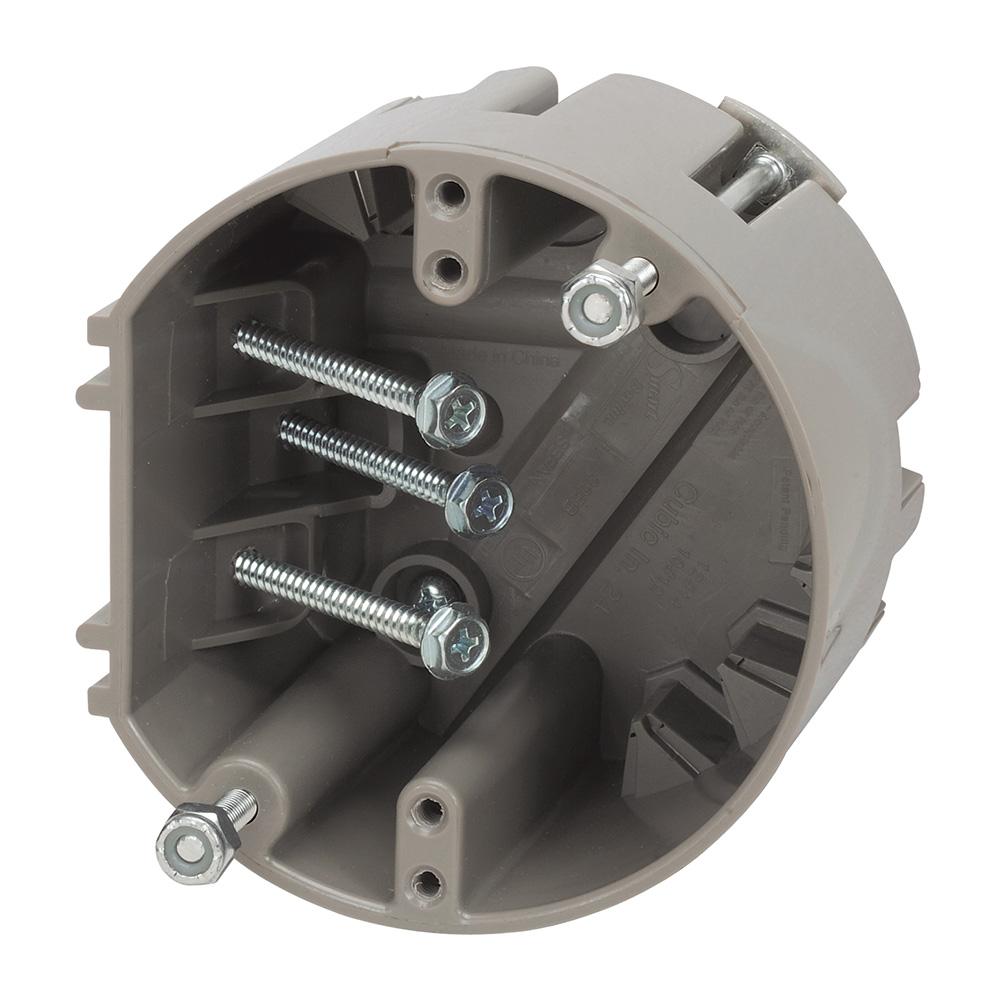

Southwire MSBFAN Madison Electric Smart Box Ceiling Fan and Fixture Box 24 cu-in

Product Description

The Southwire MSBFAN is designed to support ceiling fans and light fixtures with a robust UL listed rating for fifty-pound support. This nonmetallic ceiling box includes two one-inch #8 fixture support screws and offers extra depth for enhanced wire capacity.

• Rated for fifty-pound light fixture support
• Extra deep design for added wire capacity
• Includes six knockouts for versatile installation

Product Highlights

This product is ideal for both new installations and retrofits, providing flexibility for various applications. The Smart Box is side beam mounted, utilizing three two-inch #10 hex head screws, making it suitable for diverse job situations.

Product Information

Standard Information

• Brand: Southwire
• Part Number: MSBFAN

Technical Specifications

• Material: Polycarbonate
• Capacity: 24 cu-in
• Number of Gangs: 1
• Number of Knockouts: 6
• Knockout Size: 1/2 in
• Mounting Type: Ceiling/Joist
• Dimensions: 3.82 in W x 3.82 in D x 4 in H
