Southwire MEIBB Intersystem Bonding Bridge Connector 6 to 4 AWG Copper Main Up to 6 10 to 14 SOL or STR

Product Description

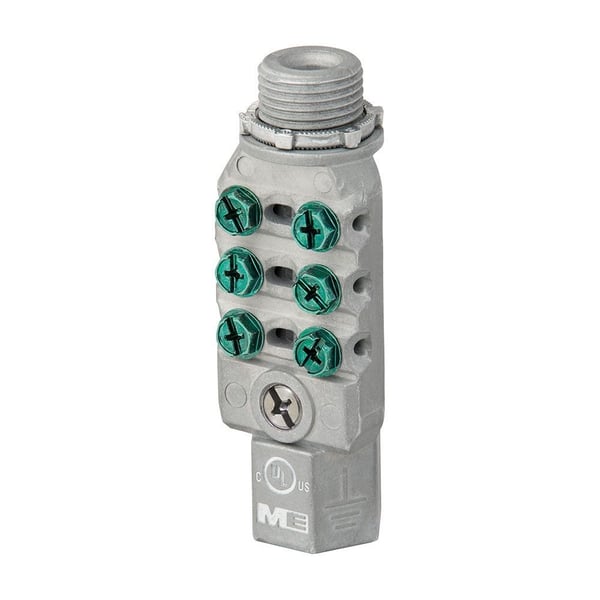

The Southwire MEIBB is an Intersystem Bonding Bridge Connector designed for use with #6 to #4 bare copper main wires and up to six #10 to #14 solid or stranded conductors. This connector offers a reliable method for grounding and bonding in electrical systems.

• Provides dependable grounding for electrical systems.
• Gangable design for easy installation and protection.
• Includes six terminating points to meet NEC requirements.

Product Highlights

The MEIBB allows simple mounting to enclosures, conduit bodies, and inline with conduit, helping to secure the main ground conductor and isolate it from communication lines.

Product Information

Standard Information

• Brand: Southwire
• Manufacturer: Southwire

Technical Specifications

• Catalog Number: MEIBB
• UPC: 784297020568
• Country of Origin: China
• Warranty: One year limited warranty
• Application: Grounding and bonding for electrical systems
• Special Features: Gangable design, six terminating points, mounts securely
• Material: Die Cast Zinc
• Finish: Galvanized
• Dimensions: 3.75 x 1.375 x 1.063 inches
