Southwire MADMH8110 MH8110 Cable Dispenser, Floor-Stud Mtd

Product Description

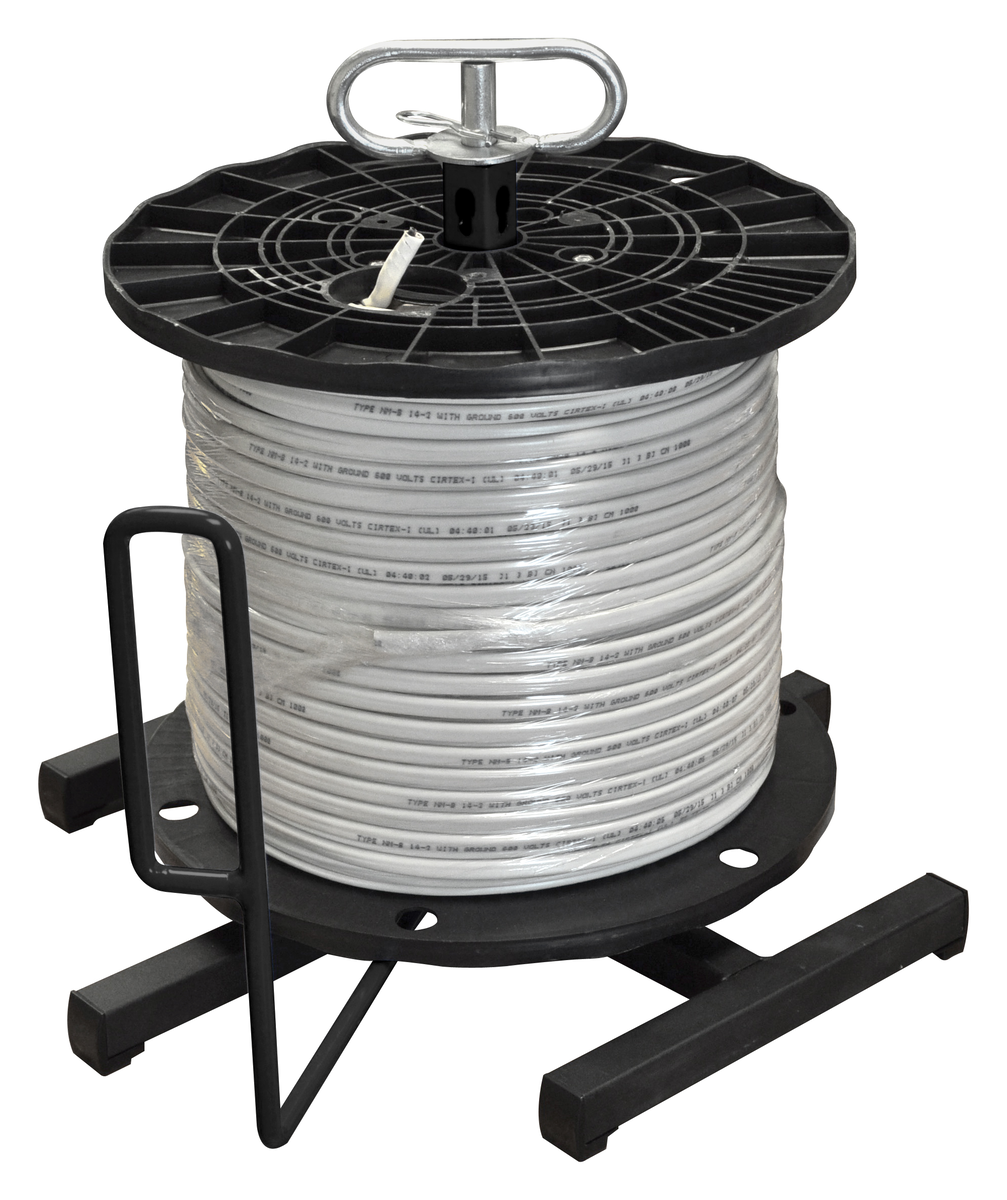

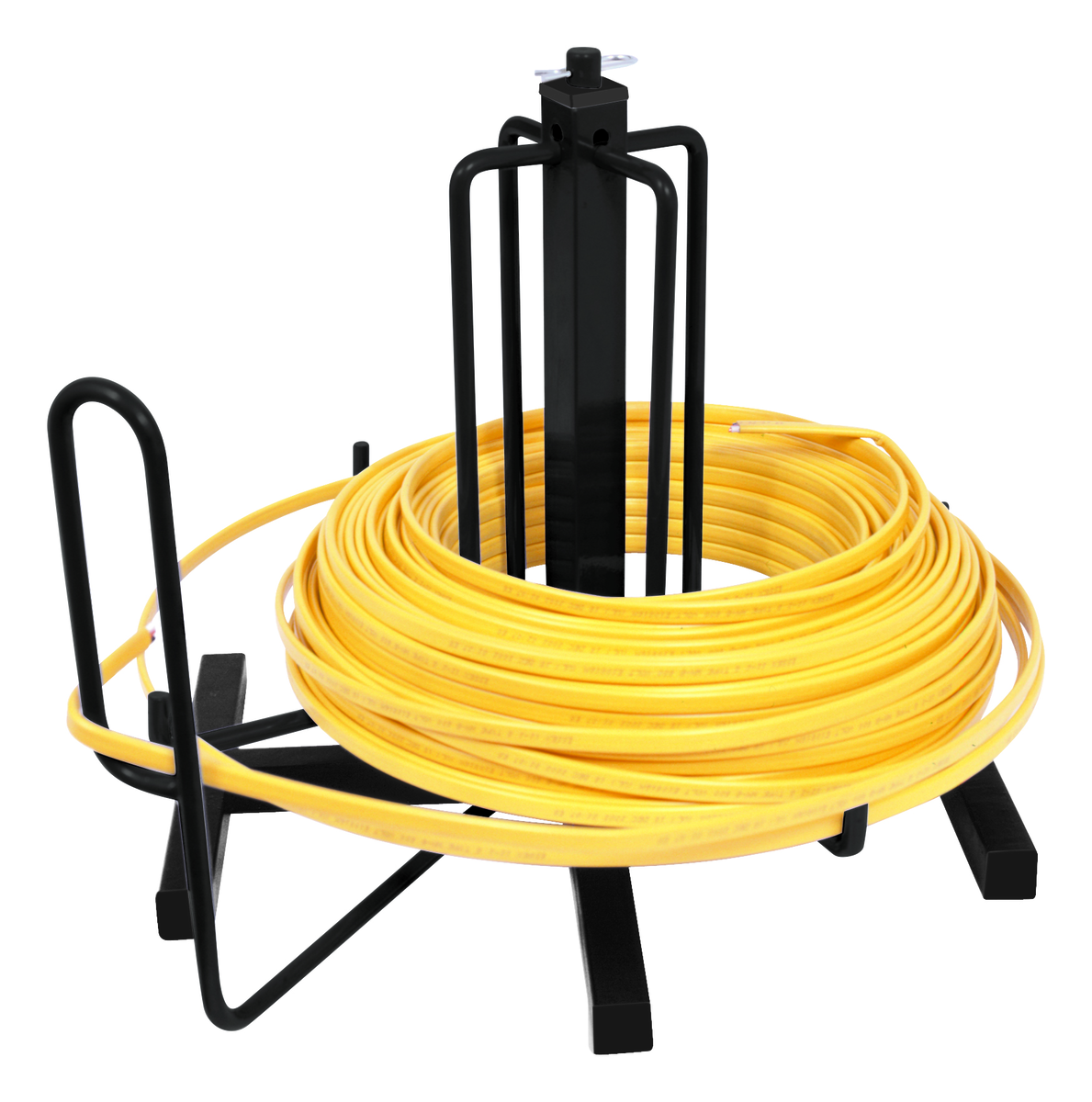

The SOUTHWIRE MADMH8110 cable dispenser includes floor and stud mounting brackets and supports 1000' reels. The swivel eyelet prevents tangles while paying out cable, and a wide base keeps the load stable. It features square-tube steel with a premium powder coat finish and a convenient carry handle.

• Includes 2 brackets to mount to floor or stud
• Square-tube steel with premium powder coat finish
• Convenient carry handle now included

Product Highlights

This cable dispenser supports up to 100 lbs. with reel (with arm 50 lbs.) and accommodates 5.5'' minimum inside coil diameter and 17'' minimum outside coil diameter.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: MADMH8110

Technical Specifications

• UPC #: 784297021749
• Product Height: 9.4 inch
• Product Width: 5.7 inch
• Capacity: 5.5'' minimum inside coil diameter 17'' minimum outside coil diameter
• Material: Steel
• Overall Width: 19-1/4"
• Overall Height: 17"
• Load Capacity: 50 lbs
