Southwire LR1CG rigid conduit body 1/2 inch LR type 90 degree

Product Description

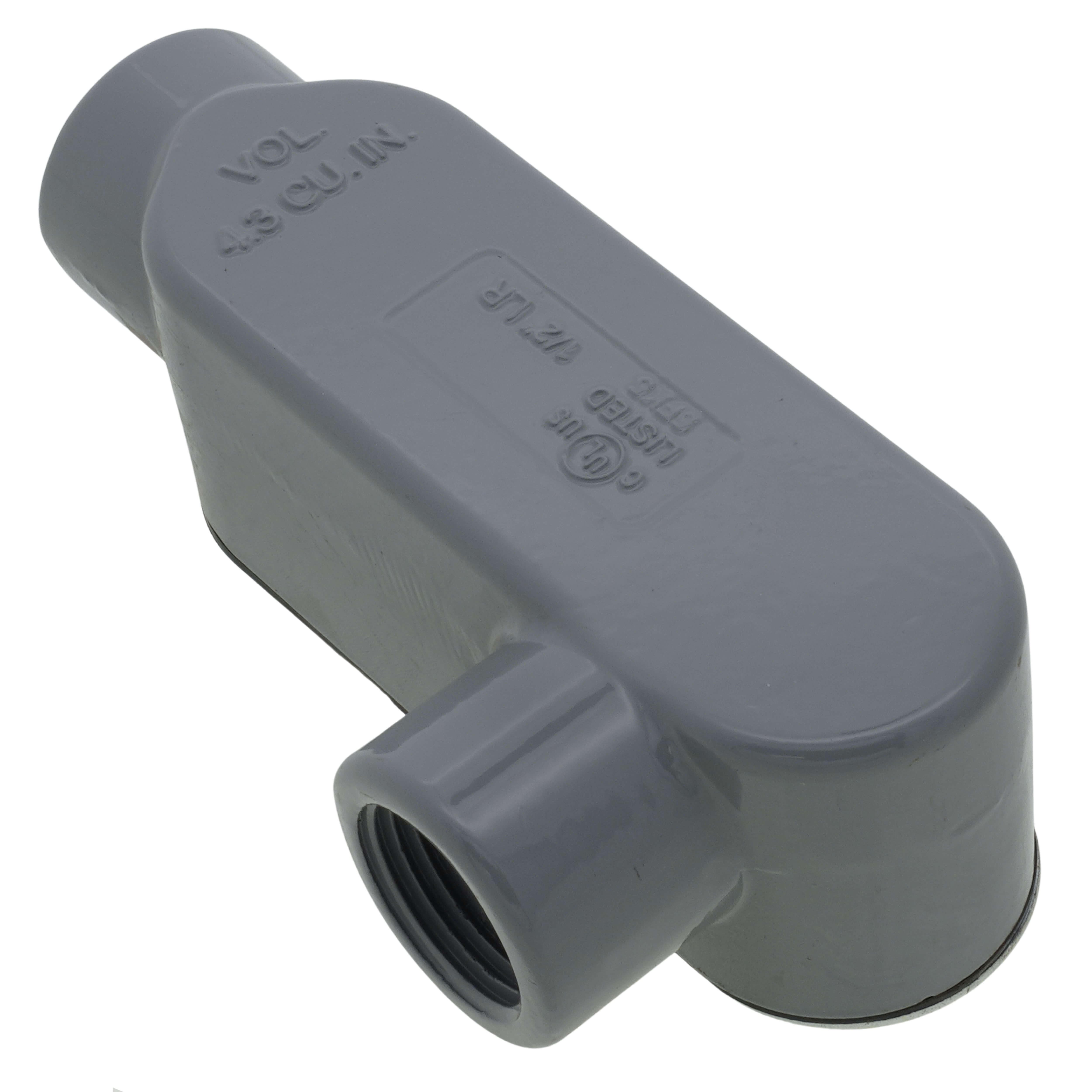

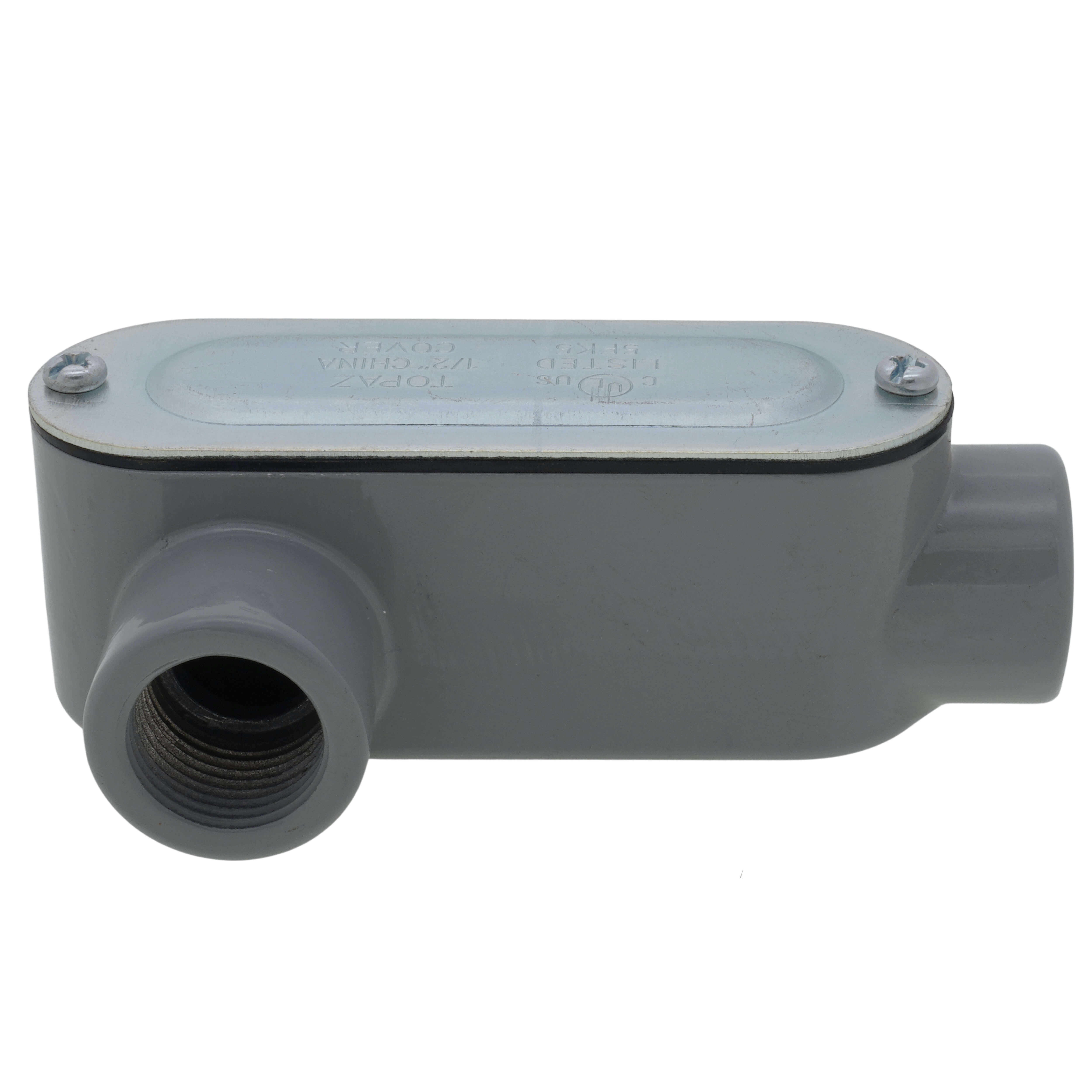

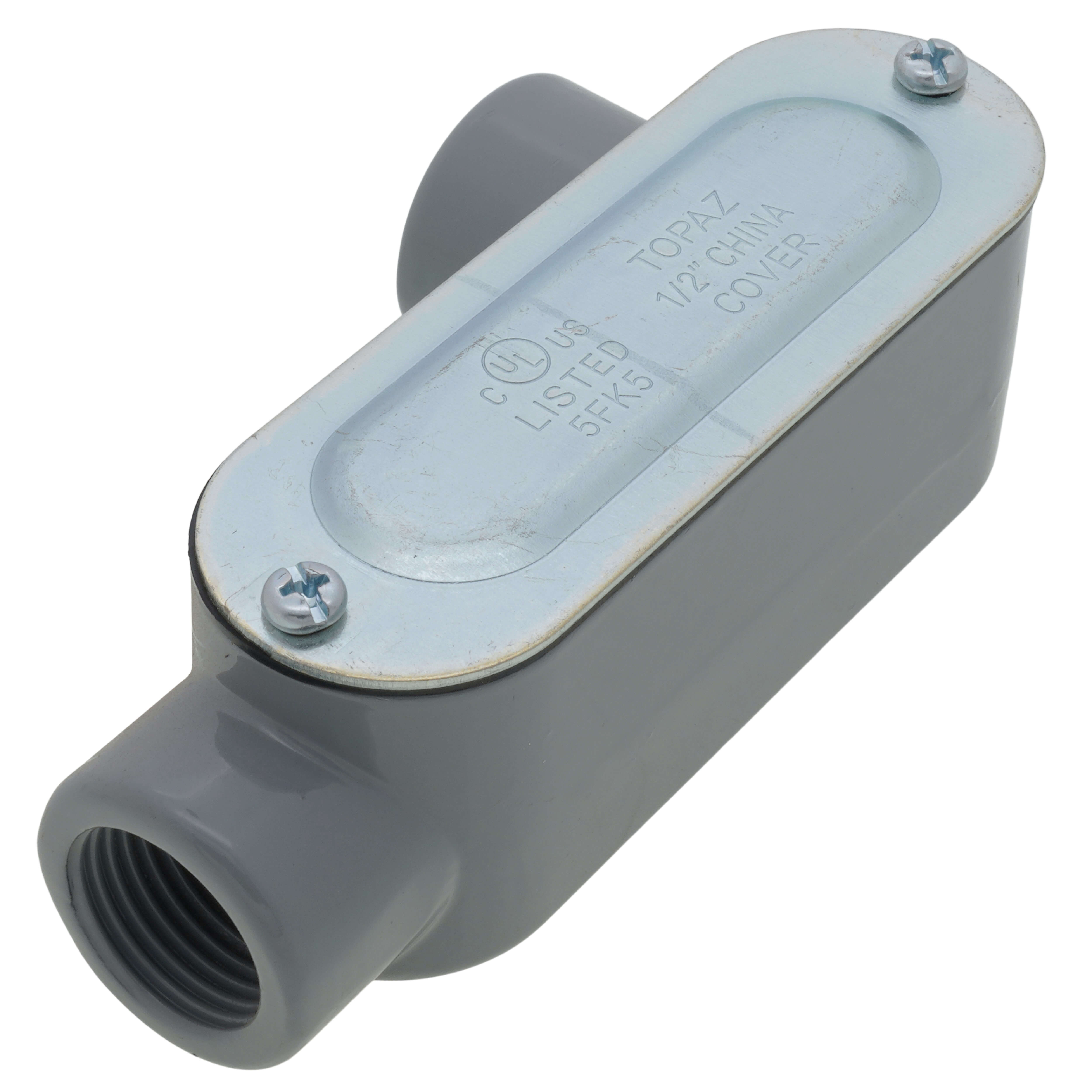

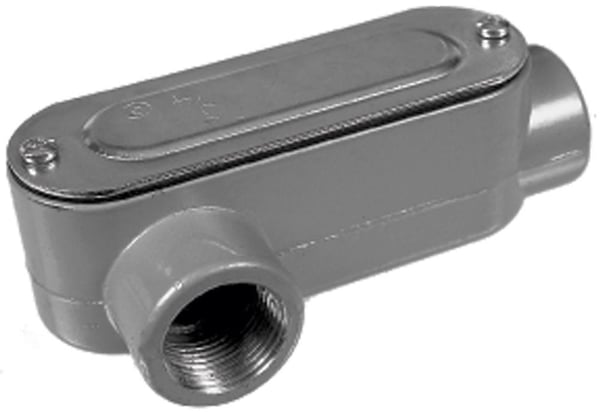

The SOUTHWIRE LR1CG Rigid Threaded LR type Conduit Body, with Cover and Gasket, is manufactured from copper-free aluminum. This conduit body permits 90-degree right bends in conduit systems, providing access for splicing and correcting conduit run directions. It features smooth, rounded integral bushings for conductor insulation protection, ensuring excellent ground continuity and corrosion resistance. The lightweight aluminum construction, cover, and watertight gasket ensure weatherproof installations.

• Provides access to conductors for pulling, splicing, and maintenance.
• Suitable for use in concrete and wet locations.
• Features a threaded LR type design with cover and neoprene rubber gasket.

Product Highlights

UL and CSA approved, copper-free aluminum construction for rigid conduit systems.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LR1CG
• Country of Origin: India

Technical Specifications

• Access Opening: Right Side
• Certifications/Standards: UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Configuration: LR
• Cover Type: Stamped Steel
• Hub Location: 90 Degree
• Hub Size: 1/2 Inch
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number Of Hubs: 2
• Used On: Rigid Conduit
• Product Type: Conduit Body
• Enclosure: NEMA FB-1
• Mount: Wall Mount
• Conduit Body Type: LR 1-Conductor
