Southwire LLLA150CB Ll Aluminum Conduit Body 1-1/2 in

Product Description

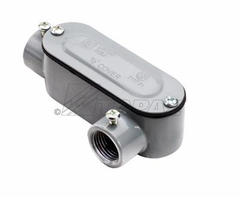

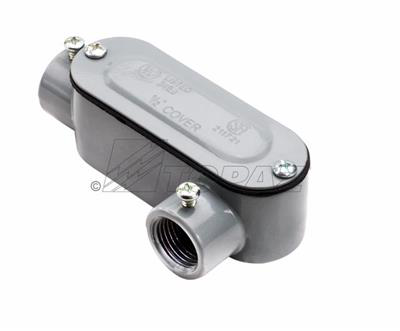

The SOUTHWIRE LLLA150CB is a 1-1/2 inch LL type conduit body manufactured from corrosion-resistant aluminum, complete with a domed cover and gasket. LL type conduit bodies feature one hub on the end and one on the left side, allowing electricians to change or correct the direction of a conduit run while maintaining easy access for wire pulling and splicing. The domed cover design adds interior wiring space above the standard body volume. Smooth, rounded integral bushings in the hubs protect conductor insulation from abrasion. Rated NEMA FB 1 for wet locations, this conduit body is intended for use with threaded rigid metal conduit only.

This conduit body is suited for commercial and industrial electrical installations where conduit runs must change direction in tight or exposed locations. It is installed by licensed electricians in applications requiring durable, corrosion-resistant fittings, including outdoor, damp, and wet location raceways. The included cover and gasket provide a sealed enclosure appropriate for wet-rated environments. The lightweight aluminum construction reduces load on conduit supports compared to iron alternatives.

Key Features

• LL type configuration with end hub and left-side hub for directional conduit changes
• Domed cover included, providing additional interior wiring space
• Gasket included for NEMA FB 1 wet location rating
• Smooth, rounded integral bushings protect conductor insulation in hubs
• Corrosion-resistant aluminum construction for lightweight durability
• UL listed for use with threaded rigid metal conduit only

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch threaded rigid metal conduit systems in wet or dry locations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before opening or working within any conduit body. This fitting is rated for threaded rigid metal conduit only and must not be used with EMT or other non-threaded conduit types. Verify that the gasket is properly seated under the cover to maintain the wet location rating.

Technical Specifications

• Trade Size: 1-1/2 inches
• Type: LL
• Material: Aluminum
• Wet Location Rating: NEMA FB 1
• Compatible Conduit: Threaded rigid metal conduit only
• Includes: Cover and gasket
• Listing: UL Listed
• UPC: 751338837782

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LLLA150CB
