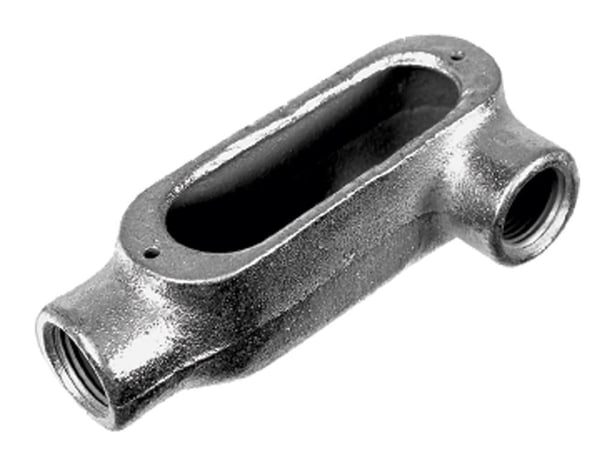

Southwire LL6M rigid conduit body 2 inch 90 degree

Product Description

The Southwire LL6M is a rigid conduit body designed for electrical wiring installations. This Type LL conduit body, constructed from zinc-plated malleable iron, provides a 90-degree access opening on the left side for conductors. It features two 2-inch NPT taped hubs for threaded installation, suitable for use with rigid conduit and in concrete. Its robust design allows for pulling, splicing, and maintenance of electrical wires within conduit systems.

• Provides access to conductors for pulling, splicing, and maintenance.
• Features NPT taped hubs for secure, threaded installation.
• Suitable for use in concrete applications.

Product Highlights

Durable malleable iron rigid conduit body with 90-degree access for electrical conductor management.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LL6M
• Country of Origin: India

Technical Specifications

• Access Opening: Left Side
• Approval: UL, CSA
• Configuration: LL
• Hub Location: 90 Degree
• Hub Size: 2 Inch
• Installation: Threaded
• Material: Zinc Plated Aluminum Enameled Malleable Iron
• Number Of Hubs: 2
• Used On: Rigid Conduit
• Cubic Inches: 73 cu-in
• Connection Type: FNPT
• Mount Type: Wall Mount
• Flexibility: Rigid
