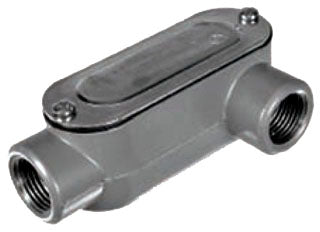

Southwire LL6CG Rigid Conduit Body

Product Description

Southwire LL6CG is a rigid conduit body designed for access to conductors. The LL6CG model features a cover and gasket, made from die-cast aluminum. It is suitable for electrical applications requiring a durable and reliable conduit connection.

• Access opening on the left side.
• UL and CSA approved for safety.
• Two hubs for versatile installation.

Product Highlights

This conduit body provides essential access to conductors for maintenance, pulling, or slicing.

Product Information

Standard Information

• Manufacturer: Southwire
• UPC: 751338210912

Technical Specifications

• Type: LL 3-Conductor
• Hub Size: 2 Inch
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Dimensions: 10.134 in L x 3.81 in W x 3.335 in H
• Installation: Threaded
• Number of Hubs: 2
• Enclosure: NEMA FB-1
• Approval: UL, CSA
