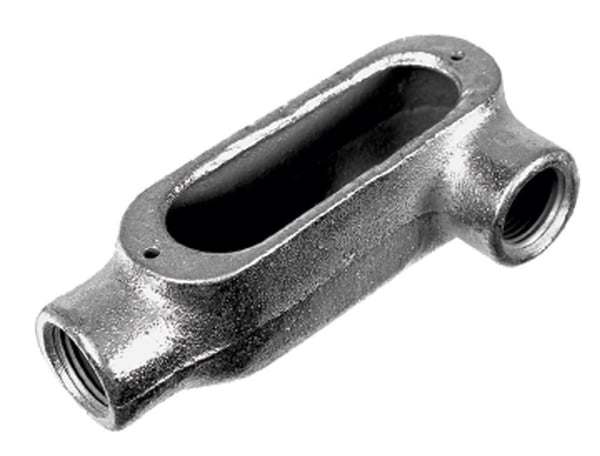

Southwire LL3M Type LL Conduit Body 1 inch Hub 12.5 cu-in

Product Description

The SOUTHWIRE LL3M is a Type LL conduit body designed for electrical wiring installations. This 1-inch hub, 12.5 cu-in malleable iron conduit body features a zinc-plated finish for durability and corrosion resistance. It is suitable for wall mount applications, providing a secure enclosure for electrical conductors and facilitating changes in direction or access for splices and taps in conduit runs.

• Constructed from durable malleable iron with a protective zinc-plated finish.
• Features a 1-inch hub and 12.5 cubic inch volume for electrical conductor management.
• Equipped with NPT tapered hubs for reliable threaded connections.

Product Highlights

Durable malleable iron conduit body with zinc plating, ideal for wall-mounted electrical applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LL3M
• Country of Origin: India

Technical Specifications

• SKU: 326738
• Manufacturer Part Number: LL3M
• Brand: Southwire - Topaz
• Manufacturer: Southwire Company
• Hub Size: 1 in
• Number of Hubs: 2
• Volume: 12.5 cu-in
• Connection Type: FNPT
• Mounting Type: Wall Mount
• Material: Malleable Iron
• Finish: Zinc Plated
• UPC Code: 751338211605
