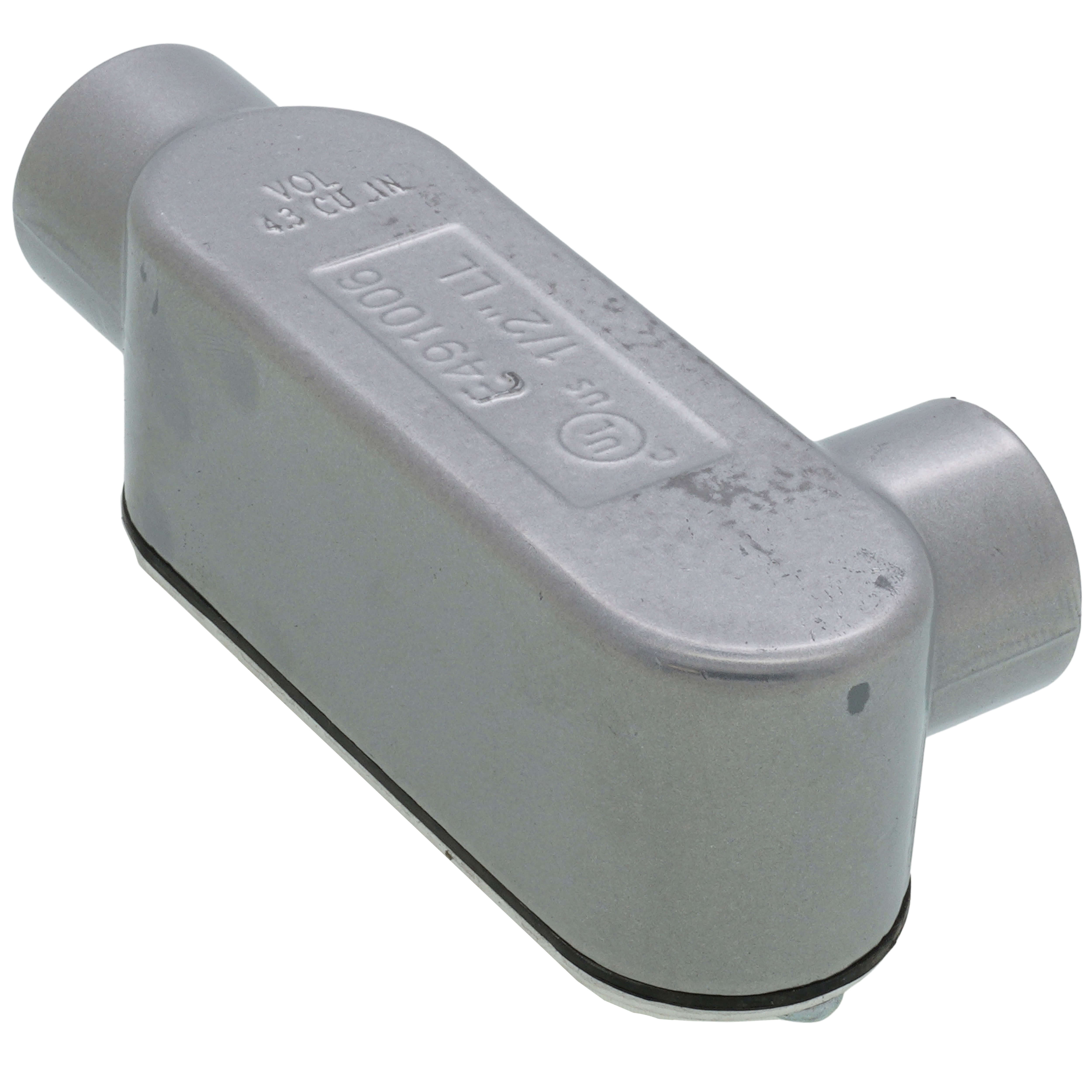

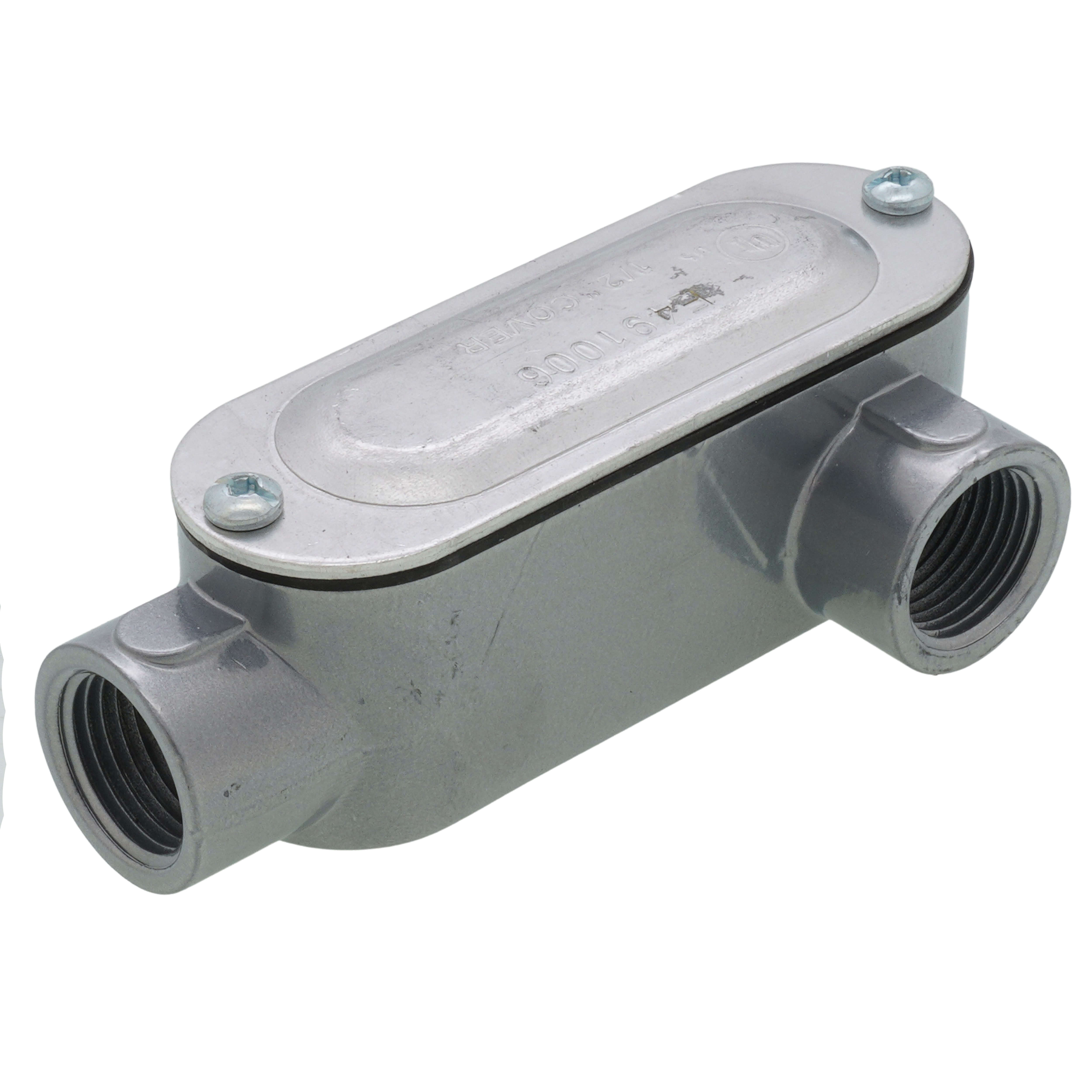

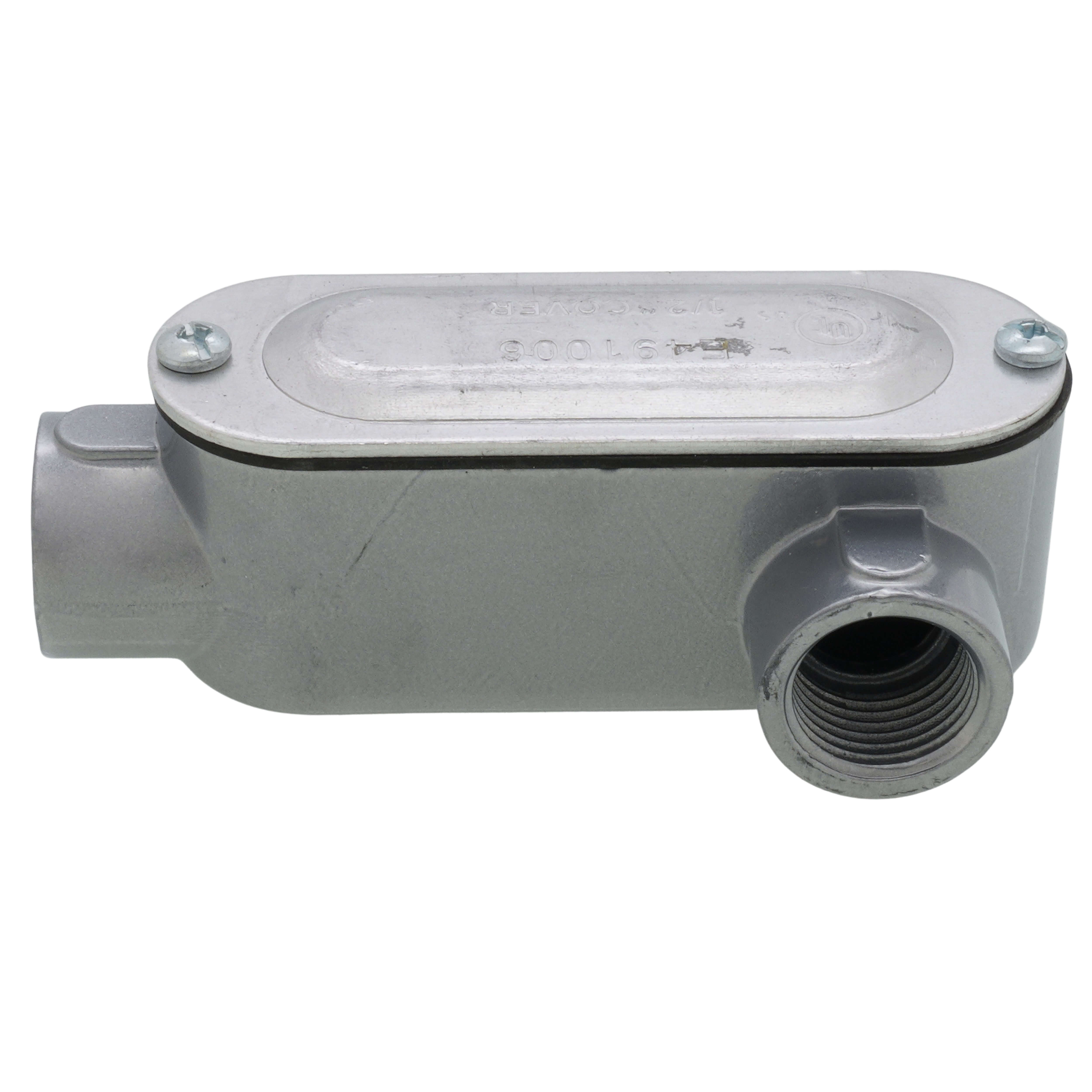

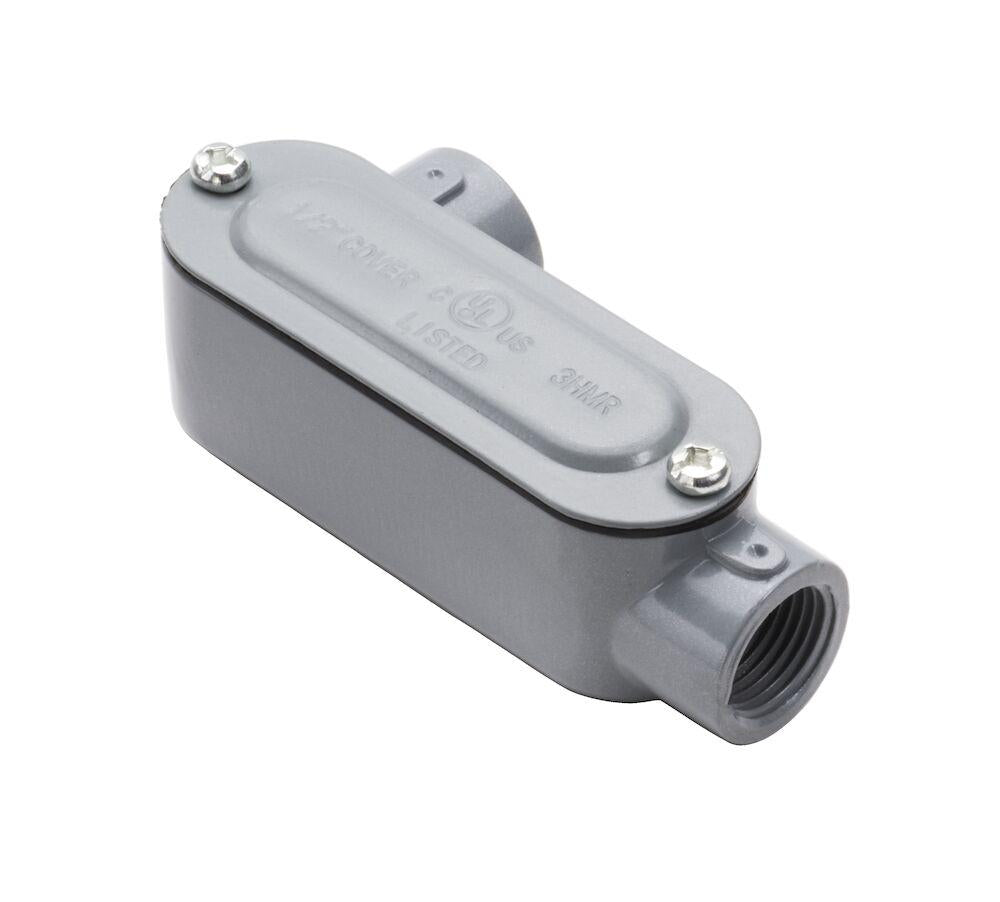

Southwire LL1CG Rigid Conduit Body 1/2 Inch LL

Product Description

The Southwire LL1CG is a Rigid Conduit Body designed for electrical conduit systems. This LL type conduit body, made from die-cast copper-free aluminum, provides access to conductors for pulling, splicing, and maintenance. It features a 1/2 inch hub size and a 90-degree hub location, allowing for left bends in conduit runs. The unit includes a stamped steel cover and a neoprene rubber gasket, ensuring weatherproof installations. It is suitable for use in concrete and wet locations.

• Provides access to conductors for pulling, splicing, and maintenance.
• Features a threaded LL type design with NPT tapered hubs, cover, and gasket.
• Constructed from copper-free aluminum die-cast, suitable for concrete and wet locations.

Product Highlights

Die-cast copper-free aluminum LL type conduit body with cover and gasket, designed for 90-degree left bends and conductor access in rigid conduit systems.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: LL1CG
• Country of Origin: India

Technical Specifications

• Access Opening: Left Side
• Approval: UL, CSA
• Configuration: LL
• Cover Type: Stamped Steel
• Hub Location: 90 Degree
• Hub Size: 1/2 Inch
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number Of Hubs: 2
• UPC: 751338210417
• Used On: Rigid Conduit
• Product Type: Conduit Body
• Connection: 1/2 FNPT
• Mounting: Wall Mount
• RoHS Compliance: No
• UNSPSC: 39131708
